Dimplex Revillusion RBF36P - 120 V Wall Switch Wiring

12 www.dimplex.com

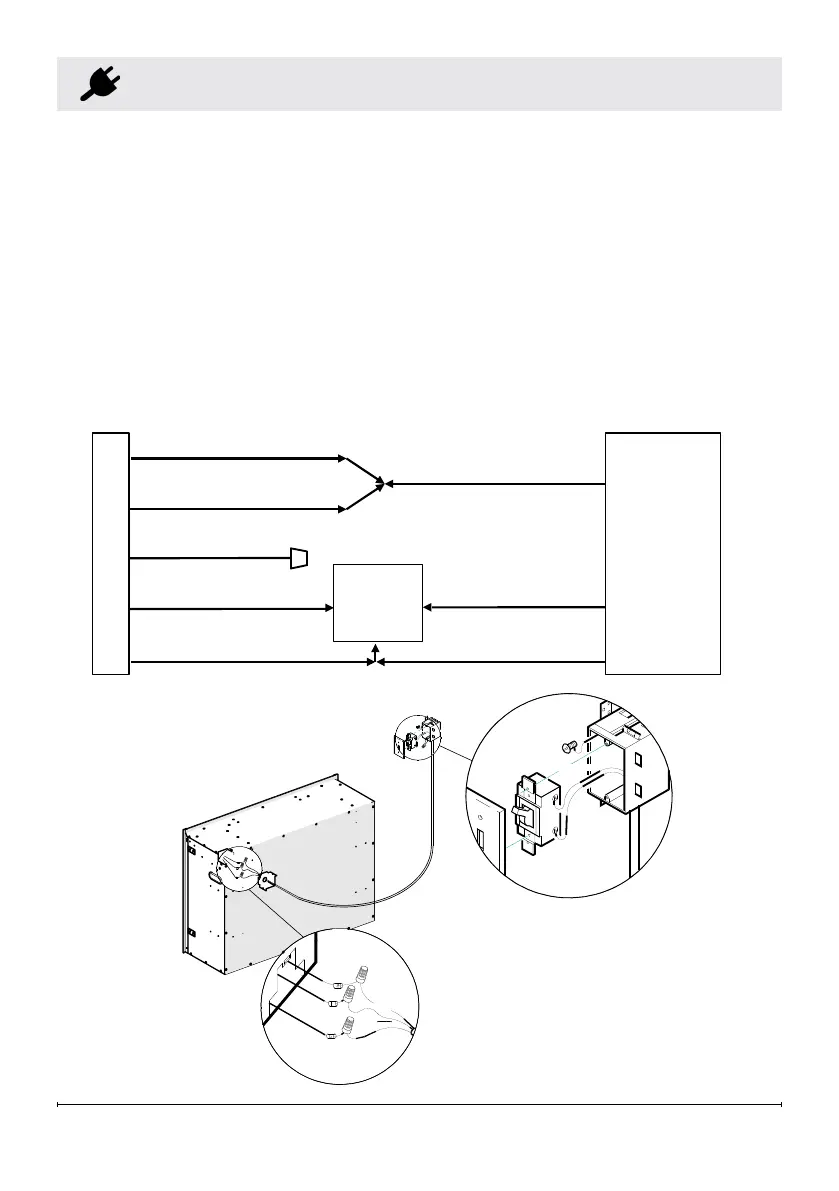

Wall Switch (120 V)
NOTE: Use a single pole, single
throw (On/Off) wall switch that is rated
for a minimum of 15 A.
!
Electrical
Before installing the wall switch:
• Connect a 2-conductor wire with
ground (3 wires total) from the
power supply panel to the main
switch wall box.
• Connect a 2-conductor wire with
ground (3 wires total) from the main
switch wall box to the junction box
on the built-in electric firebox.
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
BREAKER
PANEL
RED - L2
BLACK - L1
GROUND - G
WALL
SWITCH
BLACK - L1
GROUND - G
WHITE - N
BLUE - NH
WHITE - N
