Installation English
6. Installation
6.1 Remove packaging material and dispose of it cor-
rectly.
NOTE
Plastic bags should be kept away from small children.
There is a risk of suffocation.

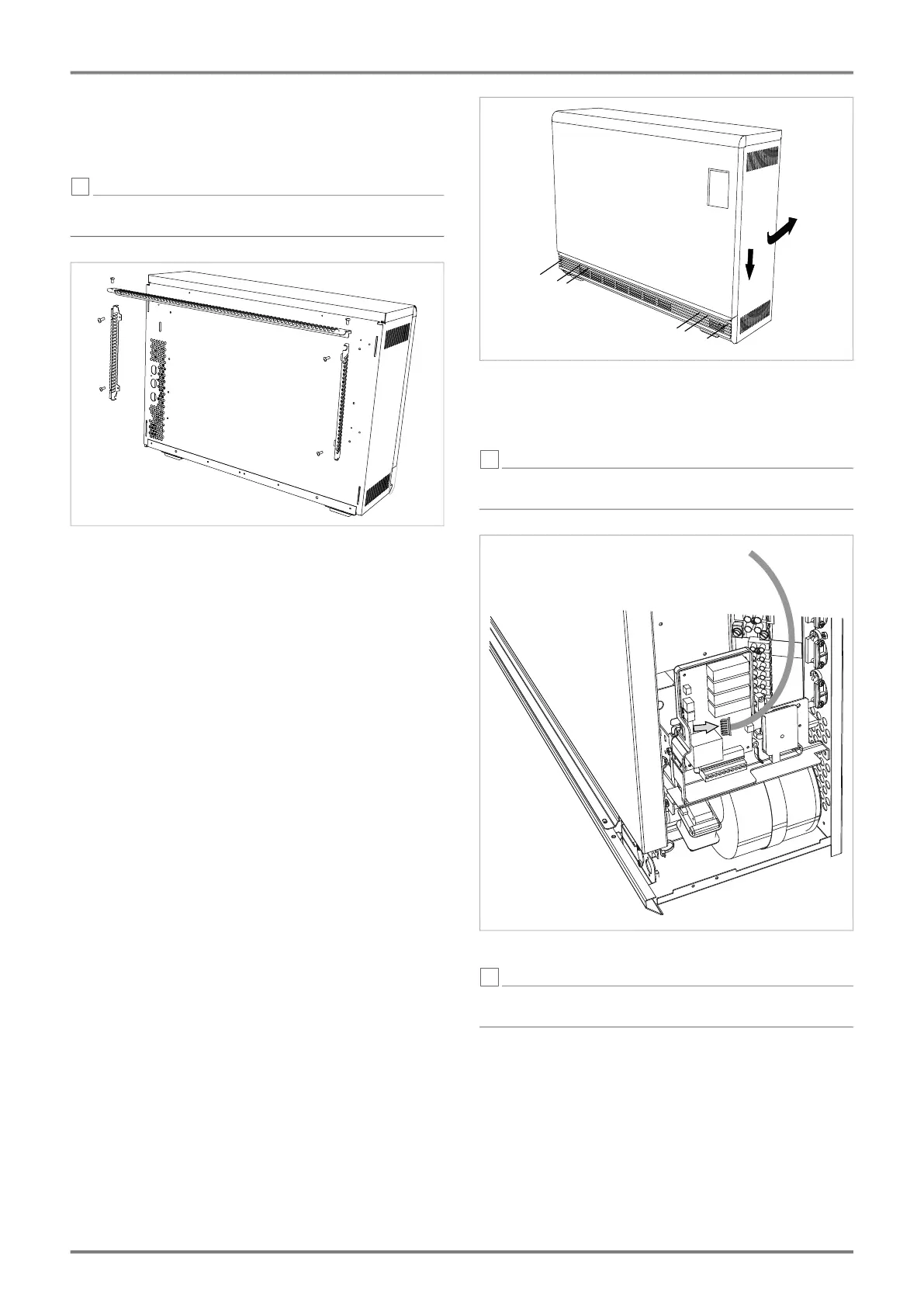

6.2 Fix the two lateral wall battens on the rear of the
device. Screw the upper wall batten to the two lateral
wall battens.
6.3 Remove the screws (A) for the side panels. Push
the side panels down (1) and swivel them out (2). After
removing the side panels, loosen the fixing screws (B)
for the front panel. Do not loosen the screws C.
NOTE
Before removing the front panel, disconnect the oper-
ating panel connection cable on the charge controller.
6.4 Disconnect the connection cable.
NOTE
Lay the front panel and the side panels on a soft, clean
surface to prevent damage to the paint.
