Operating panel English
3. Operating panel

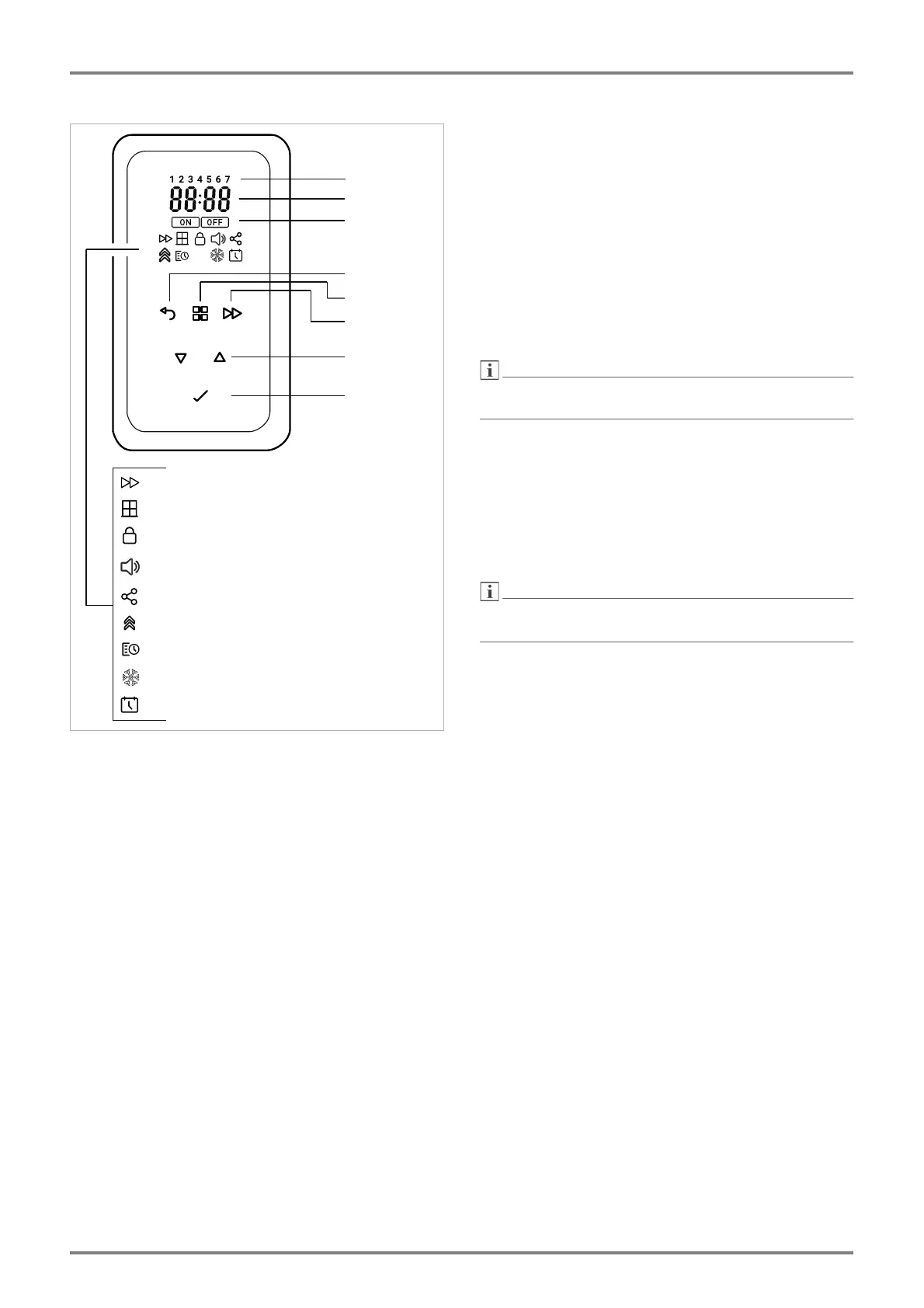

3.1. Key functions
MENU
Auxiliary heating on/off
Timer (week program)
Frost protection temperature 7° C
Set the time and date
BACK
Return to the previous program item
Keys
Used to navigate through the menu and to change the
setting values.
ENTER
Saving settings.
EXTENDED
Call up the extended menu.
For the functions, see the description for the ex-
tended menu.
3.2. Display
The display lights up automatically when you approach
the operating panel. If no changes are made for a pro-
longed period, the display switches off.
The user main menu is always shown first.
3.3. Menu types
Simple menu
Basic settings such as:
specification of the room temperature,
adjustment of the charge quantity,
room-dependent charging.
Only the MENU and
keys are shown in the user
main menu
Main menu
Setting such as:
activating an (optional) auxiliary heating,
timer week program,
frost protection setting 7° C,
setting the clock (time and date).
In the main menu, the ENTER, BACK and
keys are
also shown.
Extended menu
Optional settings, such as:
window monitoring,
key tone,
wireless connection (currently without function),
adaptive startup,
reset to factory settings.
Installer menu
System-specific settings, such as:
operation via central charge control,
operation with external room temperature con-
troller,
integrating an optional auxiliary heating,
other options.
Weekday
Setting
On/Off
Back
Menu
Extended
Setting keys
Enter key
Auxiliary heating
Window monitoring
Key lock
Connectivity
Timer week program
Frost protection
Date and time
Key tone
Extended menu
