Commissioning English

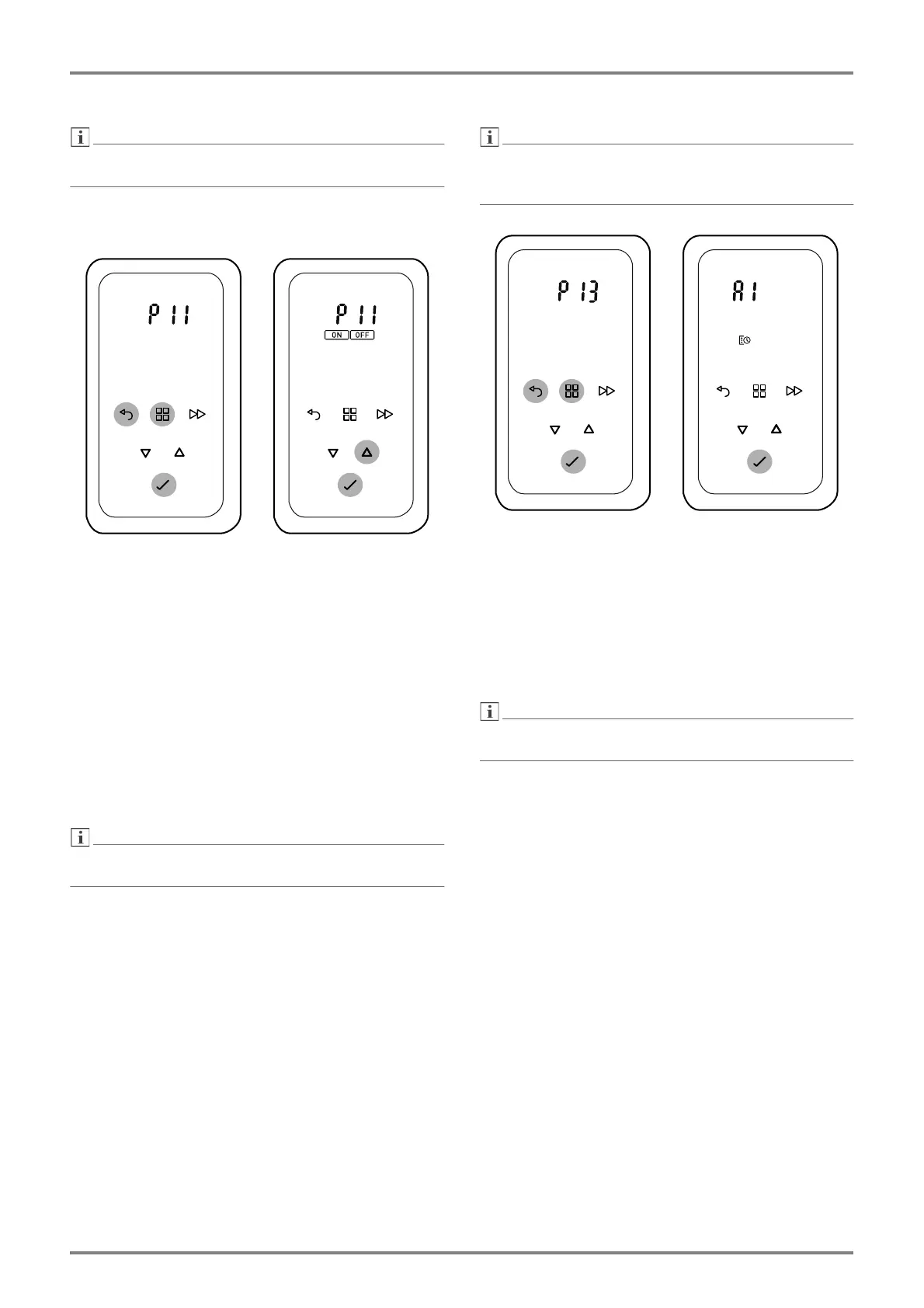

P11 - auxiliary heating Yes/No
NOTE
The auxiliary heating is available as an accessory and
is not installed at the factory.
Enter whether operation is to take place with or with-
out auxiliary heating.
 Call up the installer menu.
 Confirm the PIN code four times with the ENTER
key. Display P9 flashes.
 Use the
 
keys to select P11. Display flashes.
 Press the ENTER key. ON flashes.
 Operation with auxiliary heating:
Press the ENTER key. Setting is complete.
Operation without auxiliary heating:
Use the
 
keys to select OFF. OFF flashes.
Press the ENTER key. Setting is complete.
P12 - release signal
Function for future charge release directly on the stor-
age heater. Currently without function.
NOTE
This menu item may be shown or not shown depend-
ing on the version. Do not change the setting values!
P13 - release manual
NOTE
Only required if there is a continuous voltage on the
terminals L1, L2, L3 and no release takes place by the
energy supplier or grid operator.
 Call up the installer menu.
 Confirm the PIN code four times with the ENTER
key. Display P9 flashes.
 Use the
 
keys to select P13. Display flashes.
 Press the ENTER key. A1 flashes.
 Press the ENTER key. The hours display flashes.
 Use the
 
keys to set the hour for the start of
the release.
NOTE
When entering the release times, always start with the
lowest hour, e.g. 00:00.
Example:
The release times 22:00 to 06:00 and 14:00 to 16:00
should be set.
 Set A1 ON to 00:00 and A1 OFF to 06:00.
 Set A2 ON to 14:00 and A2 OFF to 16:00.
 Set A3 ON to 22:00 and A2 OFF to 23:59.
 A4 ON and A4 OFF remain on 23:59.
P14 - Failing charge control signal
If due to an error the signal of the central charge con-
trol fails the heater will be charged to maximum.
In order to change to no charging please proceed as
described below.
 Call up the installer menu.
 Confirm the PIN code four times with the ENTER
key. Display P9 flashes.
 Use the
 
keys to select P14. Display flashes.
 Press the ENTER key. ON flashes.
 Use the
 
keys to select OFF. OFF flashes.
Press the ENTER key. Setting is complete.
