DINGLI JCPT0808 User Manual

OPERATOR’S MANUAL with Maintenance Information

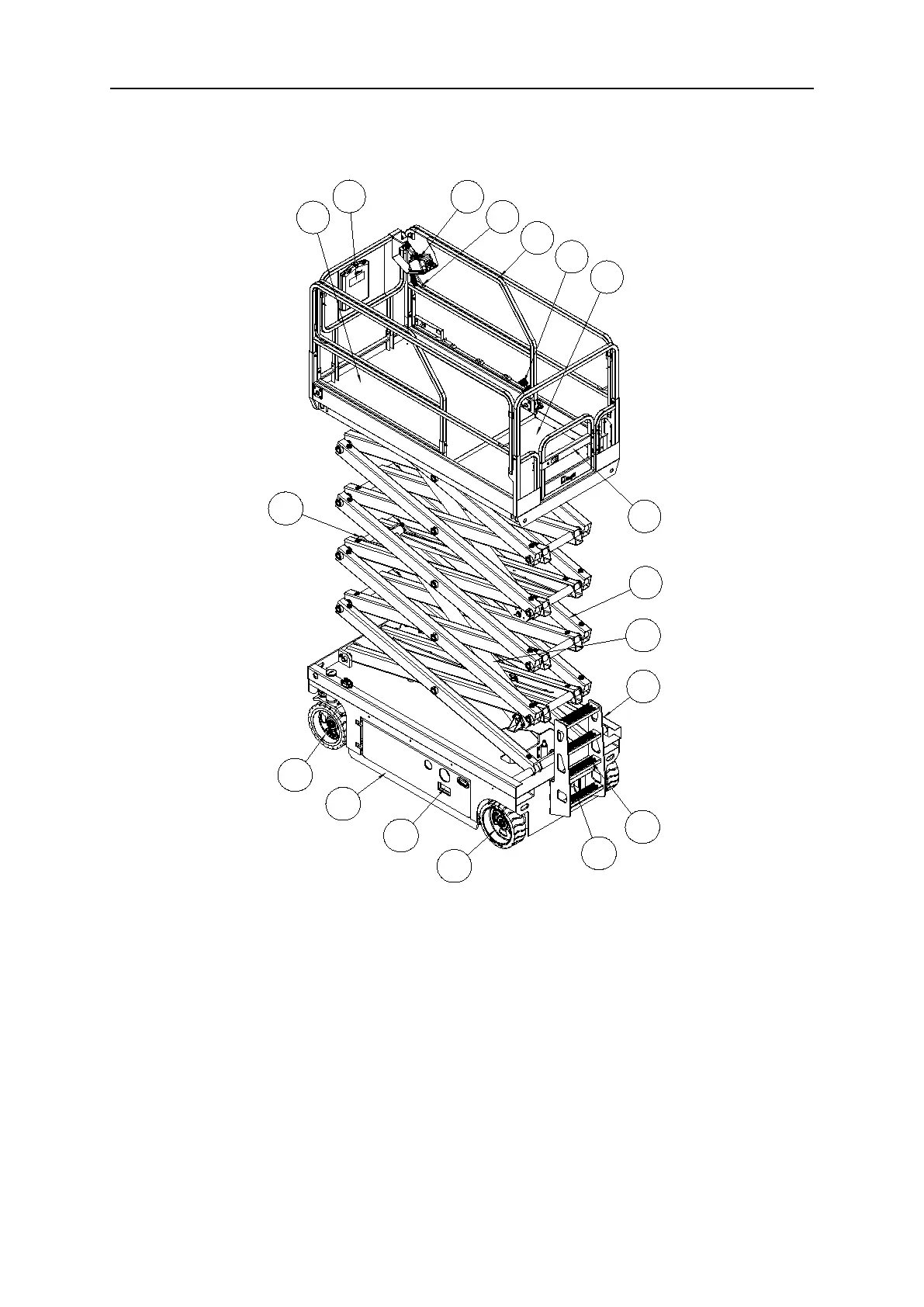

Legend
9
Legend
1 Platform extension
2 Manual storage container
3 Platform control
4 Lanyard anchorage point
5 Platform guard rails
6 Platform extension release pedal
7 Main platform
8 Platform entry gate
9 Scissor arms
10 Lift cylinder
11 Ground controls (on opposite side of
machine)
12 Entry ladder
13 Brake release pump
14 Non-steer tire
15 Battery charger
16 Pothole guard
17 Steer tire
18 Safety arm
1
2
3
4
5
7
8
9
10
6
18
17
11
12
13
14
15
16

DINGLI JCPT0808 Specifications

General

Brand	DINGLI
Model	JCPT0808
Category	Scissor Lifts
Language	English
