DINGLI JCPT1523DC - Page 23

OPERATOR’S MANUAL with Maintenance Information
Control Panel
18

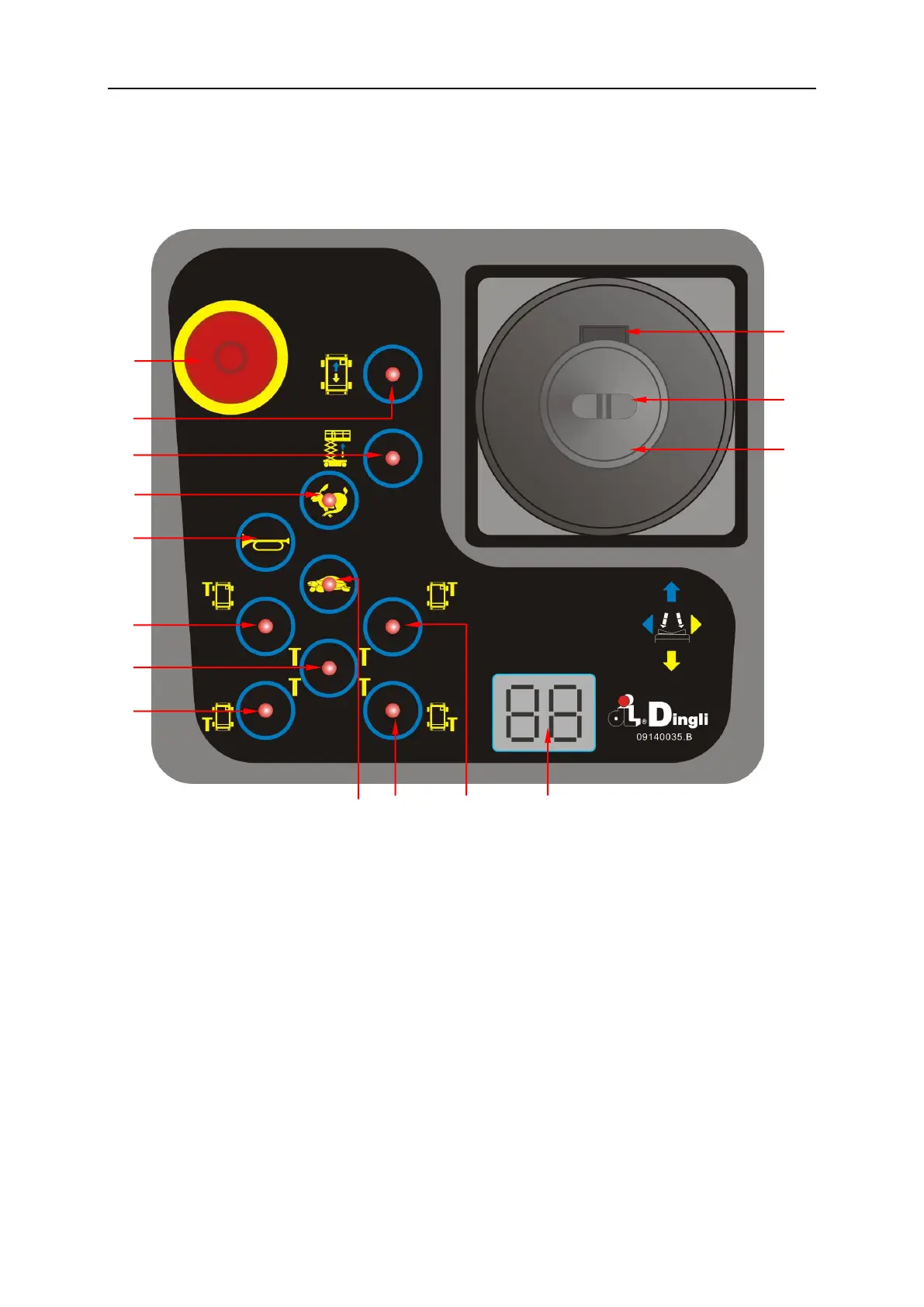

Platform Controls
1 Red Emergency Stop button
7 Outrigger auto level button
2 Drive function select button
8 Torque speed select button
3 Lift function select button
9 LED readout screen
4 High speed select button
10 Proportional control handle
5 Horn button
11 Thumb rocker switch for steer function
6 Outrigger function enable button
12 Function enable switch
