Dingo K9-4 Operation & Maintenance Manual
37

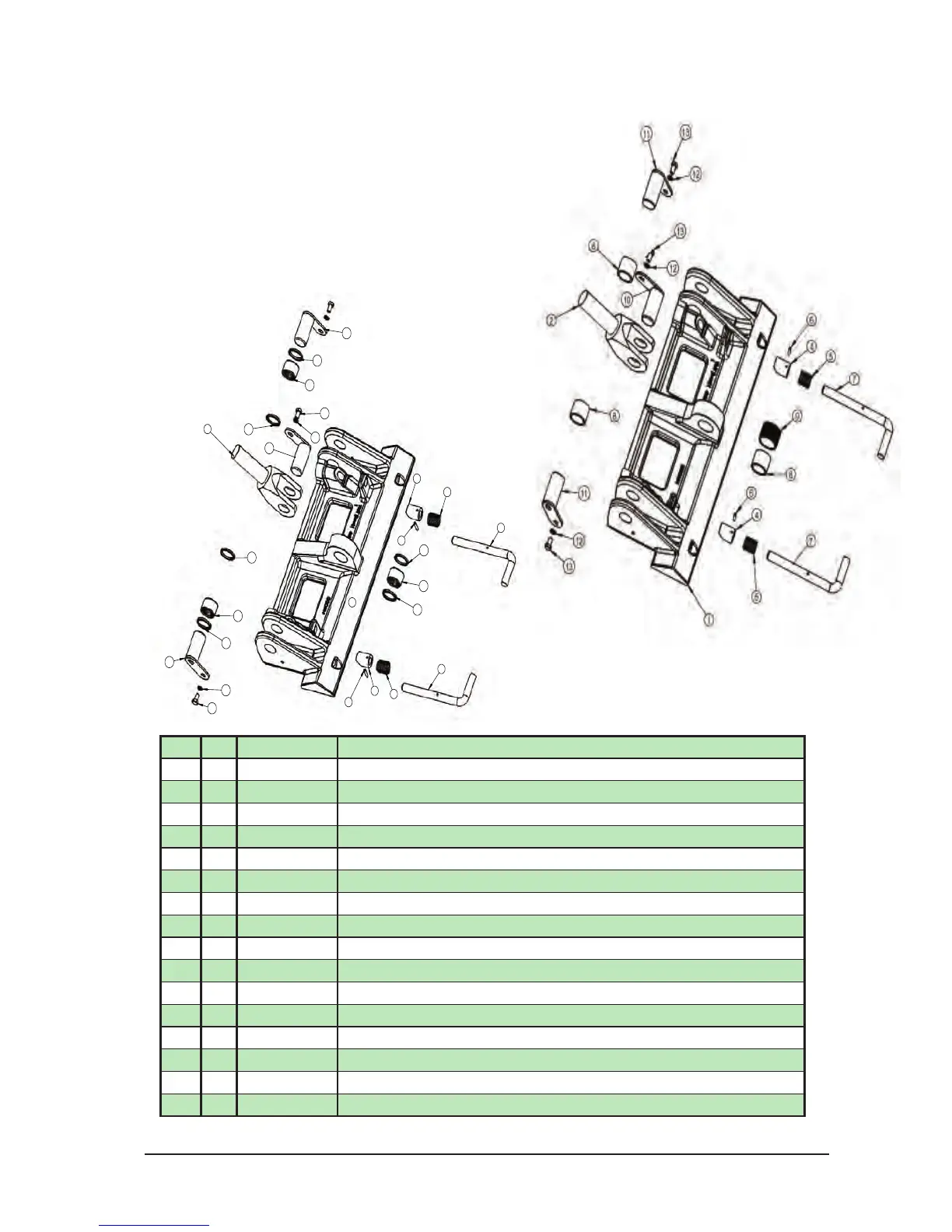

Mount Plate Assembly & Part List
Item Qty Part Number Description
1 1 K94214 Mount Plate For Bushes inc Q/R Pins
1 1 K94212 Mount Plate For Bearings inc Q/R Pins
2 1 321-000-005 2 1/2” x 8” Lift Ram 1 1/4” Top Clevis
4 2 043-000-020 Bevelled Bush
5 2 043-000-031 Locking Pin Spring
6 2 100-000-025 ROLL PIN 5/32” X 1” B1114
7 2 D95211 Locking Pin
8 3 043-000-057 1 1/2”OD 1 1/4” ID Duralon Bush
9 1 K94213 Steel Bush 1.5” ID1.75”OD 32mm K94214 Mount Plate Only
10 1 K94105 Clevis Pin 1 1/4” x 63mm 50mm Tag Chrome
11 2 K94105 Clevis Pin 1 1/4” x 63mm 50mm Tag Chrome
12 3 132-221-000 5/16” / 8mm Spring Washer
13 3 111-311-016 Hex Bolt M8x16
14 3 K94105 Clevis Pin 1 1/4” x 63mm 50mm Tag PGIH
15 6 043-300-054 Seal For 1 1/4” Needle Bearing L15X
16 3 043-000-053 1 1/4” Needle Bearing
Bush Type
