8
3590ET / 3590EGT
TECH_MAN_SCHEMES_3590_ENG_vX_17.06

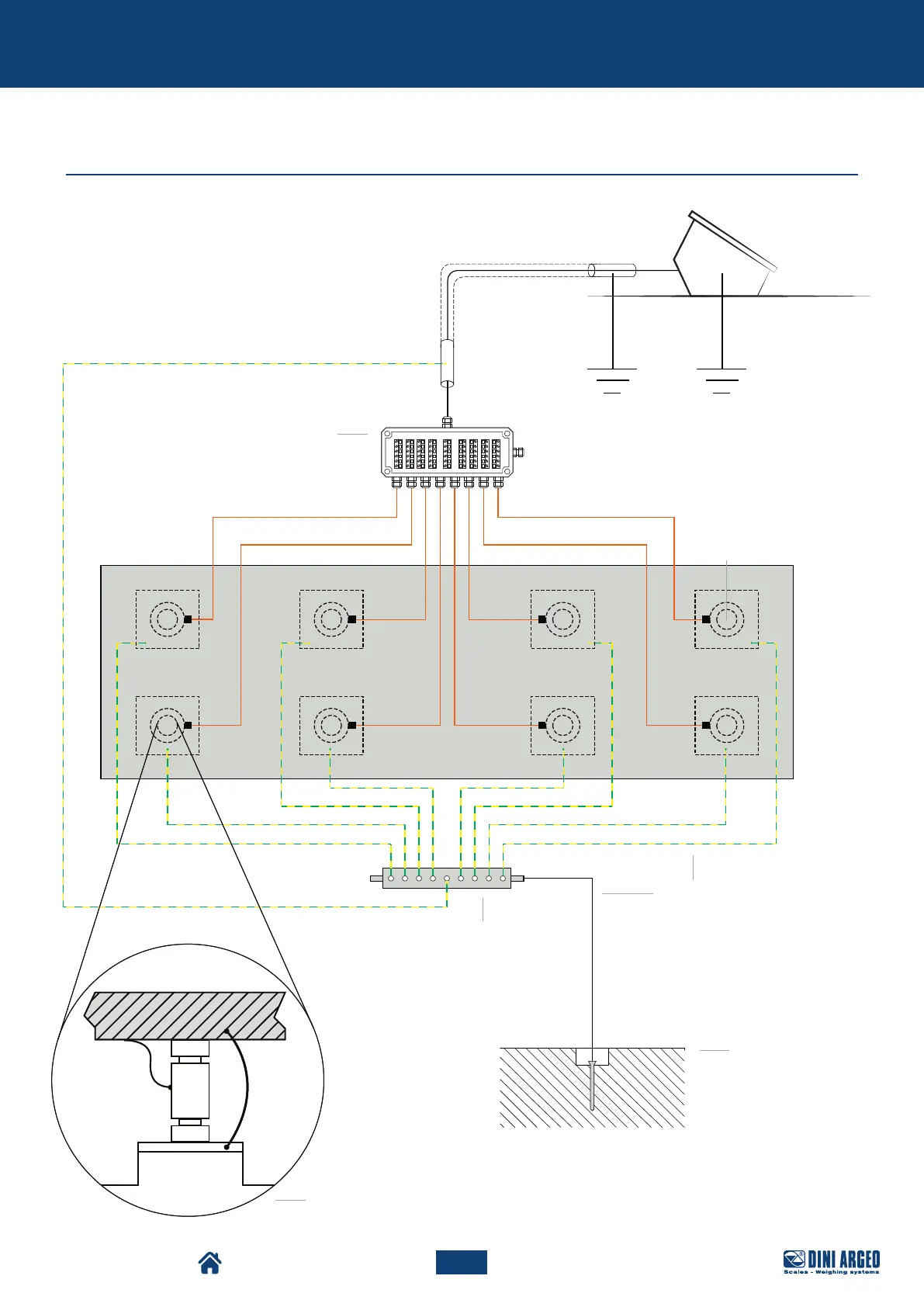

Example of weighbridge earthing
Electrical warnings
Load cell
bypass U-bolt
Weighbridge
Weight indicator
Load cell
Earth cables
Ø 8-sec 50 mm
2
Ø 11,3 - sec. 100 mm
2
Earth pole placed
under or next to
the weighbridge
Copper perforated plate
placed on the coast wall
Junction box situated on
the coast wall of the ditch
Weighbridge
