Dini Argeo E-AF04 User Manual

3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_13.01_EN_U
8

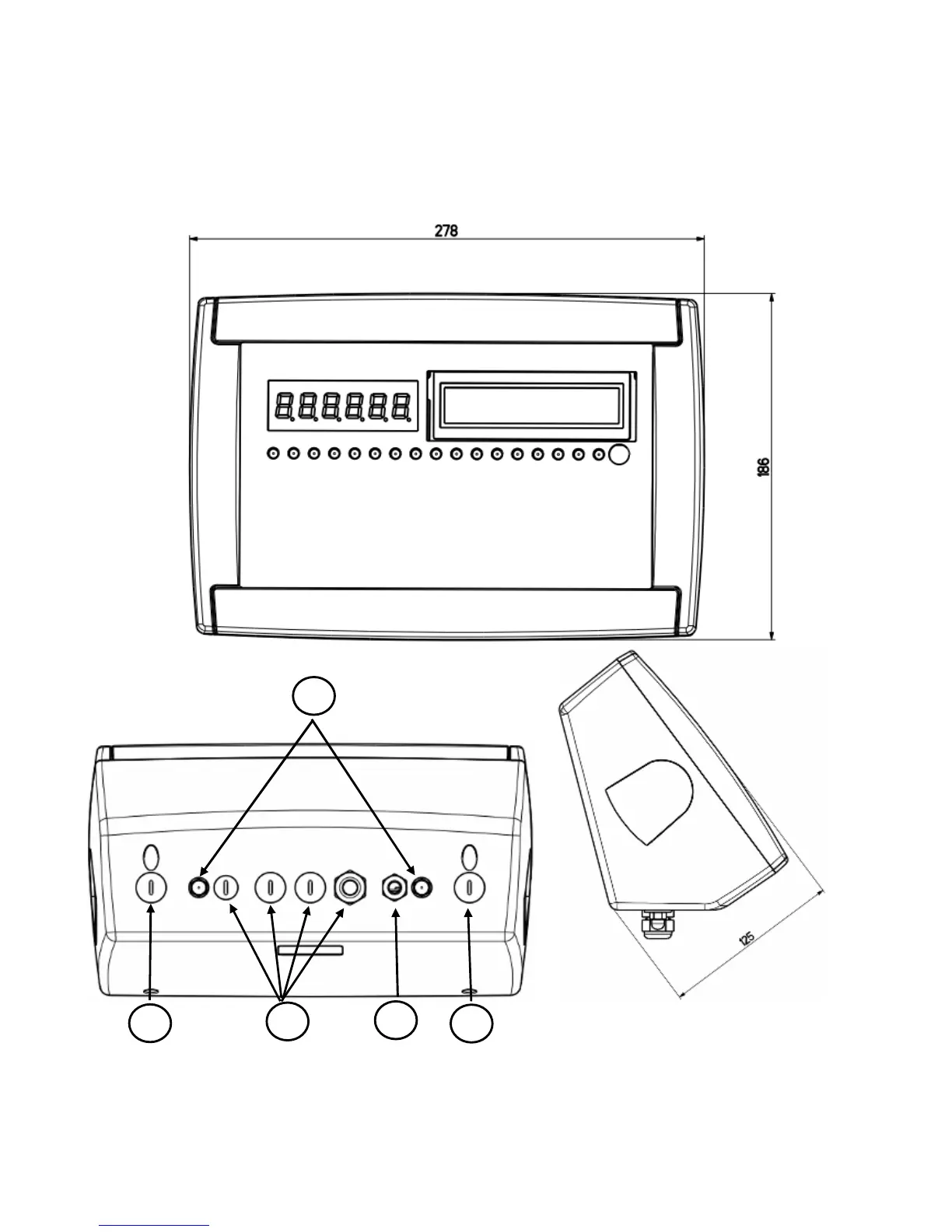

Figure 2
–
Measurements and dimensions in mm
1) RJ45 connector
2) Fixing for shelf or column mounting
3/5) Available for load cells / serial lines / inputs / outputs.
4) Power supply input.
3.2 3590E CASE AND DIMENSIONS
3.2.1 ABS MODEL
The indicator has an IP65 ABS case, whose external dimensions are shown in the Figure 2. It can be simply put on a table
or fixed to a shelf; or on a column, available on request.
NOTE: If the identification plate is supplied separately (therefore not attached to the indicator), it is advisable to
attach it to the indicator, in order to be able to identify the instrument.
1
2
3
4
5
