TRANSMISSION

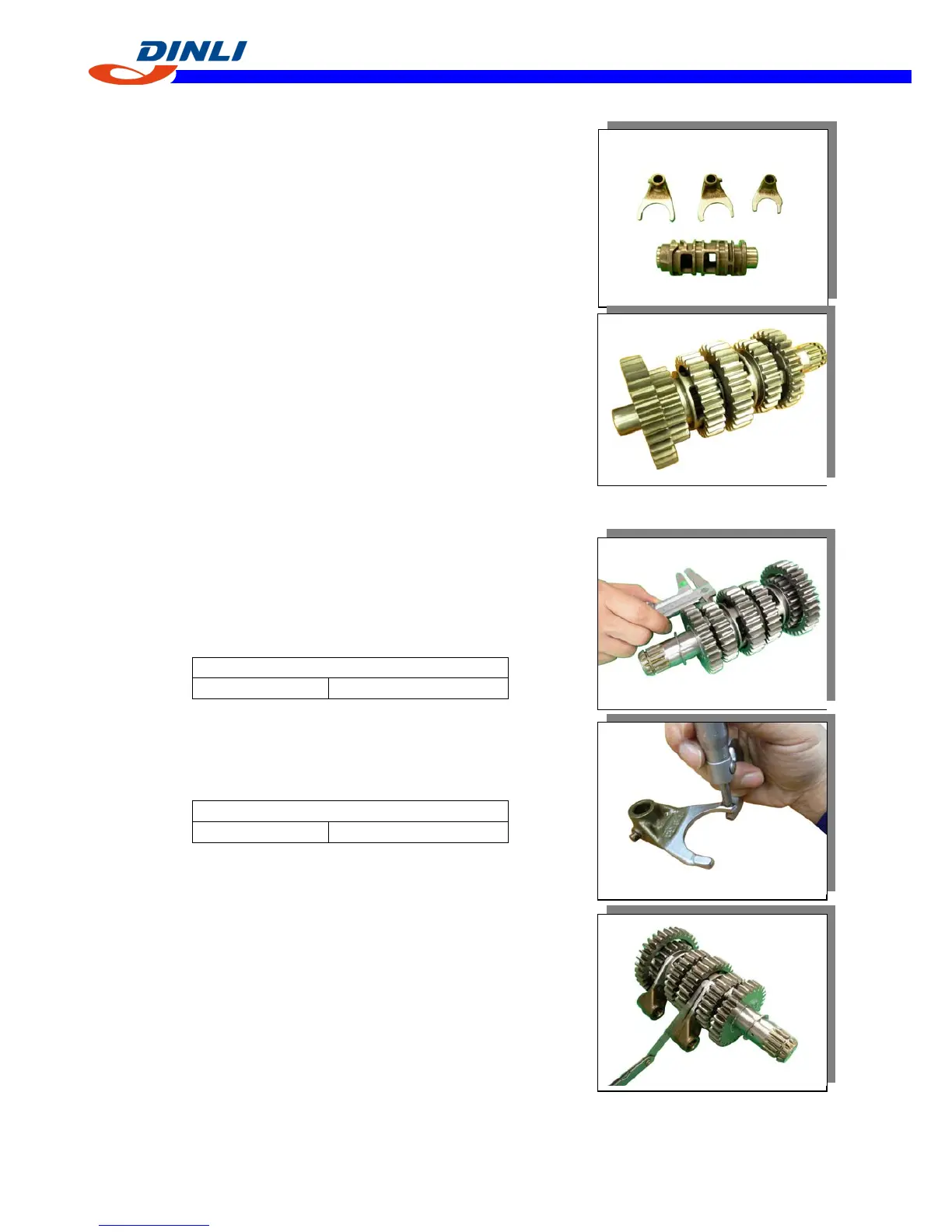

Visual checking – Shift Fork and Drum
● Check for ware and damage.
● If any ware on the Fork craw portion, replace with new one.
Visual checking – Main Shaft and Counter Shaft Assy.
● After disassembling, check for ware and damage on dug
clutch portion, gears and spline portions.
● If any ware and damage, replace with new one.
Width of Shift Fork groove
● Check for ware and scratch in the Fork groove.
● Measure the width of Shift Fork groove with caliper gauge.
Width of Shift Fork groove
Standard 5.10 to 5.17 mm
Width of Shift Fork craw
● Measure the width of Shift Fork craw with micrometer.
Width of Shift Fork craw
Standard 4.93 to 5.00 mm
Clearance between Shift Fork and groove
● Measure the clearance between Shift Fork and transmission
gear groove, at craw portion, with thickness gauge.
