Dino-Power X24 User Manual

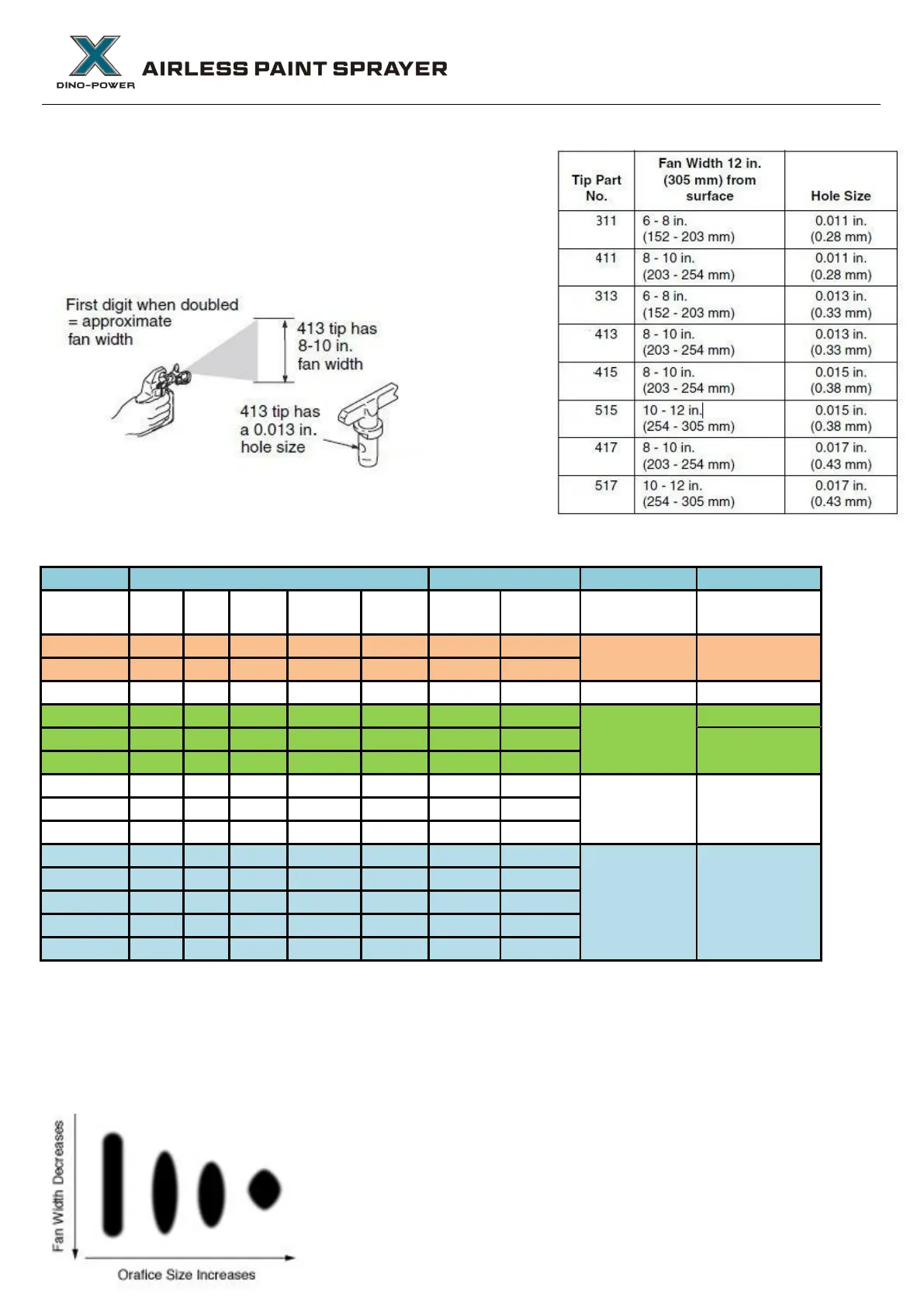

Understanding Tip Number
The last three digits of tip number contain information about
hole size and fan width on surface when gun is held 12 in.
(30.5 cm) from surface being sprayed.
Last two digits = tip hole size in thousands of an inch
Reversible Tip Selection Chart
Orifice Size
Fan Width - Inches
Flow Rate
Application
Filter
inch
4” – 6”
Fan
6” –
8” Fan
8” – 10”
Fan
10” – 12”
Fan
12” – 14”
Fan
gpm
L/min
0.011”
211
311
411
511
611
0.12
0.45
Stain or Lacquer
150mesh (red)
0.013”
213
313
413
513
613
0.18
0.68
0.015”
215
315
415
515
615
0.24
0.91
Oil Base Paint
100mesh (yellow)
0.017”
217
317
417
517
617
0.31
1.17
Latex Paint /
Acrylic / Enamel
100mesh
0.019”
219
319
419
519
619
0.38
1.44
60mesh (white)
0.021”
321
421
521
621
0.47
1.78
0.023”
323
423
523
623
0.57
2.16
Heavy latex
60mesh (white)
0.025”
325
425
525
625
0.67
2.54
0.027”
427
527
627
0.77
2.91
0.029”
329
429
529
629
0.90
3.41
Elastomeric /
Blockfiller /
Primer /
30mesh (green)
0.031”
331
431
531
631
1.03
3.90
0.033”
333
433
533
633
1.17
4.43
0.035”
335
535
1.31
4.98
0.043”
243
343
443
543
643
1.98
7.51
Important things to know about tip wear
It's important to replace a tip when it becomes worn, this ensures you''ll have a precise spray pattern,
maximum productivity and a quality finish. When tip wears, the hole (orifice) size increases and spray
pattern width decreases.
Tip life varies by coating, Extend tip life by spraying at the lowest
pressure that breaks up (atomizes)the coating into a complete
spray pattern.
Recommend tip replacement Latex: After 4000~5000 ㎡
