Dino-Power X24 User Manual

Parts List

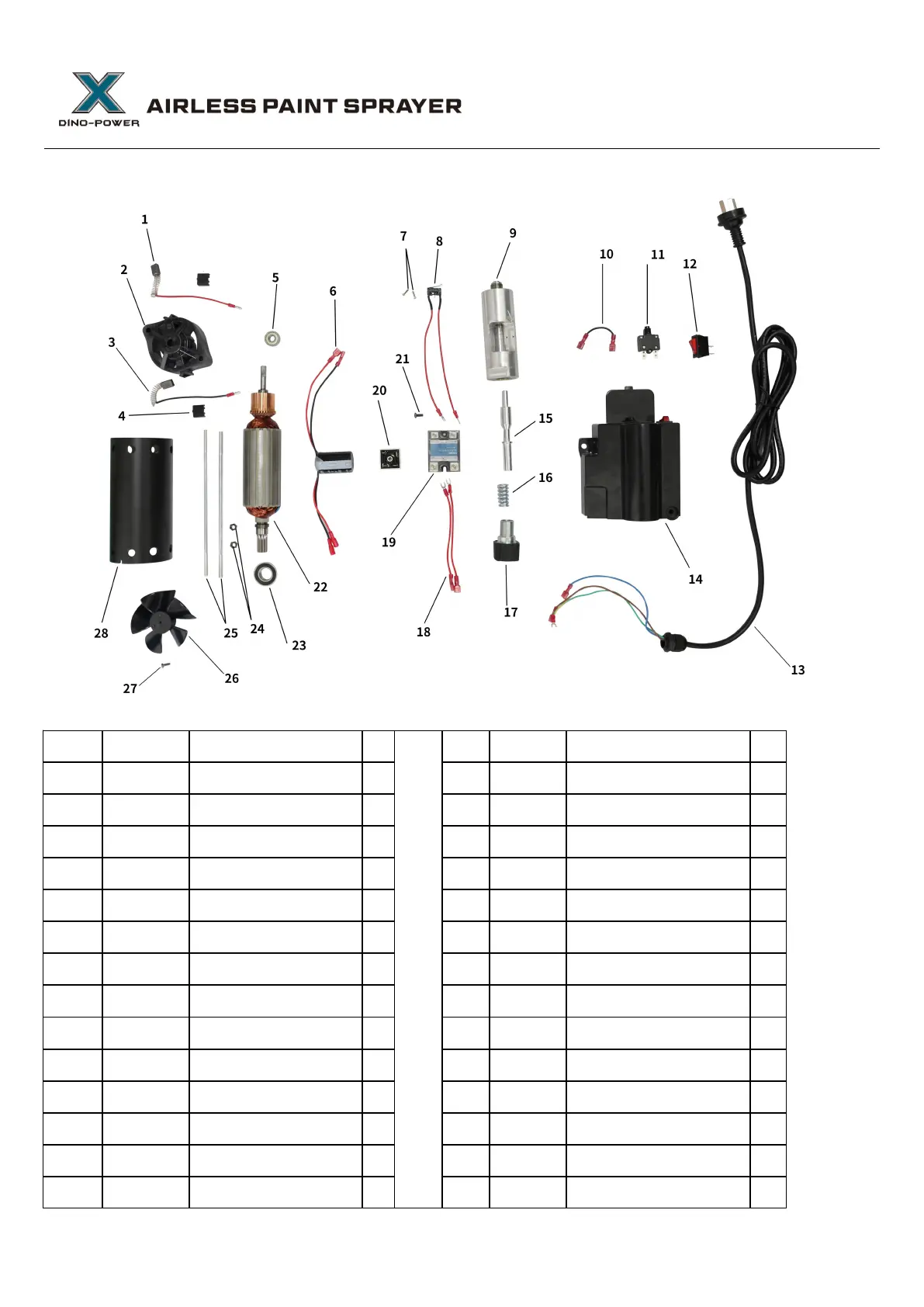

X20 Motor&Pressure control assembly
No.
Serial No.
Description
Qty
No.
Serial No.
Description
Qty
1
X20301
Carbon Brush
1
15
X20515
Stem
1
2
X20302
Baffle
1
16
X20516
Spring
1
3
X20303
Carbon Brush
1
17
X20517
Pressure Regulating Knob
1
4
X20304
Brush Holder
2
18
X20518
Wire
1
5
X20305
Washer
1
19
X20519
Circuit Board
1
6
X20506
Capacitor
1
20
X20520
Bridge
1
7
X20507
Screw
2
21
X20521
Screw
1
8
X20508
Wire
1
22
X20322
Rotor
1
9
X20509
Pressure Regulator Housing
1
23
X20323
Bearing
1
10
X20510
Wire
1
24
X20324
Washer
2
11
X20511
Connector
1
25
X20325
Long Screw
2
12
X20512
Switch
1
26
X20326
Fan
1
13
X20613
Power Cord
1
27
X20327
Screw
1
14
X20614
Plastic Cover
1
28
X20328
Stator
1

Dino-Power X24 Specifications

General

Brand	Dino-Power
Model	X24
Category	Paint Sprayer
Language	English
