Dino-Power X24 User Manual

Parts List

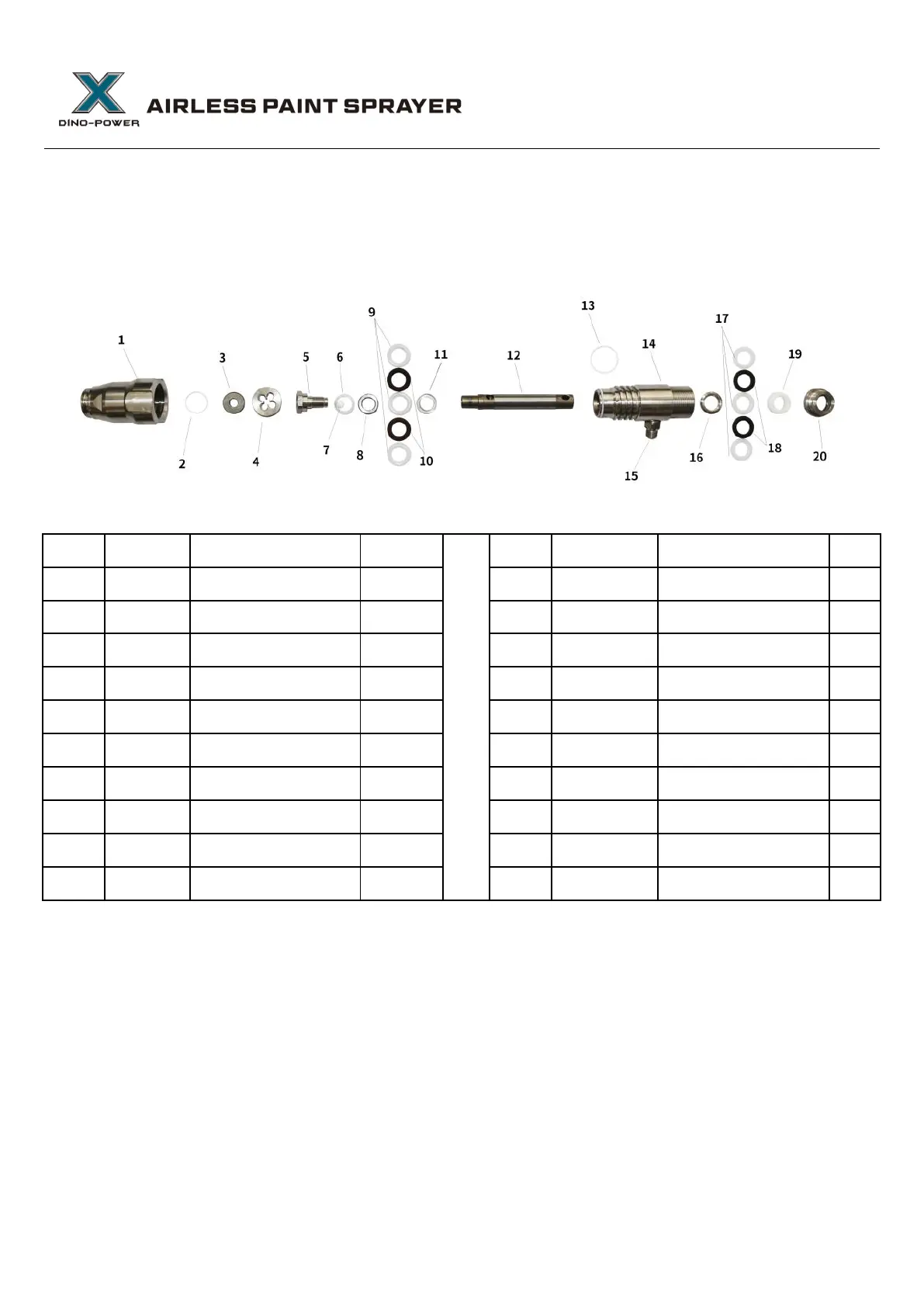

X20 Fluid pump
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
x20101
Lower housing
1
11
x20111
Gland, piston
1
2
x20102
O-ring
1
12
x20112
Piston rod
1
3
x20103
Carbide seat
1
13
x20113
O-ring
1
4
x20104
Ball guide
1
14
x20114
Cylinder
1
5
x20105
Piston valve
1
15
x20115
Outlet connector
1
6
x20106
Spacer
1
16
x20116
Gland, piston
1
7
x20107
Ball
1
17
x20117
V-packing, throat
3
8
x20108
Gland, piston
1
18
x20118
V-packing, leather, throat
2
9
x20109
V-packing, piston
3
19
x20119
Gland, throat
1
10
x20110
V-packing, leather, piston
2
20
x20220
Nut, packing
1
