Dino-Power X24 User Manual

Parts List

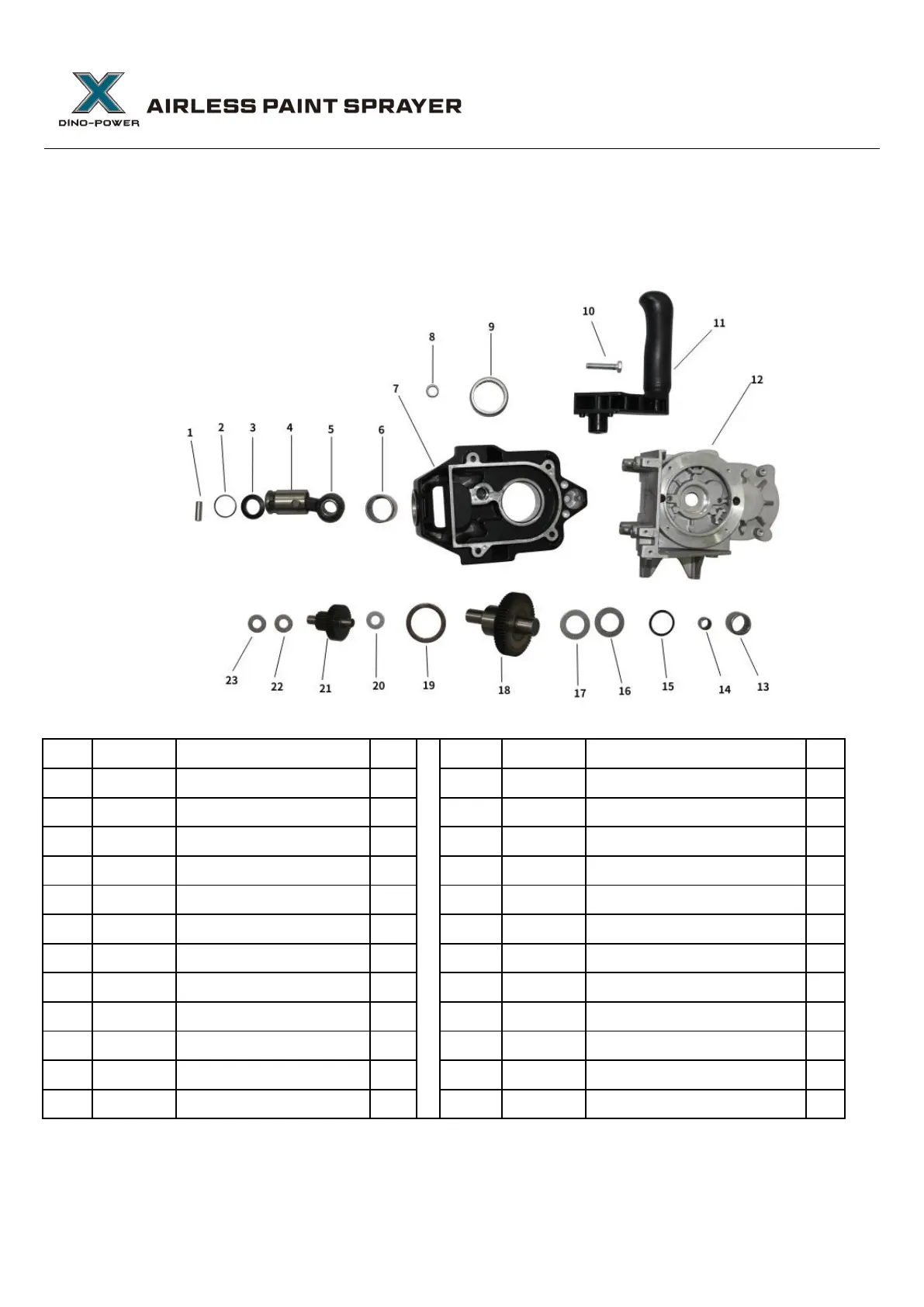

X20 Gear Box
No.
Series No.
Description
Qty
No.
Series No.
Description
Qty
1
x20201
Pin
1
13
X20213
Bearing
1
2
x20202
Washer
1
14
X20214
Bearing
1
3
x20203
Washer, rubber
1
15
X20215
O-ring
1
4
x20204
Connecting rod
1
16
X20216
Washer
1
5
x20205
Needle bearing, connecting rod
1
17
X20217
Washer
1
6
x20206
Bearing
1
18
X20218
Gear, crankshaft
1
7
X20207
Drive housing
1
19
X20219
Washer
1
8
X20208
Bearing
1
20
X20220
Washer
1
9
X20209
Bearing
1
21
X20221
Gear, reducer
1
10
X20210
Screw
1
22
X20222
Washer
1
11
X20211
Handle
1
23
X20223
Washer
1
12
X20212
Cover, drive housing
1

Dino-Power X24 Specifications

General

Brand	Dino-Power
Model	X24
Category	Paint Sprayer
Language	English
