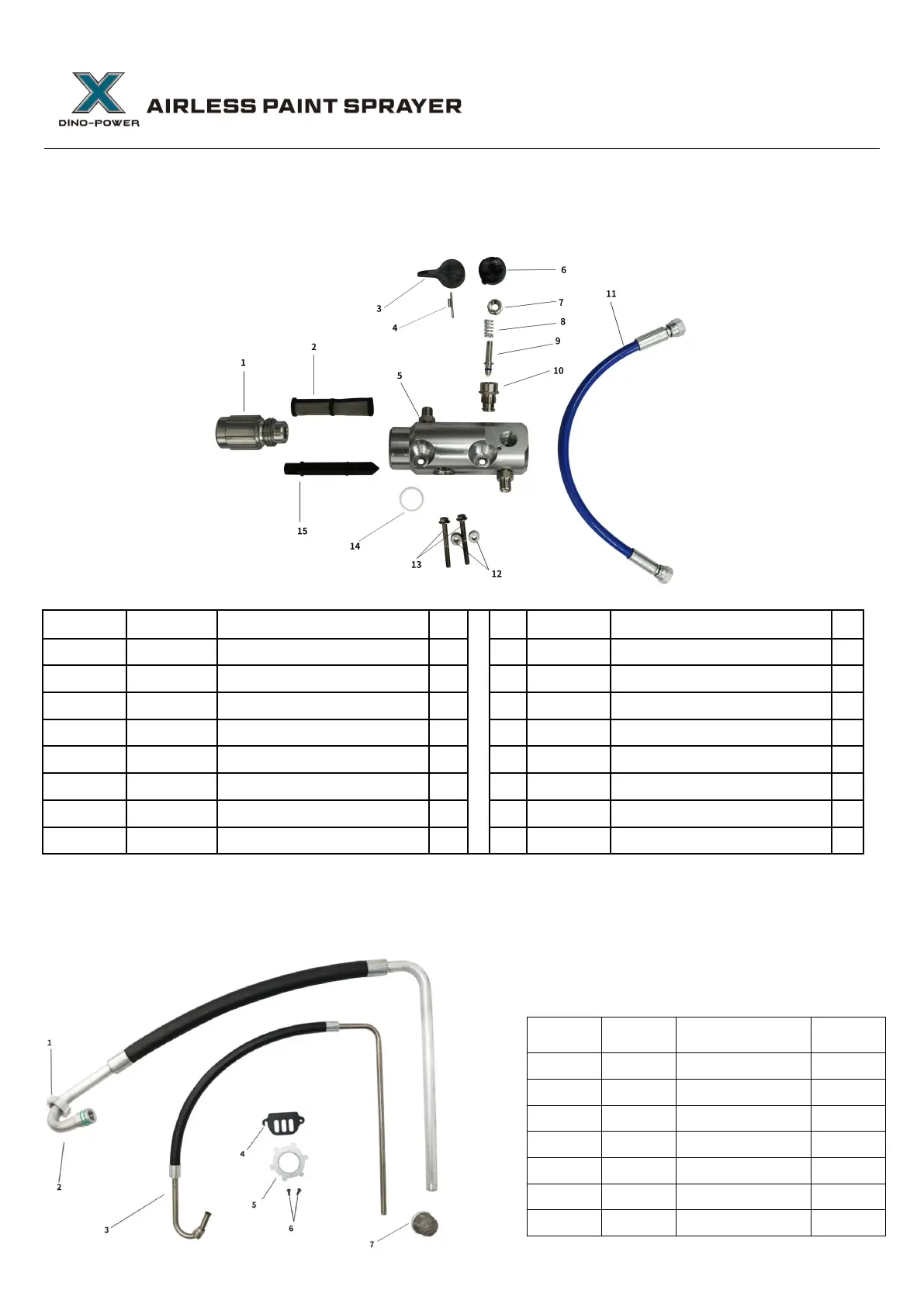

Parts List
X20 Filter Housing
NO.
Series NO.
Description
Qty
NO.
Series NO.
Description
Qty
1
X20401
Manifold cap
1
9
X20409
Prime/spray valve stem
1
2
X20402
Pump filter
1
10
X20410
Prime/spray valve housing
1
3
X20403
Prime/spray valve handle
1
11
X20411
Hose
1
4
X20404
Prime/spray valve groove pin
1
12
X20412
Gasket
2
5
X20405
Manifold
1
13
X20413
Screw
2
6
X20406
Prime/spray valve base
1
14
X20414
O-ring
1
7
X20407
Prime/spray valve Gasket
1
15
X20415
Filter insert
1
8
X20408
Prime/spray valve Spring
1
X20 Suction hose Assembly
NO.
Series NO.
Description
Qty
1
x20801
Retainer
1
2
x20802
Suction hose
1
3
x20803
Drain hose
1
4
x20804
Pump rod cover
1
5
x20805
Retainer
1
6
x20806
Screw
1
7
x20807
Suction filter
1
