3. You can now attach the tablet to the tablet holder. Figure 3-37 shows an
example installation. If the setup includes an Ethernet cable, the routing
for the cable would be the same as the power cable in the photo.

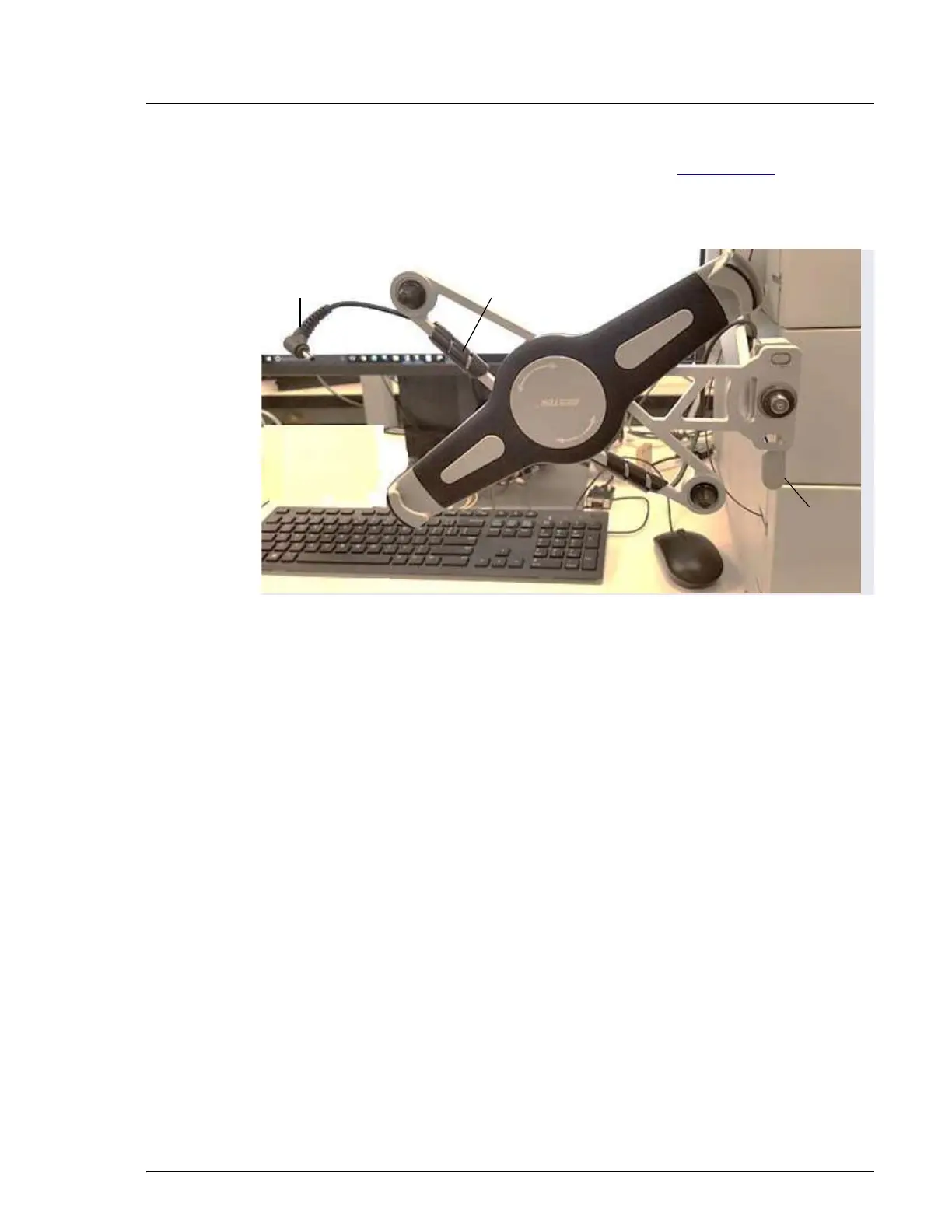

Figure 3-37. Tablet Connections and Viewing Adjustment
Tablet Power
Spiral Wrap
Release
Lever
DC
