SPEAKER WIRING DIAGRAMS A404
NNOOTTEE::
For bridged two channel operation as shown in this diagram, connect right channel RCA cables to the front inputs of the
amplifier, and left channel RCA cables to the rear inputs of the amplifier. For summed subwoofer applications, connect
RCA cables per the input jack marking.

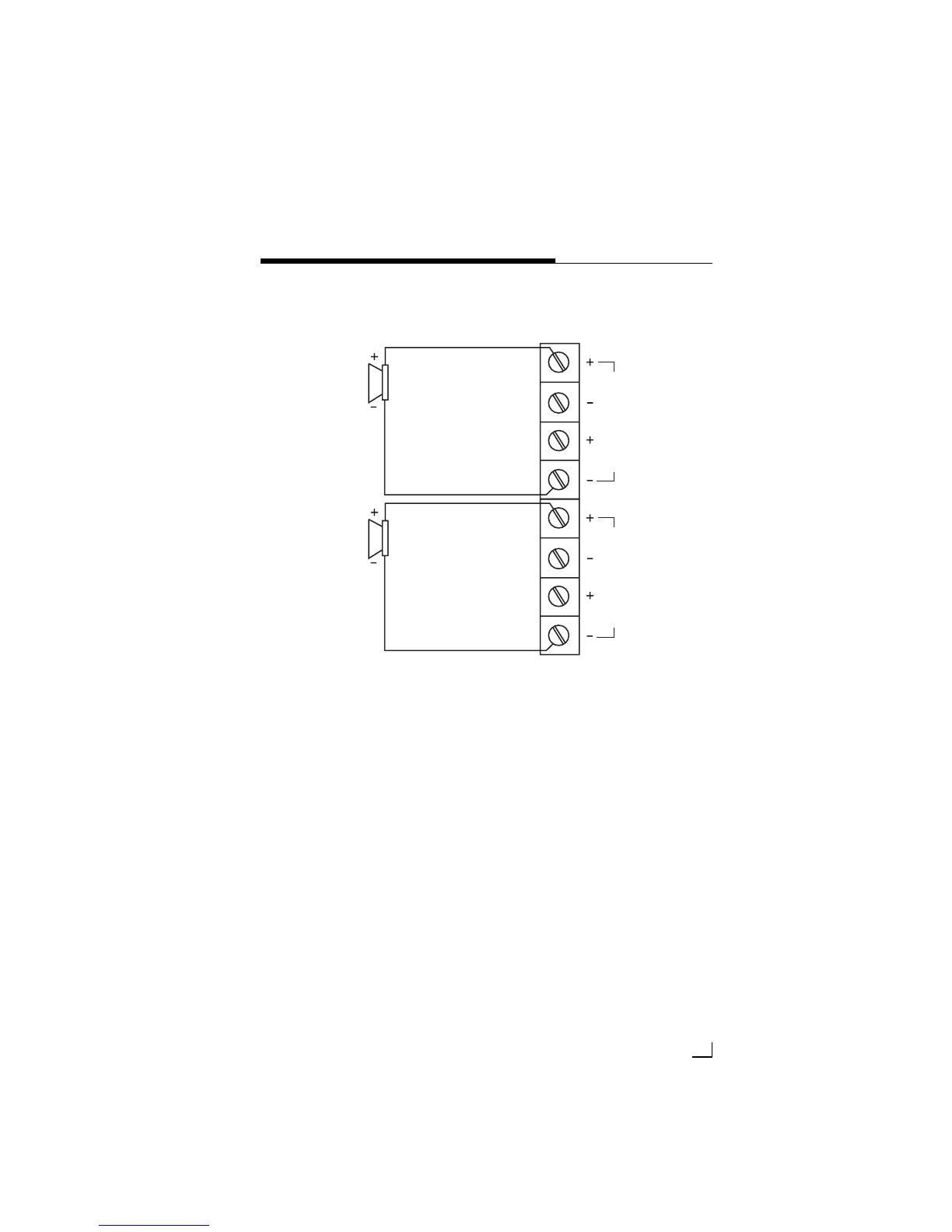

Stereo Operation - 2 Channel (top view)
B
R
I
D
G
E
D
L CH
R CH
B
R
I
D
G
E
D
L CH
R CH
FRONT
(RIGHT)
REAR
(LEFT)
