Directed Electronics Xpresskit Solex PLJX User Manual

ION, CANYON, COLORADO, COBALT, PURSUIT
SYSTEM PRESET TO OVERRIDE THE FOLLOWING ION PASSLOCK TYPE use on:
SATURN ION, CHEVY COLORADO, 2005 COBALT, GMC CANYON, 2005 PONTIAC PURSUIT
Orange
Blue
Brown

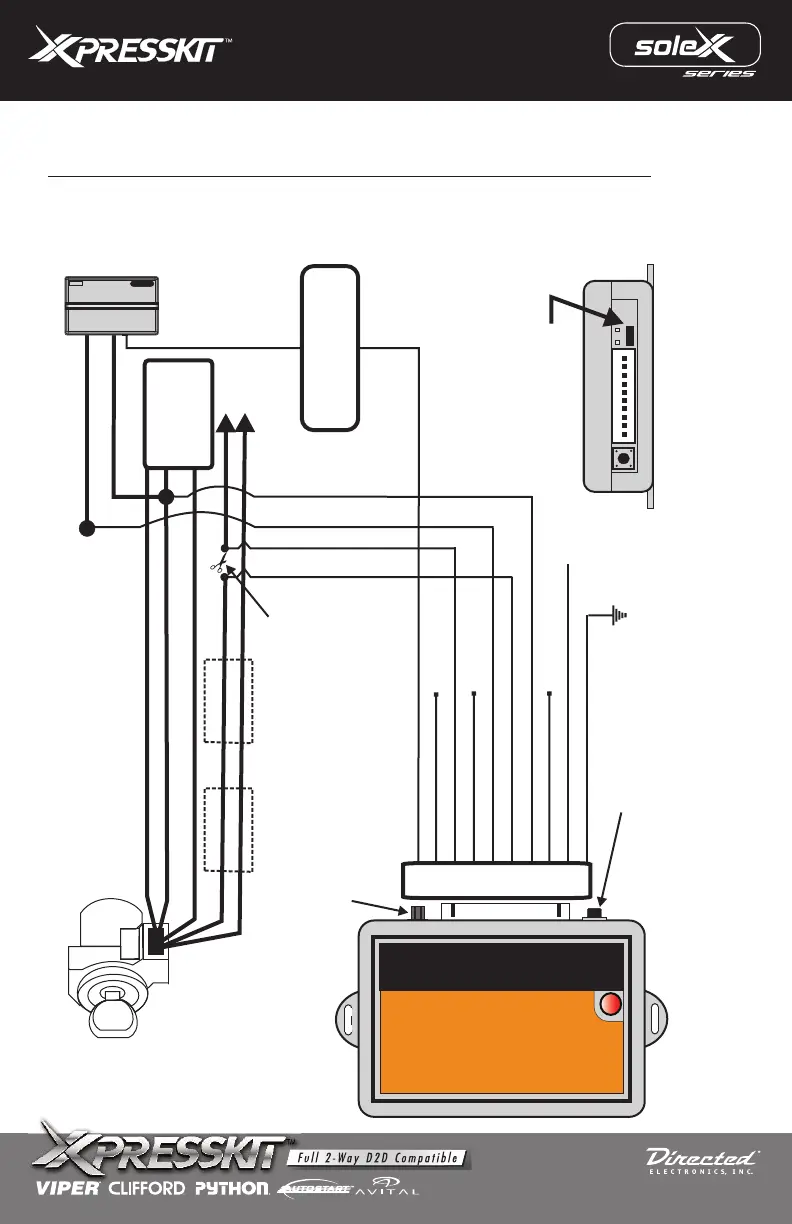

BCM
Connect to 12V Constant
Start Wire
Ground N/C Data Key Side Ignition Data ECM Side
(+)
(RV)
(+)
(-)
(+)
(-)
(D)
IGNITION
CYLINDER
Green Blue Violet/White Violet Pink/White Pink Orange Red Black
STARTER OUTPUT WIRE (+)
FROM REMOTE CAR STARTER
IGNITION
White
White/Black
N/C
INPUT INPUT INPUT INPUT
OUTPUT
Button
Programming
INPUT
N/C
Ground When running
Remote Start (status)
INPUT
Brown
White/Yellow
Cut the
White or
White/Blue
wire
OR
White/Blue
Programming
Jumper
Jumper Position:
Horizontal
Lower Two Pins
}
*
*
Conn
ect
Br
o
wn
wire
ONLY
a
fte
r
p
rogr
a
m
mi
ng
i
s
c
omp
l
et
e
*
*
PLJX is
preset to override
ION, Colorado &
Canyon Passlock
System Type.
INSTALLATION NOTES: ION, Canyon & Colorado etc. do not have starter wires.
**Be sure to verify the jumper type selection on the PLJX module prior to installation,
otherwise the kit will not function.
System
Remote Control
MODEL: pljx
Rev.: 20111017
© 2011 Directed Electronics. All rights reserved.
