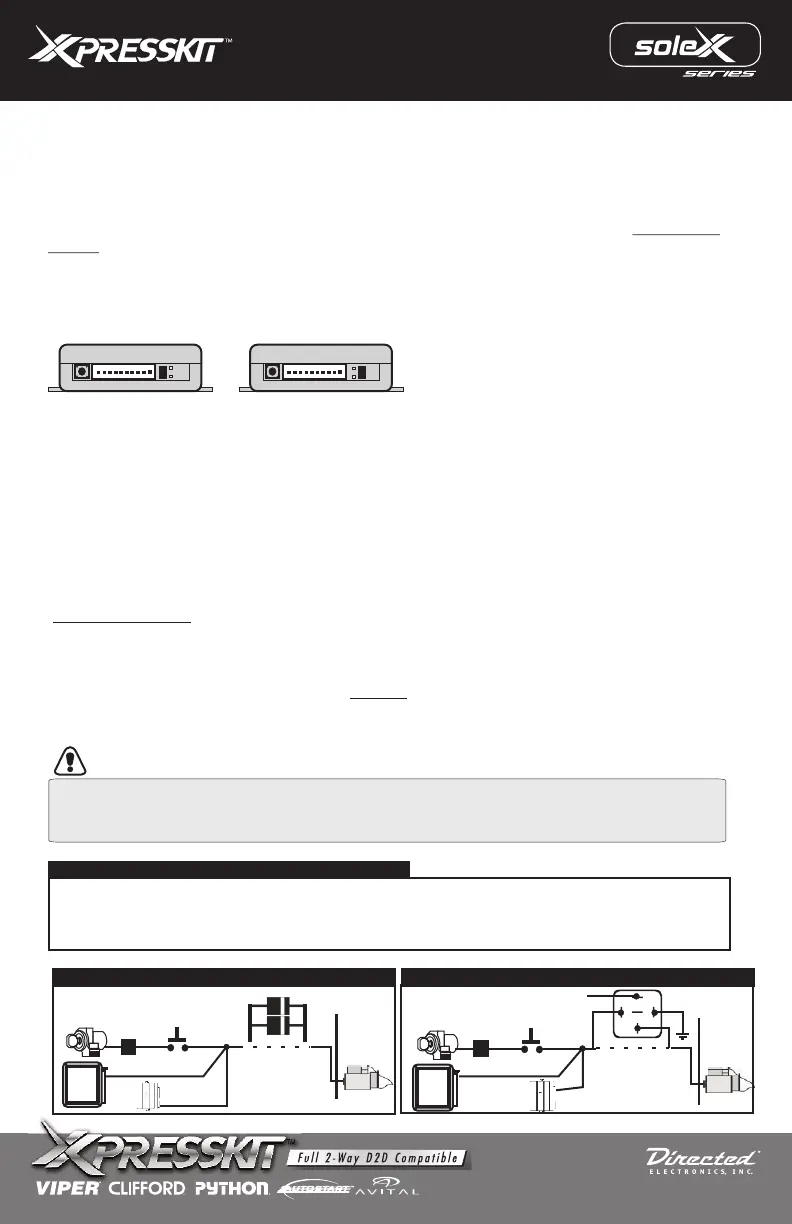

Directed Electronics Xpresskit Solex PLJX User Manual

(For manual transmission vehicles, put shifter in the NEUTRAL
position and DO NOT PRESS CLUTCH when doing STEP A & B)
ADDITONAL INFORMATION (Tech Notes)
NOTICE
A) Turn key to the ignition position, press on brake and place transmission into gear.
B) Now turn key to start position and release, continue with step “B” of previous programming.
TECH NOTE:
If experiencing trouble programming, try:
In case of component failure, it is likely that the GM Passlock will enter into “Long Tamper” mode.
This will prevent the vehicle from starting for a period of 10 minutes. In this event, turn key to the
“ON” position and let vehicle rest until the GM Security light stops flashing.
CAVALIER, SUNFIRE 1999 or earlier. Passlock 1 (Bulb Test Wire) On certain vehicles, such as the 1999 Cavalier & Sunfire, there have been
cases where a voltage residual is detected on the starter wire after start up. This will prevent the PLJX from functioning properly.
To test: Start vehicle and use a voltmeter on the starter wire to check for 12V positive(+) residue after cranking. If a +12v residue is detected,
choose from solution #1 or #2 to rectify. (See solutions #1 & #2).
SOLUTION #1
USE TWO 6 AMPERE DIODES
Make connection closest to
firewall
STARTER KILL
(OPTIONNAL)
“CLUTCH SWITCH”
(MANUAL CAR)
X
VIOLET
“STARTER” WIRE
STARTER
IGNITION
SWITCH
FIREWALL
87
87A
30
86
85
+12V BAT
STARTER KILL
(OPTIONNAL)
“CLUTCH SWITCH”
(MANUAL CAR)
X
VIOLET
“STARTER” WIRE
STARTER
IGNITION
SWITCH
SOLUTION #2
FIREWALL
USE 1 RELAY SPDT TYPE
Make connection closest to
firewall
STEP 1- PASSLOCK TYPE SELECTION
GM PASSLOCK I & 2, VATS & ION
SELF LEARNING RESISTOR CODE INTERFACE
Application: All GM equipped Passlock 1 & 2 & VATS
Mode Passlock 1
Mode Passlock 2 & VATS
STEP 2- PROGRAM RESISTOR CODE
A
B
A
B
Connect Brown wire to remote starter only after RESISITOR CODE programming is complete.
Once all Passlock wires have been connected, you must SELECT the proper PASSLOCK
TYPE before proceeding to STEP 2 -PROGRAM RESISTOR CODE. Select one of the 2
available PASSLOCK types.
Place jumper according to theft deterent type being bypassed.
A) Start vehicle by key.
B) Press & Hold Programming Button. LED will come on solid. Keep pressing until LED starts
blinking. When LED is blinking release button and turn the ignition to the OFF position.
C) Passlock resistor Code is now programmed, connect brown wire to ground output from remote
starter and test bypasskit function by remote starting the engine.
MODEL: pljx
Rev.: 20111017
© 2011 Directed Electronics. All rights reserved.
