Your equipment may not look exactly like the model illustrated.
Locate the
access card that
came with your
DIRECTV HD
Receiver. Write
down the card
number in the
space below, then
insert the card
into the receiver,
facing upward,
fully into the slot.
Card #
SELECT
GUIDEPOWER MENU ACTIVE INFO RES
480i 480p 720p 1080p
OPEN
1 2 4 5 76 8 9 103

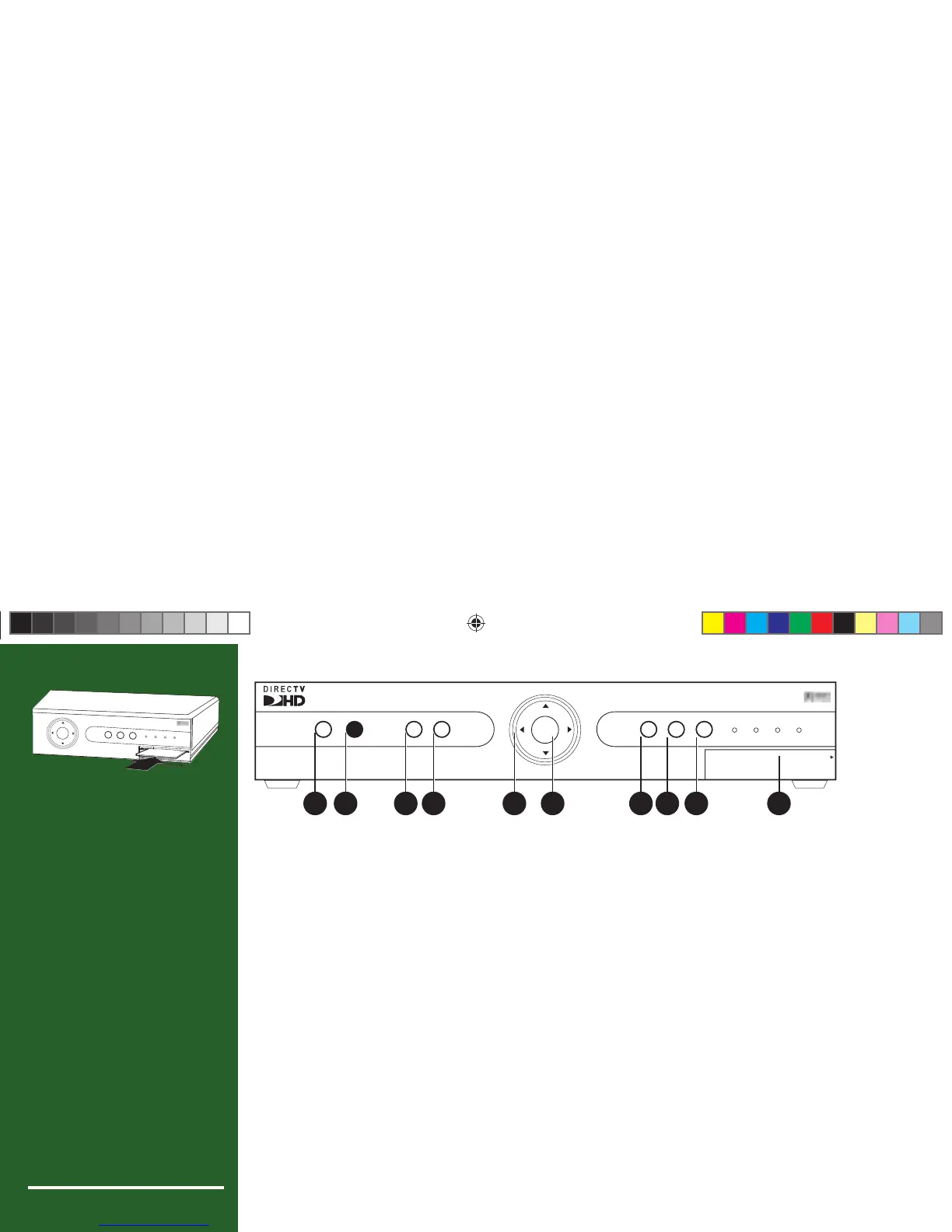

DIRECTV HD Receiver Front Panel
1) POWER – Turns your DIRECTV HD Receiver on or off . Your Receiver still tunes and receives
messages when powered off .
2) REMOTE SENSOR – e infrared sensor picks up commands from the remote control.
3) GUIDE – Displays the onscreen program guide.
4) MENU – Brings up the Menu to access settings and services.
5) ARROWS – Move the onscreen highlight up, down, left or right.
6) SELECT – Selects the item highlighted.
7) ACTIVE – Displays the DIRECTV Active™ Channel—local weather and more!
8) INFO – Displays channel banner or info to a highlighted program or channel cell.
9) RESOLUTION/RESOLUTION INDICATOR – e RESOLUTION key switches the output
resolution of the HD receiver. Each time you press the key, it cycles to the next available resolution:
480i, 480p, 720p and 1080i. e adjacent lights indicate the current resolution setting.
10) DOOR PANEL – e access card slot and RESET button are located behind the door panel.
