HARDWARE MANUAL—H26K
1. OVERVIEW
The H26K is the next-generation satellite receiver designed for DIRECTV® commercial
accounts. It provides an enhanced customer experience and supports 4K.
2. HARDWARE INFORMATION

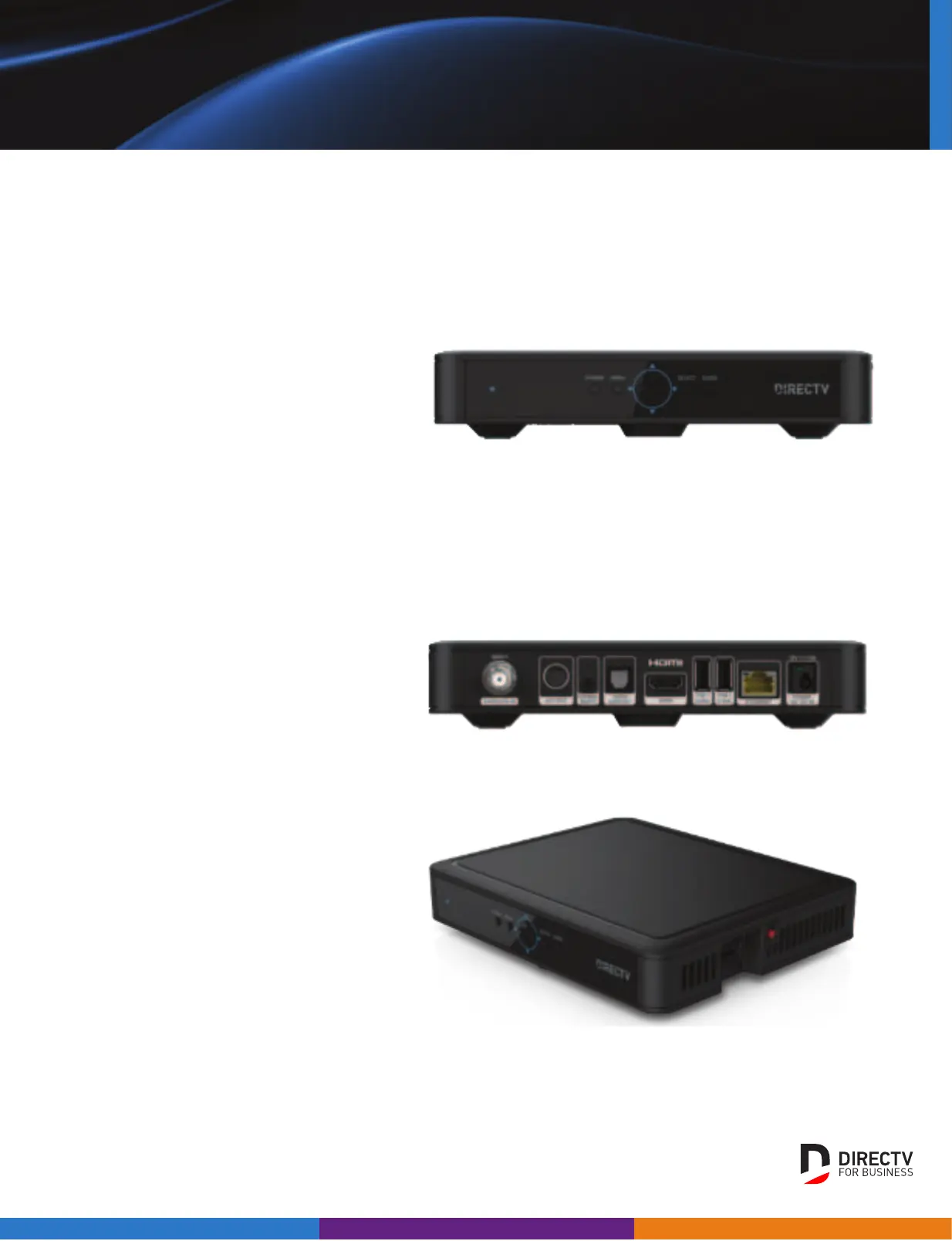

A. Front Panel
i. Front Panel Buttons: Menu, Select, Guide and Navigation
ii. Power Status Indicator LED
B. Back Panel
i. SWM-1 SATELLITE: Satellite Input Coax connector
ii. AV OUT: Analog Audio/Composite Video Output connector—Mini DIN to RCA
iii. EXTERNAL REMOTE: Supports external IR receiver or external IR blaster
iv. DIGITAL OUT: Optical Digital Audio Output connector
v. HDMI: One HDMI connector
vi. USB 1 (0.5A) and USB 2 (1.0A): Two (2) USB ports
vii. ETHERNET: One Ethernet port with indicator LED
viii. POWER DC 12V IN: DC power connector with power indicator LED
C. Side Panel
i. Red Reset Button on side with Access Card (SIM card)
ii. Access Card Interface—Open slot

DirecTV H26K Specifications

General

Brand	DirecTV
Model	H26K
Category	Receiver
Language	English
