147
(This connection does not provide an HD picture.)
Example: TV with RCA Connectors

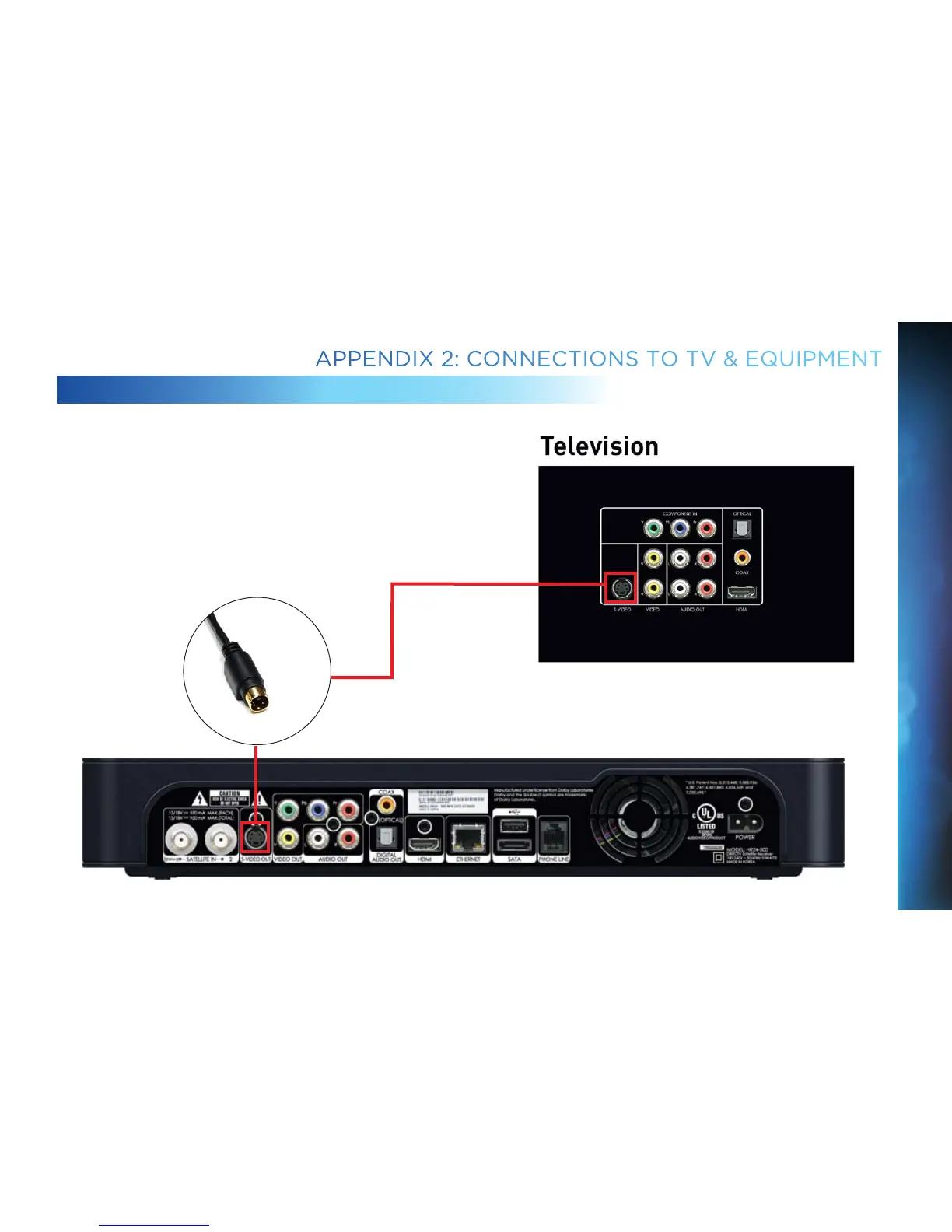

Here is an example of a TV that has an S-Video connector
as the best video input (Not all receivers have an S-Video
connector.)
S-Video requires a separate audio connection.
SD TV CONNECTIONS
S-Video
Cable
APPENDIX 2: CONNECTIONS TO TV & EQUIPMENT
APPENDICES
