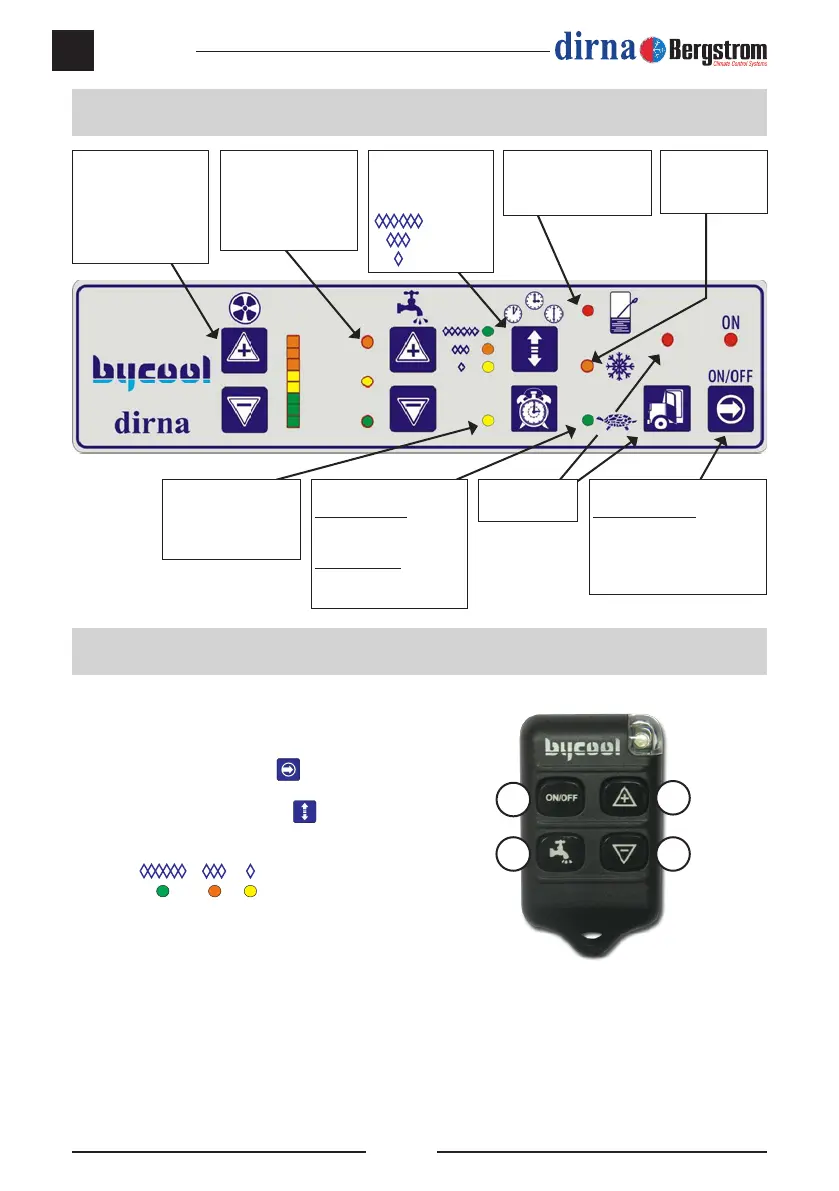

Functioning of control
Functioning of remote control
OPERATION
CENTRIFUGAL
BLOWER
Green - minimum
Orange - average
Red - maximum
ALARM CLOCK
1/2 h interval
programming, up to
a maximum of 2h.
GREEN LIGHT
Quick ashing:
period when pump is
working.
Slow ashing:
period when pump has
stopped.
SWITCH ON - OFF
Initial conditions:
- Minimum speed centrifugal
blower
- Pump 10 sec.
- Time delayed switch off
DOORS
ALARM
TIME WHEN PUMP
IS FUNCTIONING
Green - 10 sec
Orange - 20 sec
Red - 30 sec
TIMER TO
SWITCH OFF
EQUIPMENT
- approx. 6h
- approx. 3h
- approx. 1h
RED LIGHT
If switched on = low
water level
ORANGE
LIGHT
Timer led
HOW TO ACTIVATE REMOTE CONTROL
FOR THE 1ST TIME OR WHEN BATTERY IS
DISCONNECTED
1º Switch equipment off, button (led ON turned
off).
2º During 6 seconds push button indicated on
panel until all leds stop ashing except those with
rhombus
3º Push ON/OFF button of remote control. If
equipment is switched on and off, remote control
will have been activated successfully.
WARNING
Buttons should not remain pushed otherwise
REMOTE CONTROL WILL BE BLOCKED
FUNCTIONS OF BUTTONS
1.- Switching on / off of equipment.
2.- Increase / decrease of pump activation times.
3.- Reduce speed of centrifugal blower.
4.- Increase speed of centrifugal blower.
1
4
2 3
