Air conditioning for vehicles
1
2
4
5
5
5
165 mm
100 mm

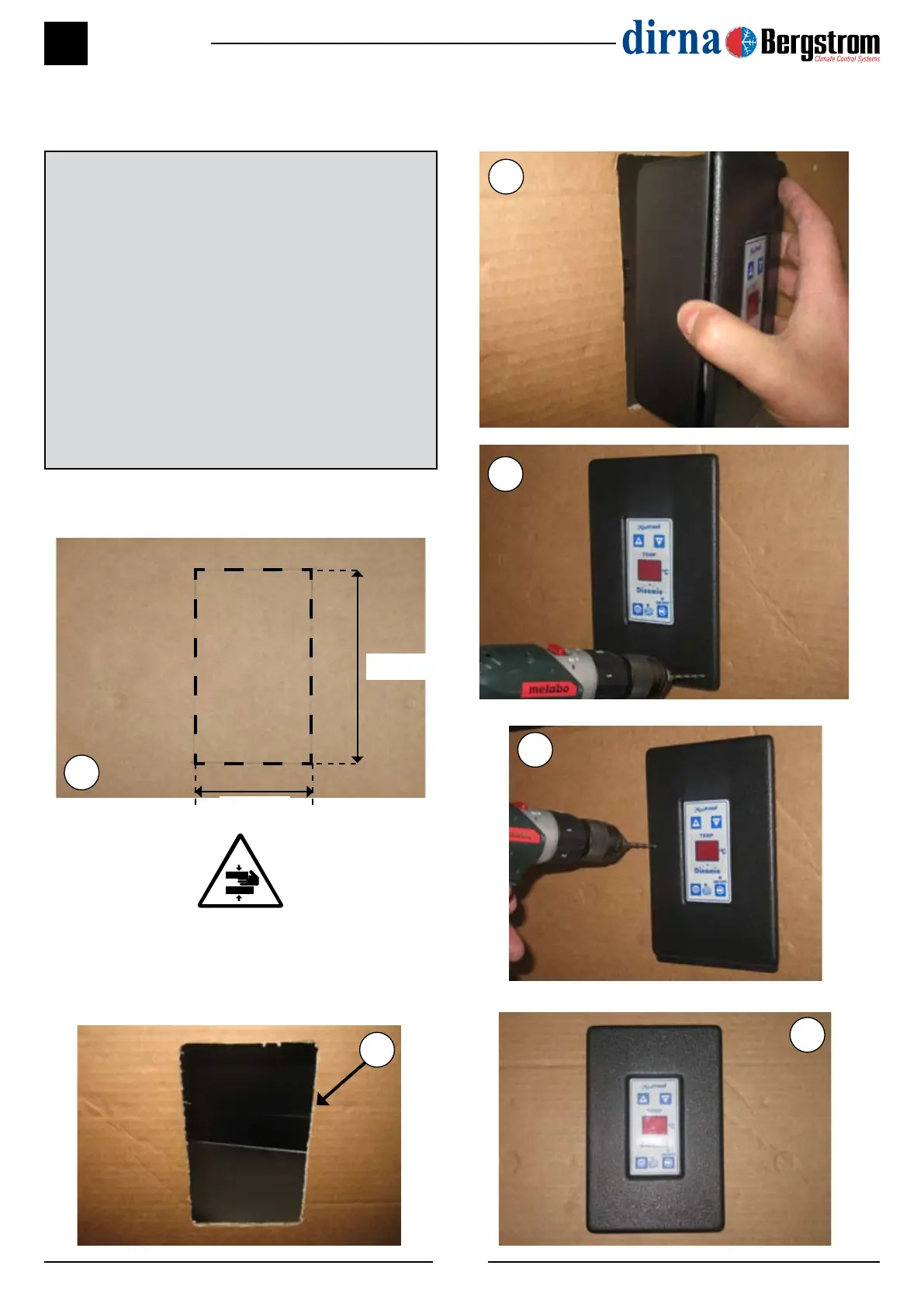

CONTROL PLATE ASSEMBLY
1- Position the plate in the most appropriate
place, accessible from the cabin.
2- Mark and cut at the indicated points.
3- Connect the extension wires to those of
the plate (see wiring and cable connection
diagram).
4- Introduce the cabling and plate unit through
the cut made in the vehicle dashboard.
5-
boreholes in the most appropriate place.
Secure with (4) 4.2 x 16 tapping screws.
