5

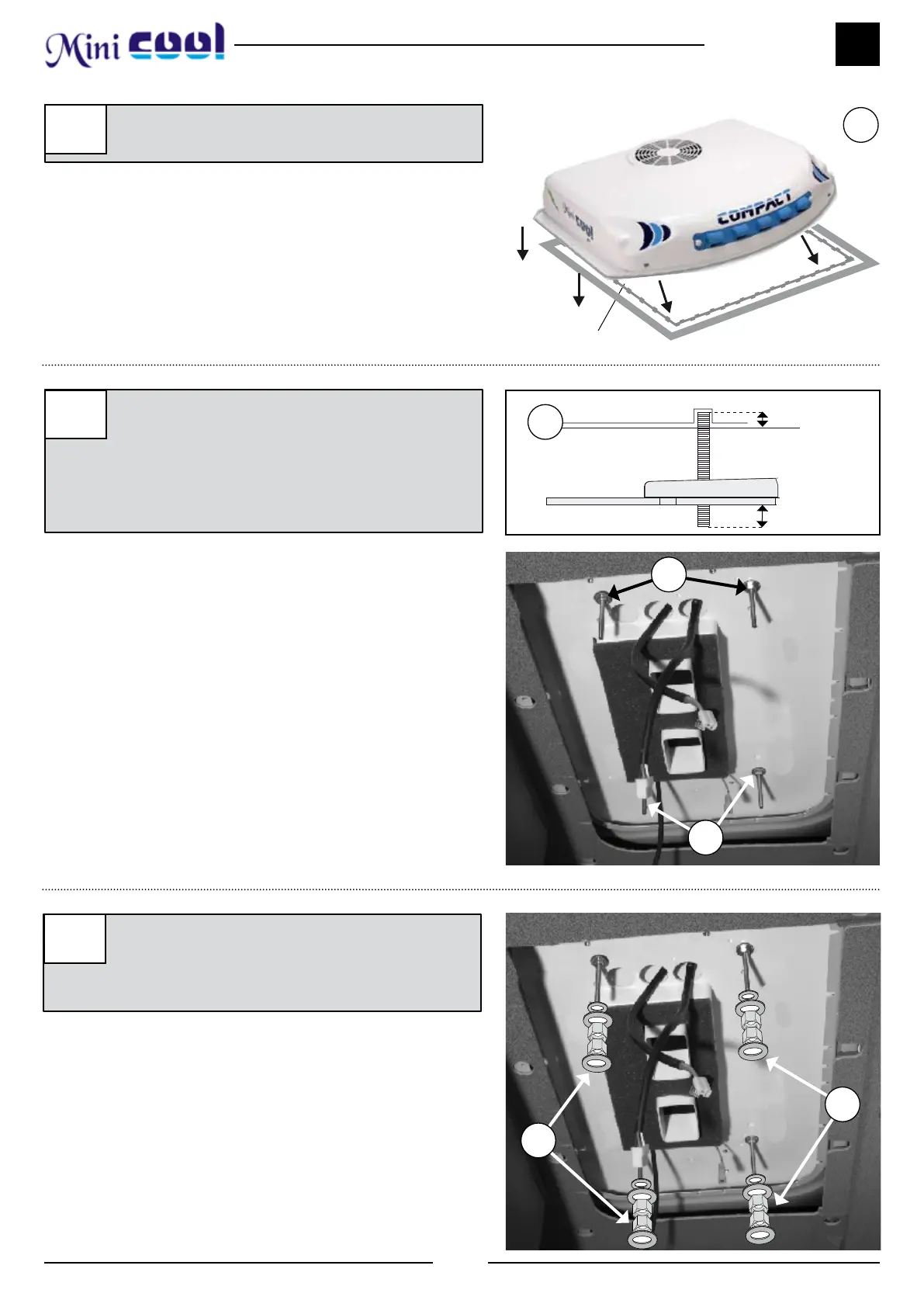

OUTSIDE CABIN:
Position Minicool in sun hatch hole.
5
Sun hatch
6
INSIDE CABIN:
Screw about 5 mm (4) 8/125x70,100 or 120
mm studs, the exact measure is chosen after
the fastening supports have been presented
and taking into account that studs must stick
out of lower part about 10 mm.
6
10 mm
5 mm
Bracket
Stud
Unit base
6
6
7
Place (1) Ø 7 rubber washer, (1) Ø 8 wide wing
at washer, (2) M8 nuts and (1) Ø 8 wide wing
at washer on each of the previously mentioned
studs.
7
7
dirna, s.a.
EN
