9a

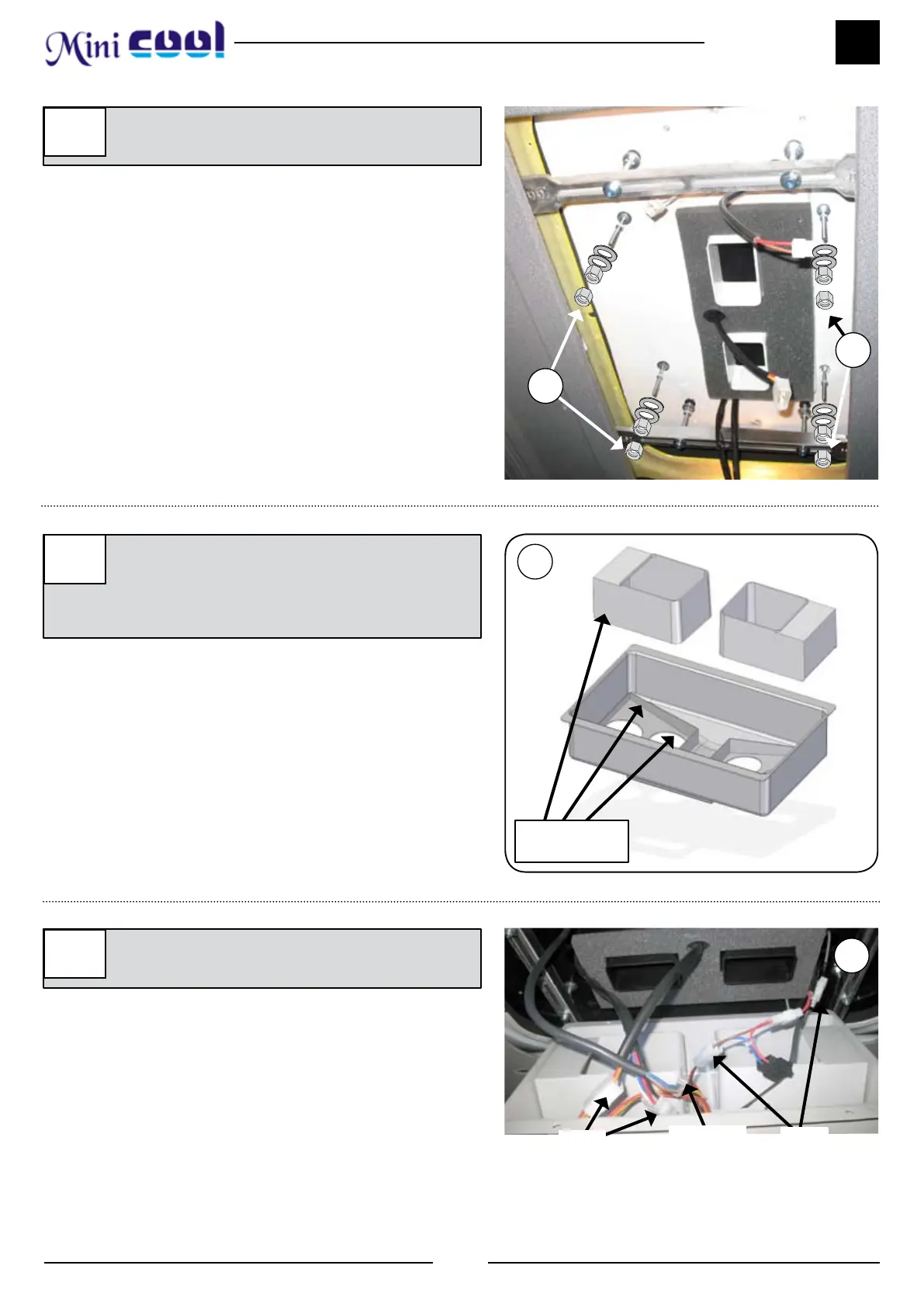

Place (2) fastening supports, with (1) washer
and (1) M6 nut, without tightening.
9a
9a
9b
Glue the two air ducts to front, using
LOCTITE superglue 3 or similar, so that set
assembly is easier and to insure the cold air
ows through the louvers.
Area where glue
is applied
9b
9c
Connect (2) 4-way boxes and (3) 2-way ones
of the evaporator front to the Unit ones.
9c
4 ways
T - 2 ways
2 ways
