25

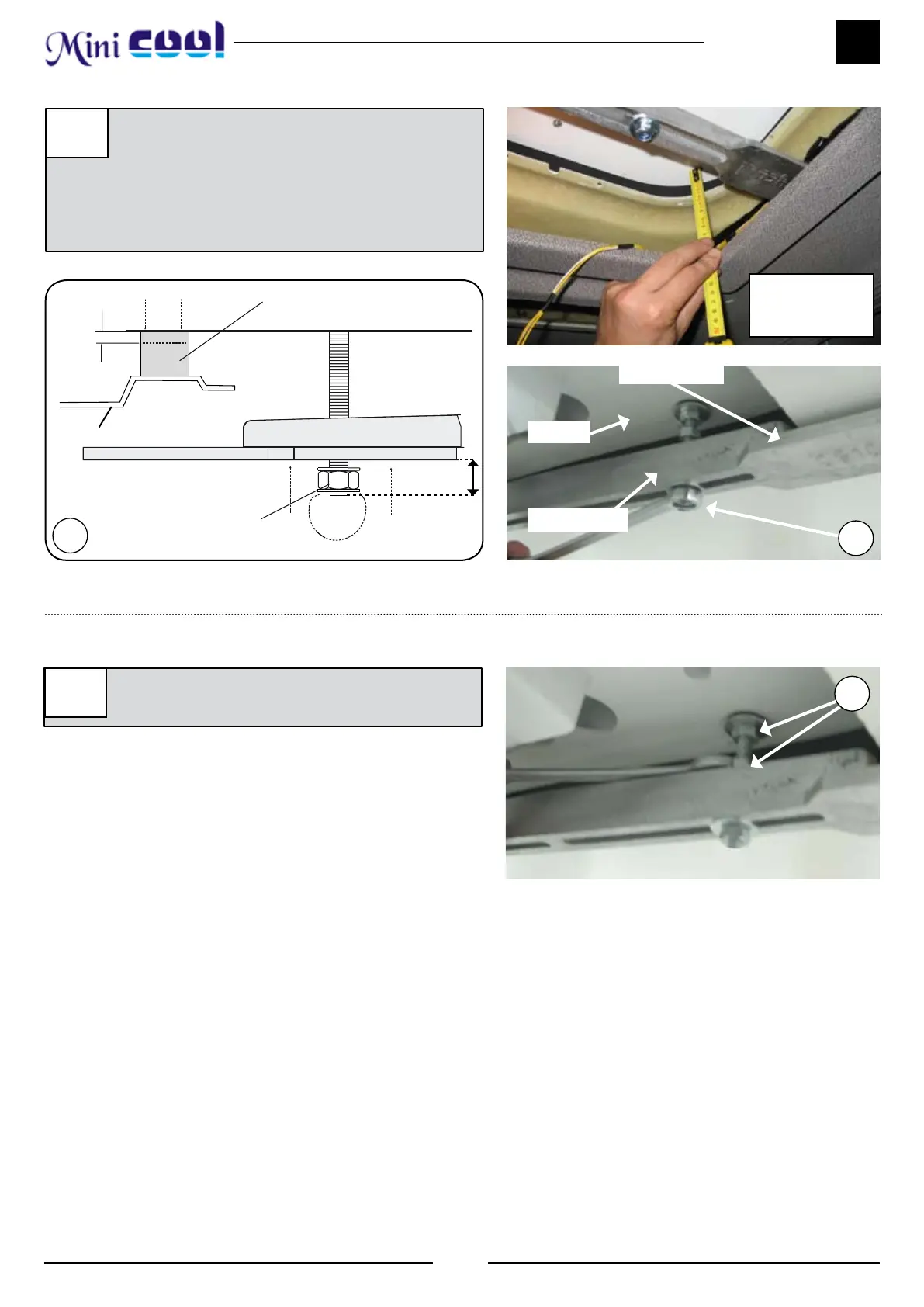

Check compression
thickness using a tape
measure in the four
corners.
EPDM gasket
13
Base
EPDM Joint
14
Fasten selocked nut until
EPDM gasket is compressed
between 3 and 6 mm.
3-6mm.
Cabin roof
EPDM gasket
10 mm*
(*) (approx. after tightening)
13
Fasten supports tightening nuts until outside
EPDM joint (Point 4a) of equipment is com-
pressed, between 3 and 6 mm;
Important: To avoid water from ltering in-
side cabin, check EPDM joint tightening with
Minicool base, as indicated on diagram.
13
14
Tighten (4) M8 nuts to support and (4) to Unit
base.
