Ditch Witch 1030 User Manual

10 1030/1230 - CONTROLS
CONTROL CONSOLE DESCRIPTIONS
10 1030/1230 - CONTROLS
CONTROL CONSOLE DESCRIPTIONS
CONTROL CONSOLE DESCRIPTIONS
Bail
This start interlock control engages and disengages hydraulic
system.
• Move down into handlebar to engage.
• Release to disengage.

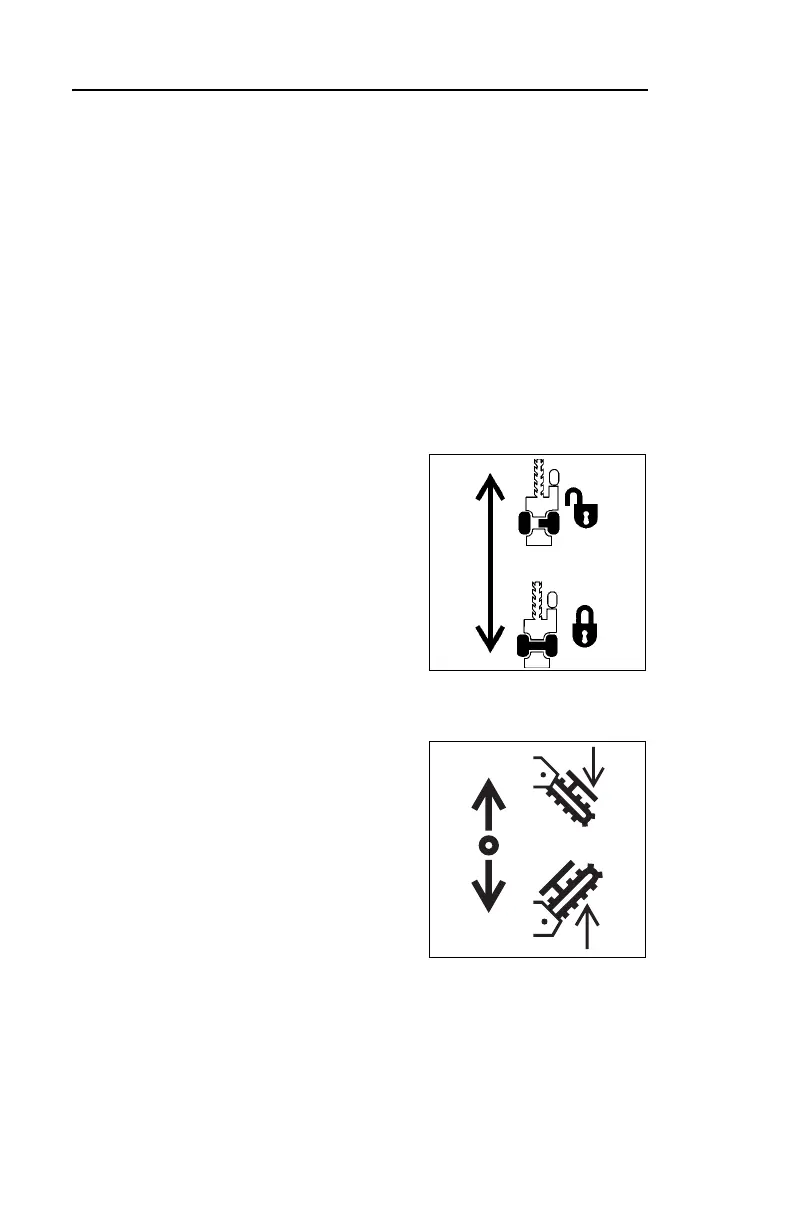

Axle Lock (Blue)
This lever locks or unlocks axle.
• Push to unlock. Use unlocked
axle to manuever trencher.
• Pull to lock. Use locked axle
for straight trenching and
driving over rough terrain.
Digging Boom Control (Green)
This lever raises or lowers digging
boom when bail is engaged.
• Push to lower boom.
• Pull to raise boom.
ic1034.tif
ic0127h.eps
CONTROL CONSOLE DESCRIPTIONS
Bail
This start interlock control engages and disengages hydraulic
system.
• Move down into handlebar to engage.
• Release to disengage.
Axle Lock (Blue)
This lever locks or unlocks axle.
• Push to unlock. Use unlocked
axle to manuever trencher.
• Pull to lock. Use locked axle
for straight trenching and
driving over rough terrain.
Digging Boom Control (Green)
This lever raises or lowers digging
boom when bail is engaged.
• Push to lower boom.
• Pull to raise boom.
ic1034.tif
ic0127h.eps

Ditch Witch 1030 Specifications

General

Fuel	Diesel
Transmission	Hydrostatic
Digging Depth	48 in (121.9 cm)
Trenching Width	6 inches
Drive System	4WD
