22 750/752 Tracker - OPERATION
BEACON TRACKING MODES
22 750/752 Tracker - OPERATION
BEACON TRACKING MODES
Calibration Procedure
1. Select beacon frequency,
if necessary.

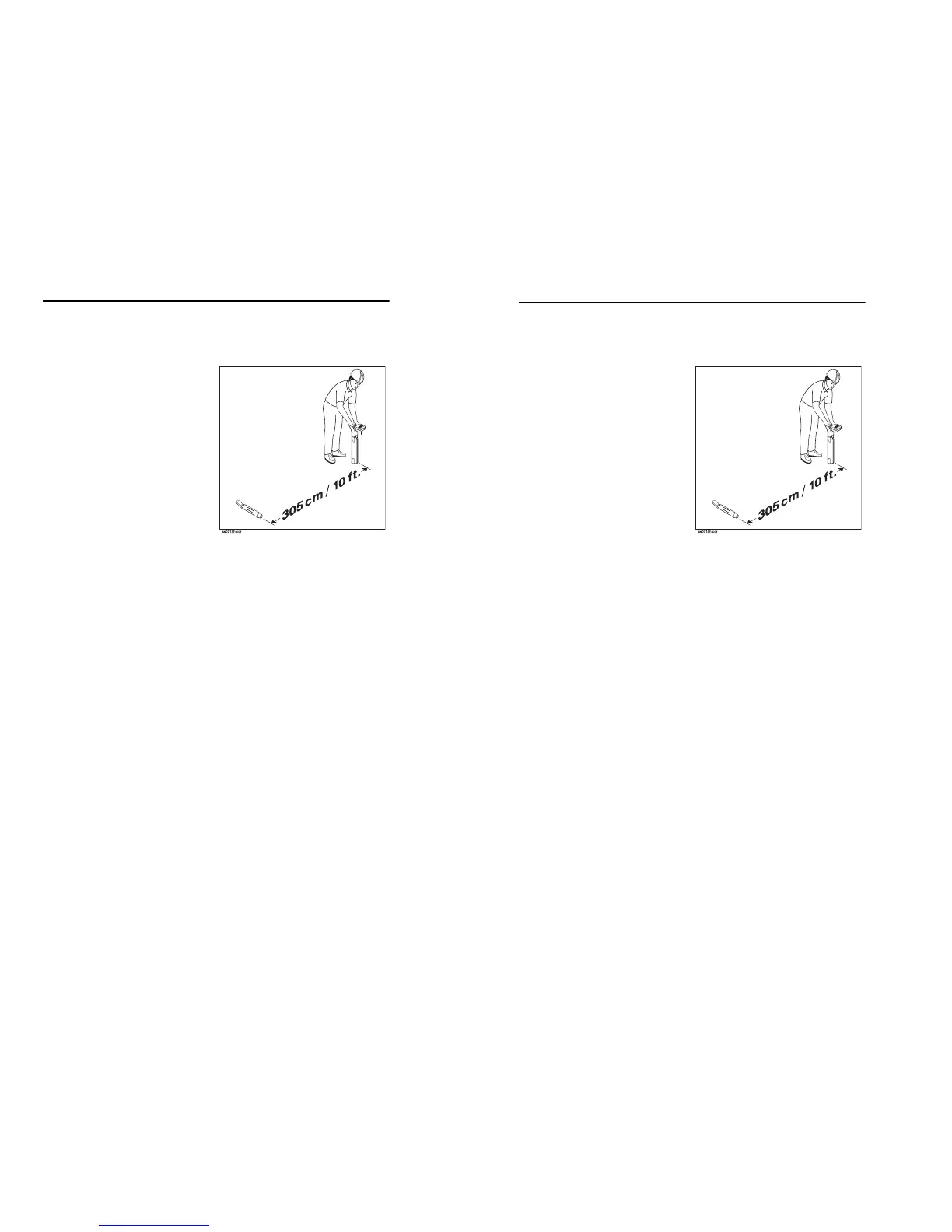

2. Install beacon into drill
head and place on
ground exactly 10’ (3 m)
away from tracker. Make
sure no metal objects
including drilling unit and
drill pipe are within 20’ (6
m) of tracker and
toolhead.
3. Position tracker parallel
to center of drill head.
4. Turn tracker on and press and hold depth and up arrow keys
until calibration mode is entered. Release keys.
5. Verify calibration by moving tracker 15’ (4.5 m) away from
toolhead. Check depth. If reading is not 15’ (4.5 m),
recalibrate tracker.
6. Repeat for other frequency, if needed.
IMPORTANT: Some beacons transmit more than one frequency.
Calibrate tracker for each frequency separately.
Calibration Procedure
1. Select beacon frequency,
if necessary.
2. Install beacon into drill
head and place on
ground exactly 10’ (3 m)
away from tracker. Make
sure no metal objects
including drilling unit and
drill pipe are within 20’ (6
m) of tracker and
toolhead.
3. Position tracker parallel
to center of drill head.
4. Turn tracker on and press and hold depth and up arrow keys
until calibration mode is entered. Release keys.
5. Verify calibration by moving tracker 15’ (4.5 m) away from
toolhead. Check depth. If reading is not 15’ (4.5 m),
recalibrate tracker.
6. Repeat for other frequency, if needed.
IMPORTANT: Some beacons transmit more than one frequency.
Calibrate tracker for each frequency separately.
