FX20 Operator’s Manual Controls - 23
Machine Controls
CMW
Machine Controls

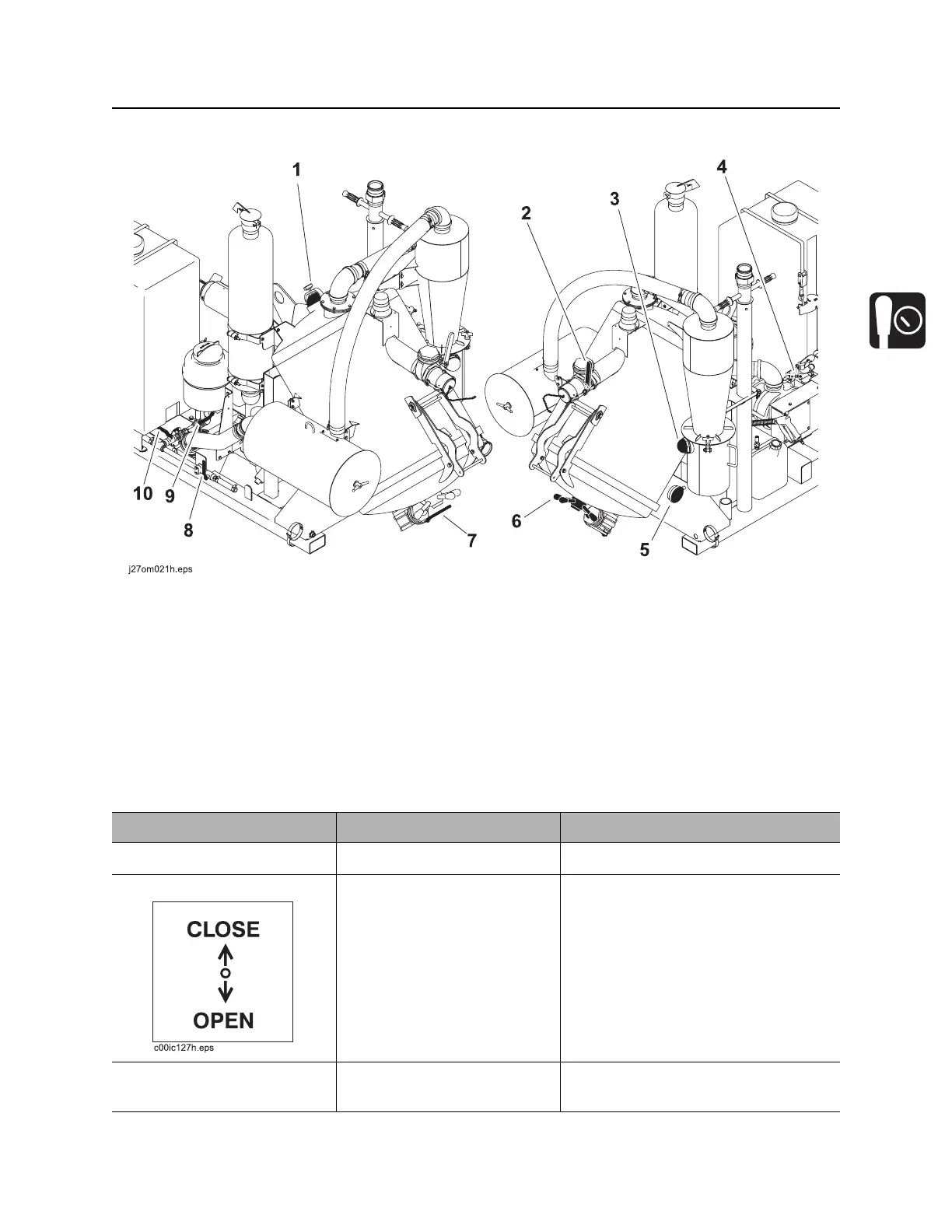

1. Debris tank sight glass
2. Inlet valve
3. Cyclonic filter sight glass
4. Battery disconnect switch
5. Vacuum gauge
6. Tank door handle
7. Drain valve
8. Water tank drain valve
9. Antifreeze tank supply valve
10. Water tank supply valve
Item Description Notes
1. Debris tank sight glass
2. Inlet valve To close valve (stop suction),
rotate up.
To open valve (start suction),
rotate down.
3. Cyclonic filter sight
glass
