Reel Carrier - 110 RT80Q Operator’s Manual
Setup
CMW
Setup

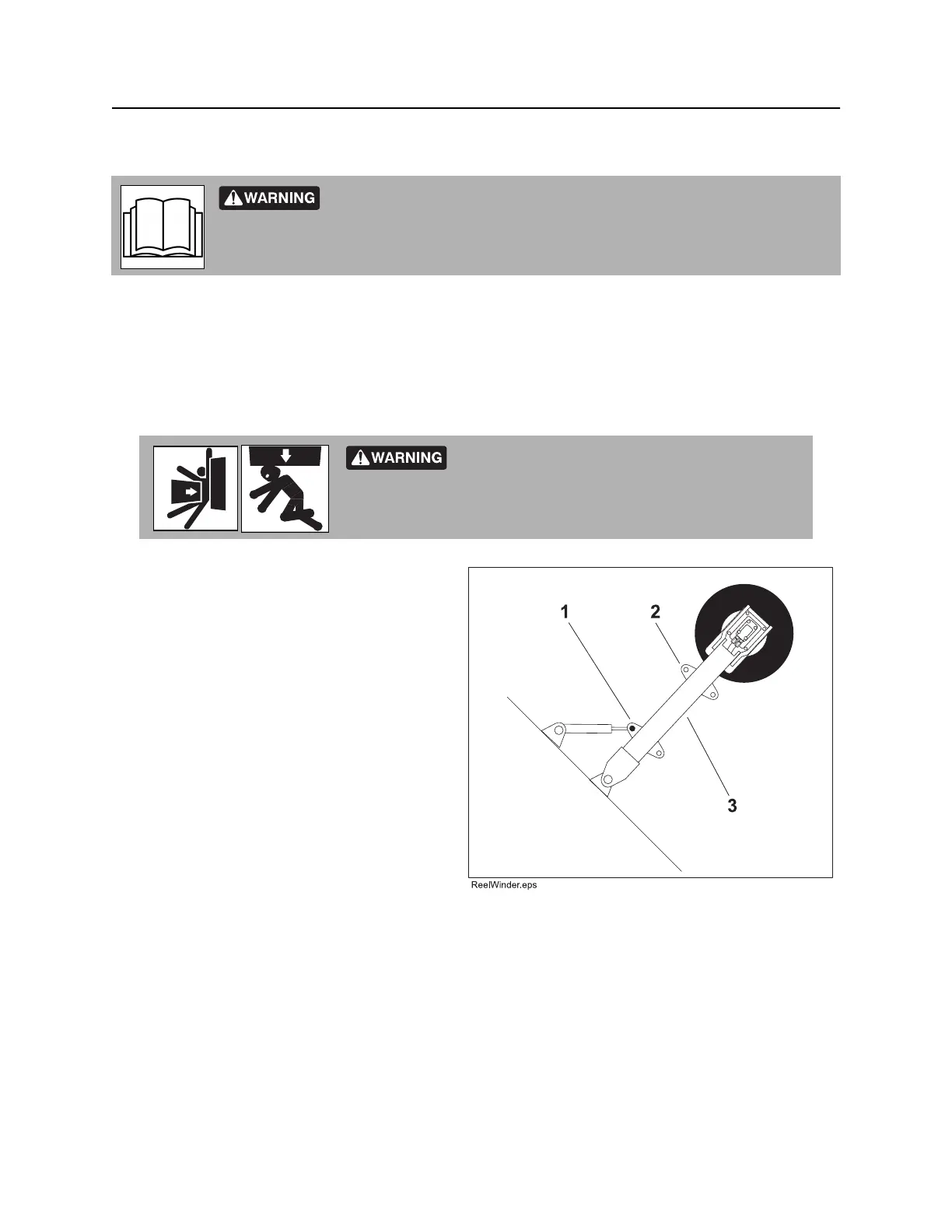

Adjust Reel Winder
1. Lower reel carrier.
2. Turn ignition switch to STOP.
3. Remove reel.
4. While supporting lever arm (3), remove
bolt (1) that attaches hydraulic lift cylinder
to lever arm.
5. Attach cylinder rod to the correct mounting
hole for your diameter reel:
• For 2-5’ (61-152 cm ) diameter reels,
attach to bottom mounting hole (1).
• For 5-7’ (152-213 cm ) diameter reels,
attach to top mounting hole (2).
Incorrect procedures can result in death, injury, or property damage.
Learn to use equipment correctly.
Crushing weight could cause death or serious
injury. Use proper procedures and equipment or stay away.
