Controls - 64 RT80Q Operator’s Manual
Drill Controls
CMW
Drill Controls

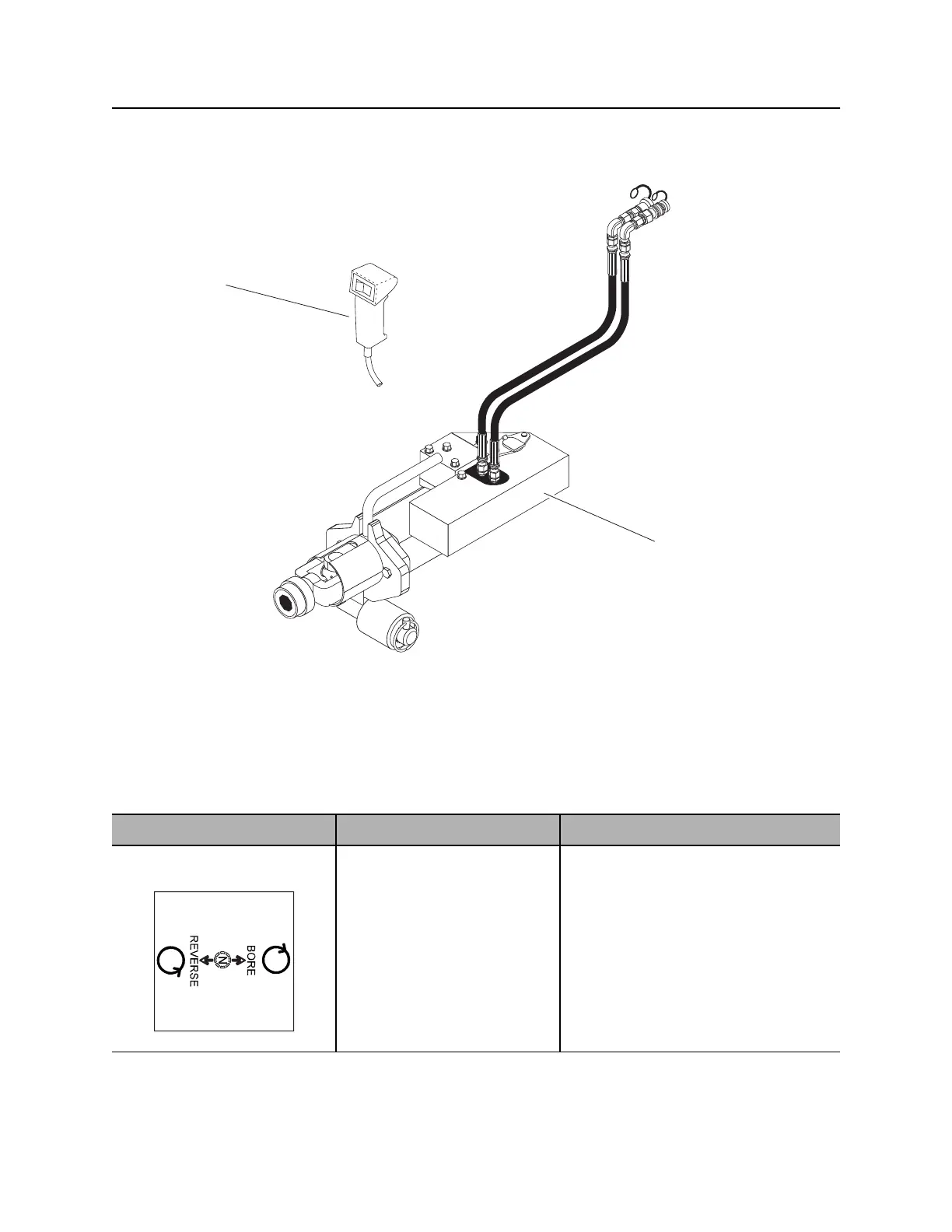

1. Drilling attachment control 2. Drilling attachment
Item Description Notes
1. Drilling attachment
control
To rotate clockwise, press
bore.
To rotate counterclockwise,
press reverse.
EMERGENCY SHUTDOWN:
Release all controls and turn
ignition switch to STOP.
IMPORTANT: Always rotate
clockwise during drilling and
backreaming. Rotate
counterclockwise only to dislodge a
dry bore bit or reamer that has seized
in the bore hole.
Switch should return to neutral
position when released.
t33om063w.eps
2
1
c00ic655w.eps
