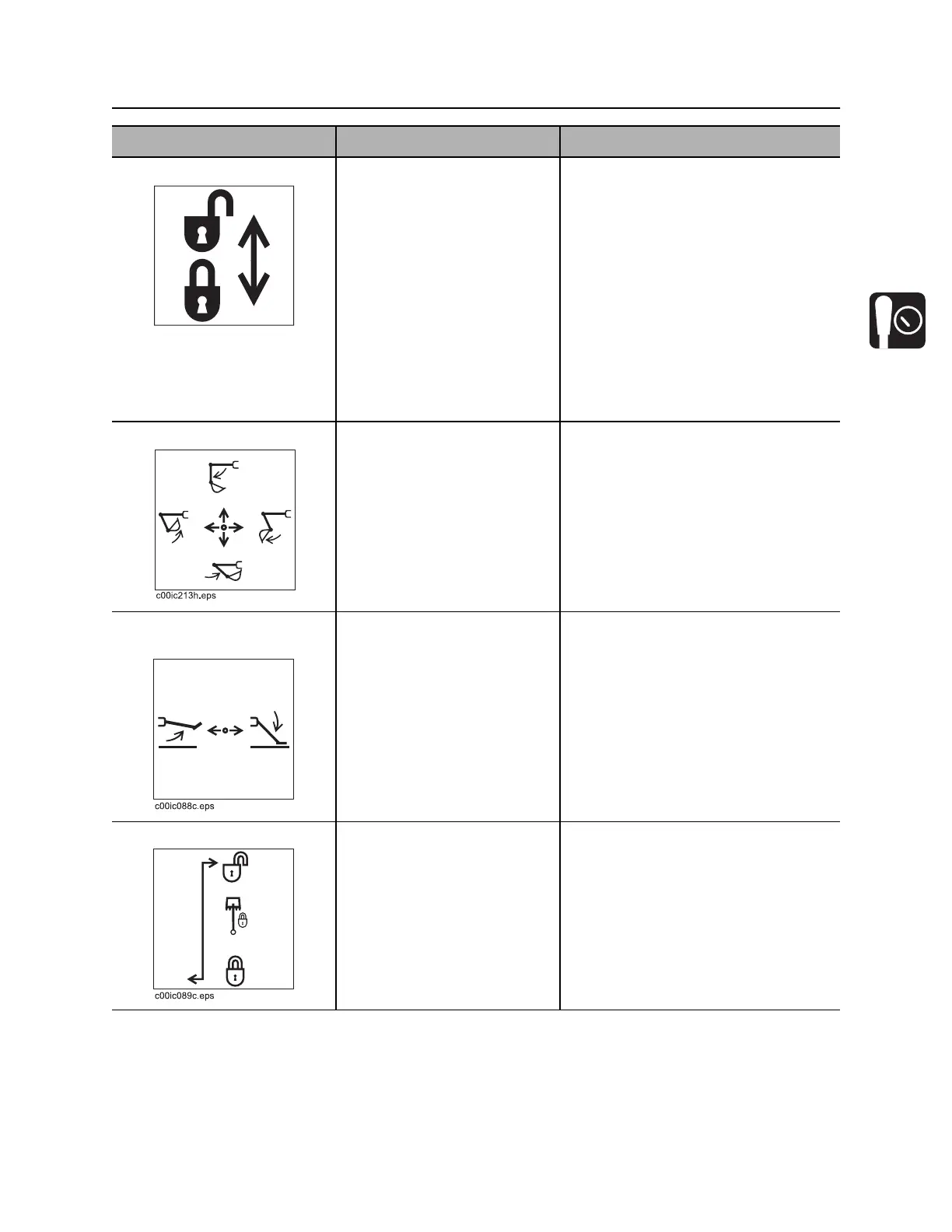

RT80Q Operator’s Manual Controls - 63
Backhoe Console
CMW
9. Boom stow lock To lock:
• Raise boom fully.
• Pull stow lock handle.
• Lower boom slightly to
engage lock.
To unlock:
• Raise boom slightly.
• Push stow lock handle to
release lock.
Use this control to lock boom in the up
position.
NOTICE: Always lock boom during
transport.
10. Bucket/dipper control To open bucket, move right.
To close bucket, move left.
To move dipper in, pull.
To move dipper out, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
11. Right stabilizer control
switch
To lower, press right.
To raise, press left.
12. Boom swing lock To lock, push down and into
hook.
To unlock, pull up and into
hook.
Backhoe can be locked in several
swing positions. If lock will not
engage, swing backhoe slightly left or
right until lock engages.
NOTICE: Always lock boom during
transport.
Item Description Notes
c00ic646w.eps
