RT80Q Operator’s Manual
Service - 185
As Needed

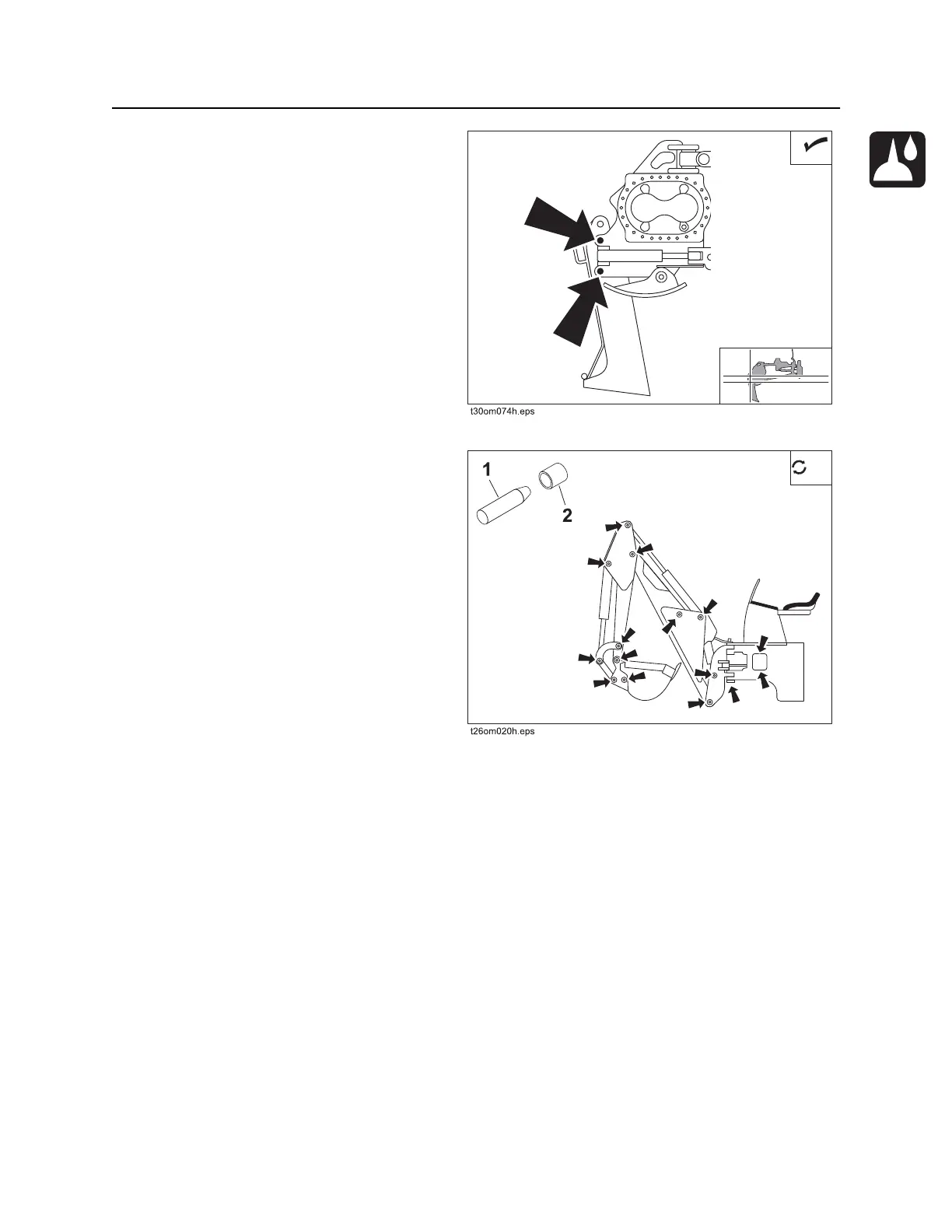

Check Plow Blade Bolts
Check plow blade bolts as needed. If loose, use
Loctite® 242 (blue) and tighten bolts to 210 ft•lb
(285 N•m).
