RT80Q Operator’s Manual Specifications - 195
H832 Plow
H832 Plow
Dimensions U.S. Metric
A Cover depth* 36 in 915 mm
A’ Penetration* 40 in 1.02 m
A3’ Angle of departure, transport, no blade 46.7° 46.7°
A3 Angle of departure, transport, 24” (610 mm) blade 25.3° 25.3°
Angle of departure, transport, 30” (760 mm) blade 29.8° 29.8°
H Angle of depression, plow max.
H2 Height transport 97 in 2.46 m
J Blade ground clearance, 30” (760 mm) blade 33.1 in 840 mm
L2 Attachment length, fully lowered, no blade 96.7 in 2.46 m
L2’ Attachment length, fully raised, no blade 70 in 1.78 m
Plow swing angle 85° 85°
Inclusive blade steer angle 89° 89°

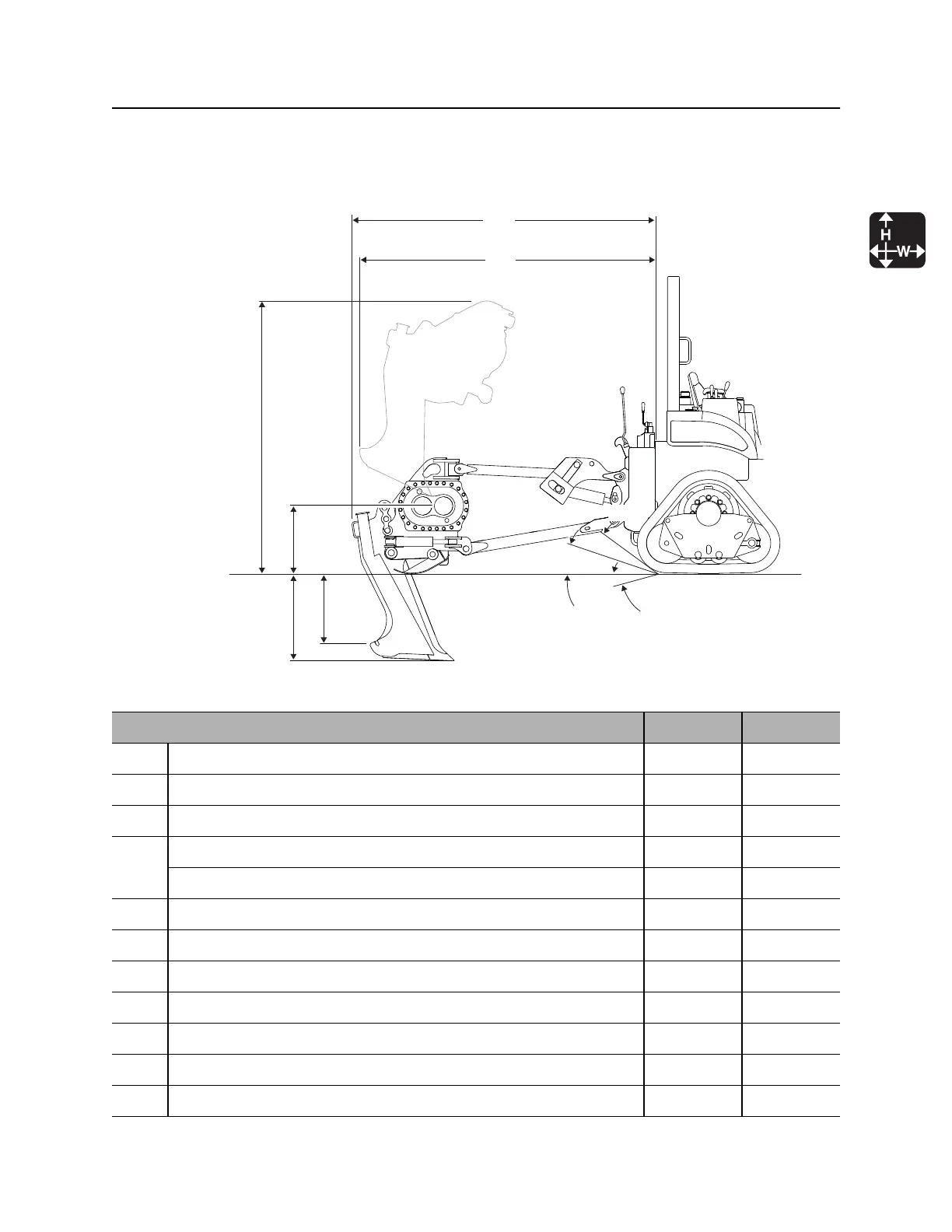

t33om058w.eps
L2
L2
L2
L2’
L2’
L2’
H2
H2
H2
J
J
A’
A
A’
A
A
A3’
A3’
A3’
A3
A3
A3
H
H
