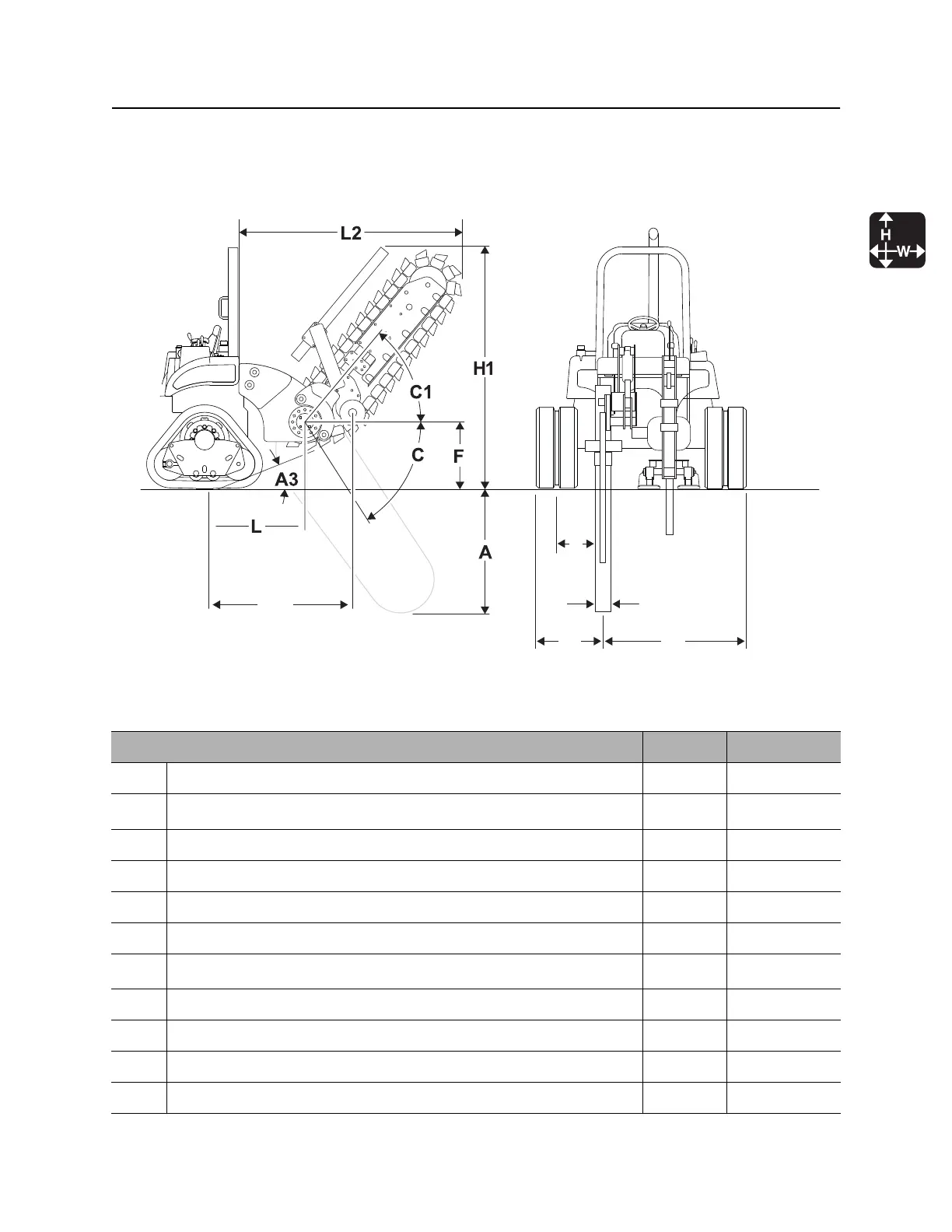

RT80Q Operator’s Manual Specifications - 197
H853 Combo
H853 Combo
Trencher
Dimensions U.S. Metric
A Trench depth, maximum 69 in 1.76 m
A3
Angle of departure 29° 29°
B Trench width 6-12 in 150-300 mm
C1 Boom travel up 49° 49°
C Boom travel down 56° 56°
F Headshaft height, digging chain 32.7 in 831 mm
L
2
Transport length (48” boom) 92.5 in 2.4 m
H1 Transport height (48” boom) 106 in 2.7 m
E1 Center of trench to outside edge, left* 13 in 330 mm
E2 Center of trench to outside edge, right 76 in 1.93 m
N Spoil discharge reach, minimum 19 in 480 mm
t33om059w.eps
L3
N
B
E1 E2
