Ditch Witch RT80Q

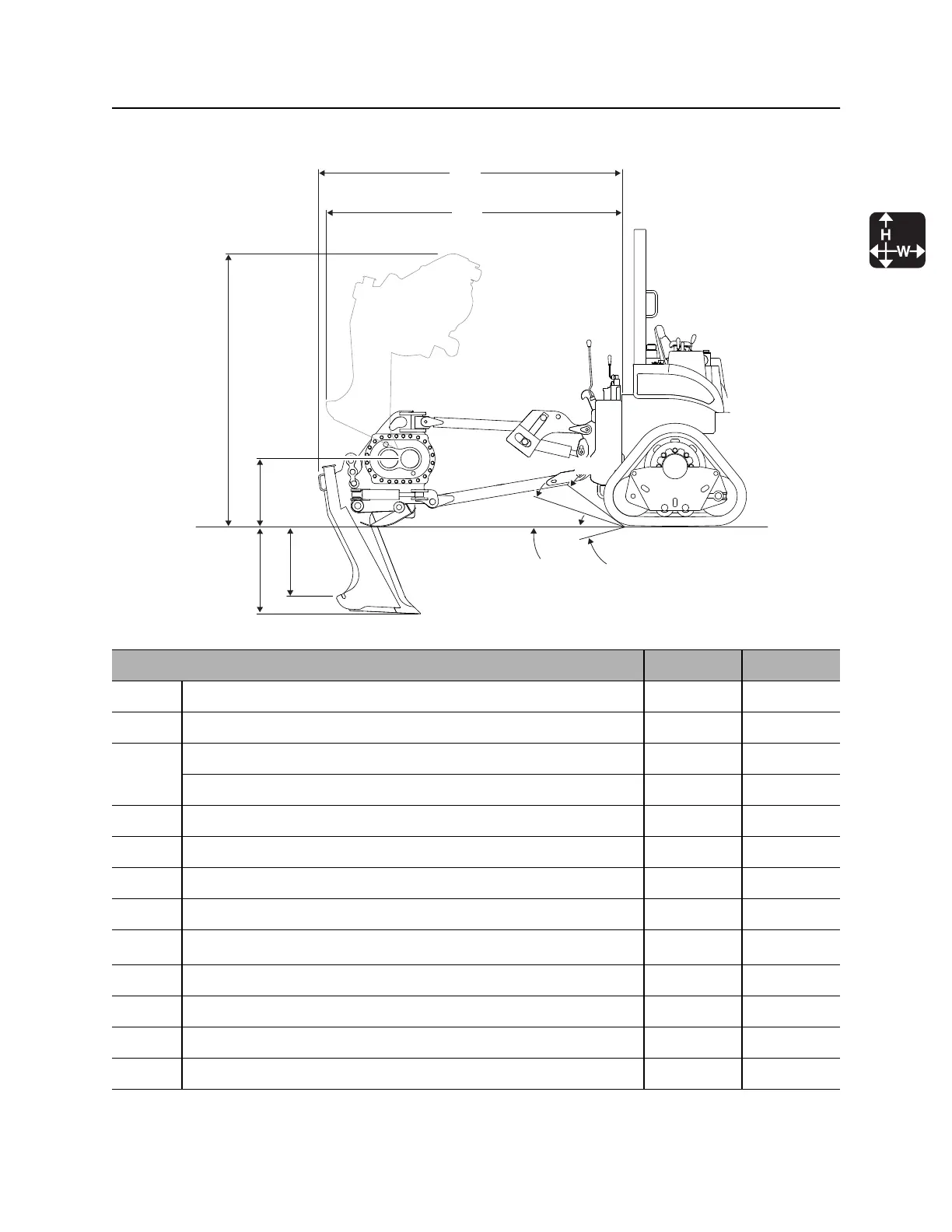

RT80Q Operator’s Manual Specifications - 199
H853 Combo
Plow
Dimensions U.S. Metric
A Cover depth* 36 in 915 mm
A’ Penetration* 40 in 1.02 m
A3
Angle of departure, transport, 24” (610-mm) blade 25.3° 25.3°
Angle of departure, transport, 30” (760-mm) blade 29.8° 29.8°
A3’ Angle of departure, transport, no blade 46.7° 46.7°
H Angle of depression, plow max. 7° 7°
H2 Height, transport 97 in 2.6 m
J Blade ground clearance, 30” (760-mm) blade 33.1 in 841 mm
L2
Attachment length, fully lowered, no blade 96.7 in 2.5 m
L2’ Attachment length, fully raised, no blade 70 in 1.8 m
Plow swing angle, left 0° 0°
Plow swing angle, right 44° 44°
Inclusive blade steer angle 89° 89°
t33om060w.eps
L2
L2
L2
L2’
L2’
L2’
H2
H2
H2
J
J
A’
A’
A’
A
A
A3’
A3’
A3’
A3
A3
A3
H
H
