RT80Q Operator’s Manual Controls - 23
Center Console
CMW

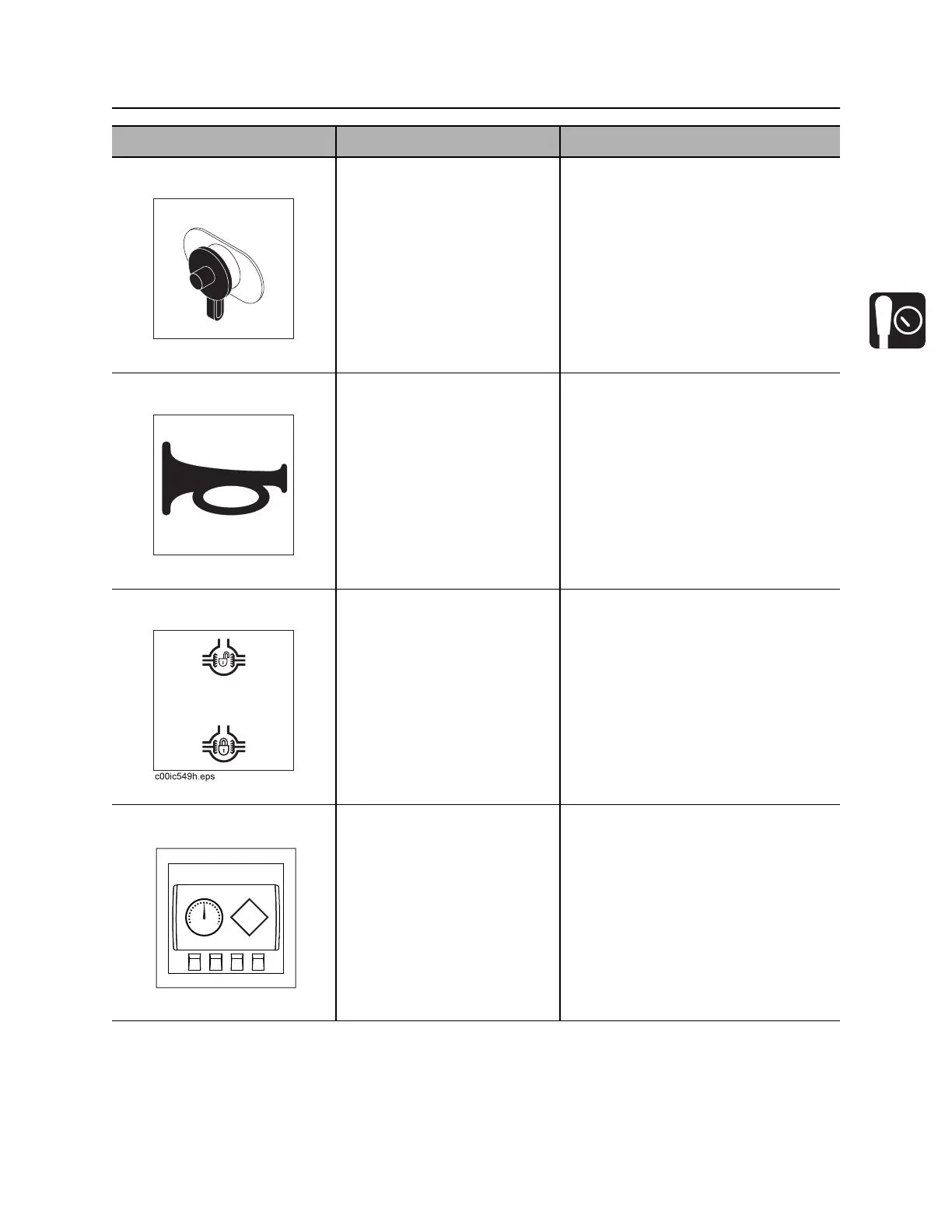

2. Auxiliary outlet Provides power for other
equipment.
Power output is 12V, 10A.
3. Horn To sound horn, press.
4. Axle lock switch To lock rear axle, press top.
To unlock rear axle, press
bottom.
NOTICE: To prevent mechanical
damage, stop tractor before operating
axle lock switch.
IMPORTANT: After pressing switch to
unlock axle, it may be necessary to
move tractor 6’ (2 m) in reverse to
fully unlock.
5. Graphic display Graphic symbols are
displayed for indicators and
conditions previously shown
with gauges.
See more information in “Graphic
Display” on page 26.
