Controls - 42 RT80Q Operator’s Manual

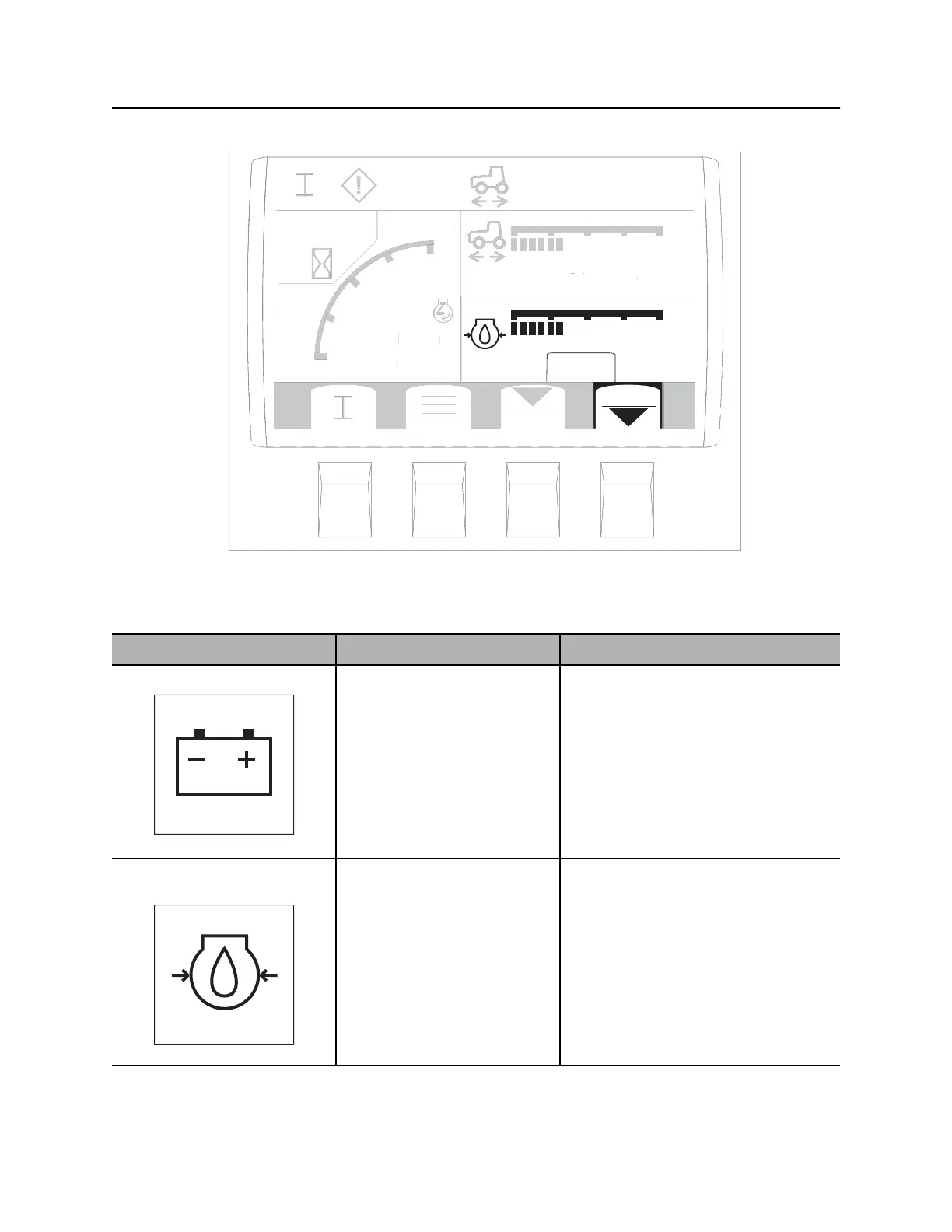

Graphic Display
CMW
Lower Pane
Use arrow keys to toggle gauge functions and upper or lower pane.
Item Description Notes
Volts screen icon Bar graph displays system
voltage.
Should show 12-14V with engine
running.
Engine oil pressure screen
icon
Bar graph displays engine oil
pressure.
Indicator will light if pressure
is too low.
Normal operating pressure is 15-80
psi (1.03 - 5.5 bar).
If pressure is low:
• Check oil level.
• If pressure is still low, consult
engine manual.
0 % 100
psi
0 1004
0
rpm
0
3000
0
M
!
t33om086w.eps
c00ic619w.eps
c00ic620w.eps
