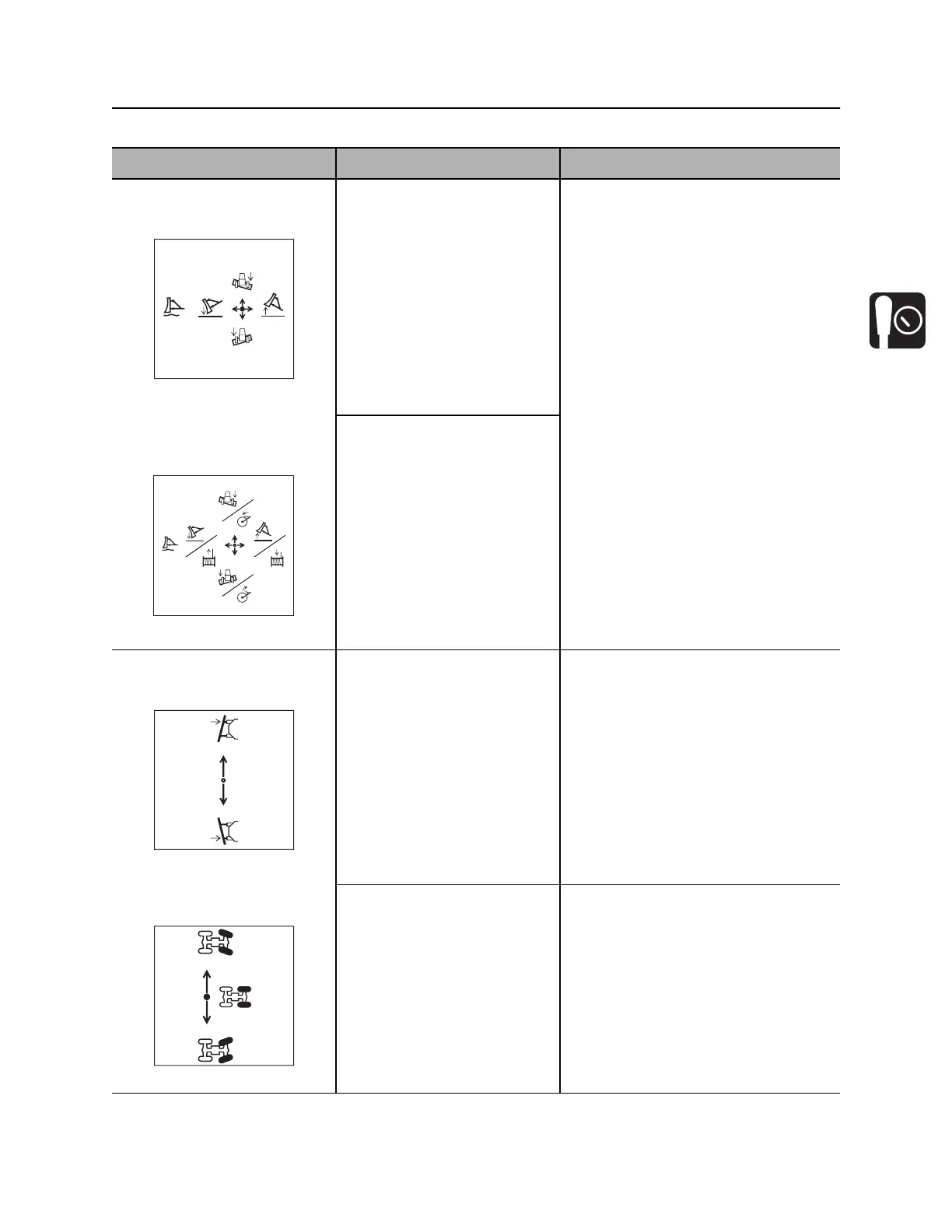

RT80Q Operator’s Manual Controls - 45
Right Console
CMW
Item Description Notes
1. Backfill blade lift/tilt
function control
Backfill blade mode:
• To lower, move forward.
• To float, move forward to
end.
• To raise, move backward.
• To tilt right side down,
move right.
• To tilt left side down,
move left.
Reel winder mode selector switch on
center console changes function to
control reel winder arm lift and winder
direction.
Reel winder function
control
Reel winder mode:
• To unwind, move forward.
• To wind, move backward.
• To lower reel winder arm,
move right.
• To raise reel winder arm,
move left.
2. Backfill blade angle
control
Backfill blade:
• To angle right, move right.
• To angle left, move left.
3. Rear steer control To move rear tracks left,
move right.
To center tracks, move to
center position.
To move rear tracks right,
move left.
NOTICE:
• Tracks move when you move
control. To stop movement,
release control.
• Visually verify track position
c00ic625w.eps
c00ic207h.eps
c00ic626w.eps
c00ic627w.eps
