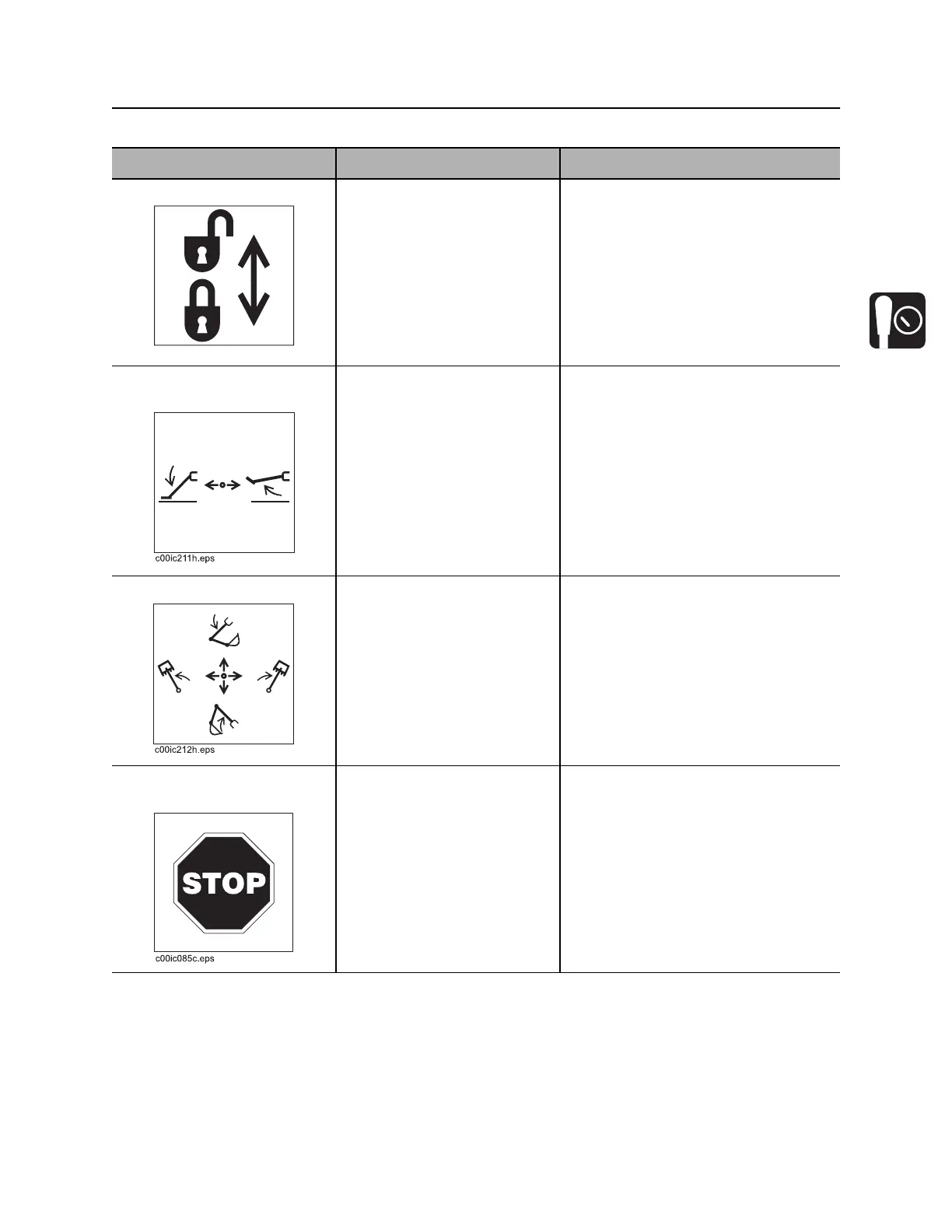

RT80Q Operator’s Manual Controls - 61
Backhoe Console
CMW
Item Description Notes
1. Stabilizer lock Step on pedal to release.
Locks automatically as
stabilizer is fully raised.
2. Left stabilizer control
switch
To lower, press left.
To raise, press right.
3. Boom/Swing control To swing boom left, move left.
To swing boom right, move
right.
To raise boom, pull.
To lower boom, push.
Control can perform more than one
action at a time. By “feathering” the
control, operator can combine
backhoe operations.
NOTICE: Do not operate with
backhoe in the stowed (upright)
position.
4. Remote engine stop
switch
To stop engine immediately,
press
IMPORTANT: For normal engine
shutdown, use ignition switch.
