1592020130 XR03-04CX GB r1.2 27.07.2015 XR03CX – XR04CX 3/3
12.1 ALARM RECOVERY
Probe alarms P1” and “P2” start some seconds after the fault in the related probe; they automatically
stop some seconds after the probe restarts normal operation. Check connections before replacing
the probe. Temperature alarms “HA” and “LA” automatically stop as soon as the temperature returns
to normal values.
Alarms “EA” and “CA” (with iF=bA) recover as soon as the digital input is disabled.
13 TECHNICAL DATA
Housing: self extinguishing ABS.
Case: frontal 32x74 mm; depth 50mm;
Mounting: panel mounting in a 71x29mm panel cut-out
Protection: IP20; Frontal protection: IP65
Connections: Screw terminal block 2,5 mm
2
wiring.
Power supply: according to the model 110Vac 10%, 50/60Hz --- 230Vac 10%, 50/60Hz
Power absorption: 3.5 VA max
Display: 2 digits, red LED, 14,2 mm high; Inputs: Up to 2 NTC probes.
Digital input: free voltage contact (if present)
Relay outputs: compressor SPST 20(8)A 250Vac or 8(3) A 250Vac
defrost or Aux: SPDT 8(3) A 250Vac
Data storing: on the non-volatile memory (EEPROM).
Kind of action: 1B; Pollution grade: 2;Software class: A.;
Rated impulsive voltage: 2500V; Overvoltage Category: II
Operating temperature: 0÷60 °C; Storage temperature: -25÷60 °C.
Relative humidity: 2085% (no condensing).
Measuring and regulation range: NTC probe: -40÷110°C.
Resolution: 0,1 °C or 1°C or 1 °F (selectable); Accuracy (ambient temp. 25°C): ±0,1 °C ±1 digit

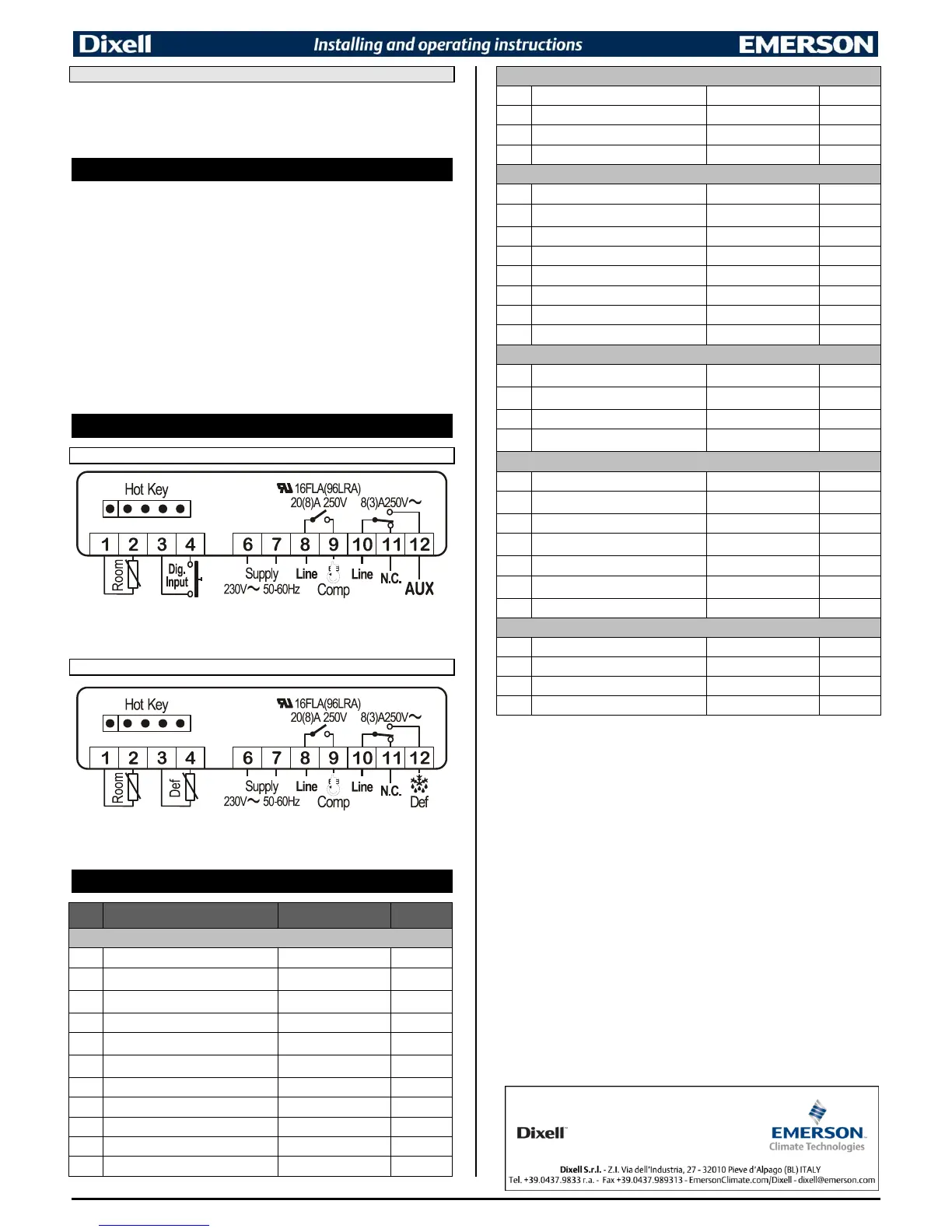

14 CONNECTIONS
XR03CX –20A o 8A Compressor
NOTE: In model with 110Vac the power supply has to be connected to 6-7 terminal
NOTE: The compressor relay is 20(8)A or 8(3)A depending on the model.
XR04CX –20A o 8A Compressor
NOTE: In model with 110Vac the power supply has to be connected to 6-7 terminal
NOTE: The compressor relay is 20(8)A or 8(3)A depending on the model.
15 DEFAULT SETTING VALUES
