You can use the below method to stop the motors in the event of an emergency.

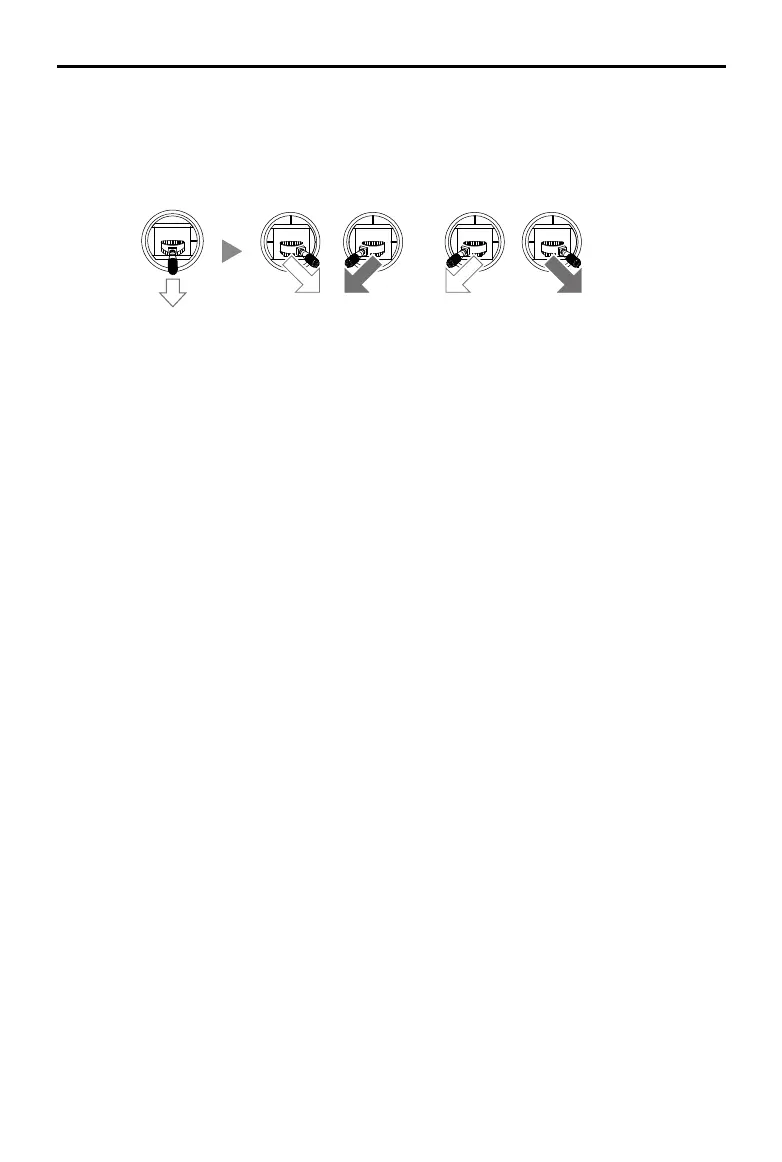

When the aircraft has landed, push the throttle down, then perform the CSC (Control Stick
Combination). The motors will stop immediately. Release both sticks once the motors have
stopped.
OR
Intelligent Flight Modes (using the Remote Controller)
Intelligent Flight Modes make it easier to operate the aircraft. If you are not using a Lightbridge 2
remote controller, you will need to congure a 3-position switch on the remote controller as the
Intelligent Flight Modes Switch, with each switch position corresponding to one of the following
modes: O, Course Lock, or Home Lock.
Course Lock
Use Course Lock to lock the current nose direction as the aircraft’s forward direction. The aircraft
will move in the locked direction regardless of its orientation (yaw angle).
Requirements: Compass must be working properly.
How to operate: 1. Fly the aircraft in the direction you wish to lock; 2. Toggle the Intelligent Flight
Modes Switch to the Course Lock position to lock the current nose direction as the aircraft’s
forward direction.
How to reset the parameters: Aircraft nose orientation cannot be reset during ight.
How to stop or exit the ight mode: Toggle the Intelligent Flight Modes Switch to the O position.
Home Lock
Pull the pitch stick backward to move the aircraft toward its recorded Home Point.
Requirements: Home point recorded; P-GPS mode enabled; distance between the aircraft and
Home Point is greater than 5 meters.
How to operate:
1. Fly the aircraft to the target position;
2. Toggle the Intelligent Flight Modes Switch from the O position to the Home Lock position for
more than three times to record the Home Point (Note: the Intelligent Flight Modes Switch
should stop at the O position);
3. Flip the Intelligent Flight Modes Switch to the Home Lock position to start the ight.
How to reset the parameter: Parameters cannot be reset during ight.
How to stop or exit the ight mode: Toggle the Intelligent Flight Modes Switch to the O position.

dji A3 Specifications

Flight Performance

hovering accuracy (vertical)	±0.5 m
hovering accuracy (horizontal)	±2 m
max wind resistance	10 m/s
max yaw angular velocity	150°/s
max pitch angle	35°
max ascent velocity	6 m/s
max descent velocity	6 m/s

Power and Environment

power consumption	Max 21 W (Typical Value: 0.41 A @ 51 V)
operating temperature	14° to 113° F (-10° to 45° C)
