7. USB-C Port (for device activation and
firmware updates)
8. AC Power Port
9. AC Power Dustproof Cover
10. GND Port (with a diameter of 4 mm)
Use the cable as shown below to connect
the GND port and the ground.
1
3
4
2
6
5

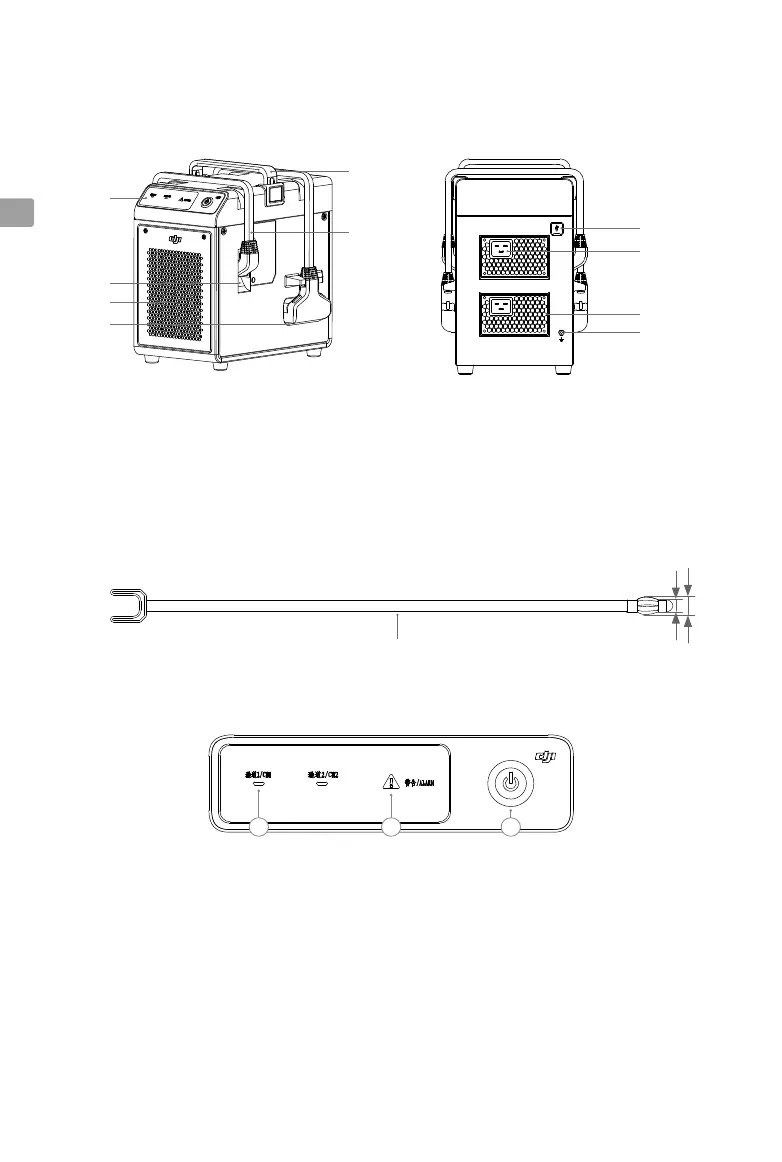

1. Operation Panel
2. Charging Cables Clamp
3. Front Panel Dustproof Cover
4. Charging Cables Storage
5. Handle
6. Charging Cable
3.8 mm
4.6 mm
14 AWG
1. Charging Status LED × 2
Each LED indicates the charging status
of the battery connected to a charging
cable. The numbers (1-2) correspond to
the position of the charging cable on the
battery station.
2. Warning Indicator
The warning indicator will be on if the battery
station detects any abnormalities. If the
indicator turns solid yellow, connect the
battery station to a remote controller using a
USB-C cable to confirm if there are any errors.
If the indicator turns solid red, stop charging
immediately. Only start to charge again once
the indicator is no longer solid red.
3. Power Button
Press to power the battery station on
and off. It is recommended to press the
power button and unplug the AC power
cable to power off the station.
Operation Panel
2
3
1
Overview
Battery Station
(not included)
