INSPIRE 2
User Manual

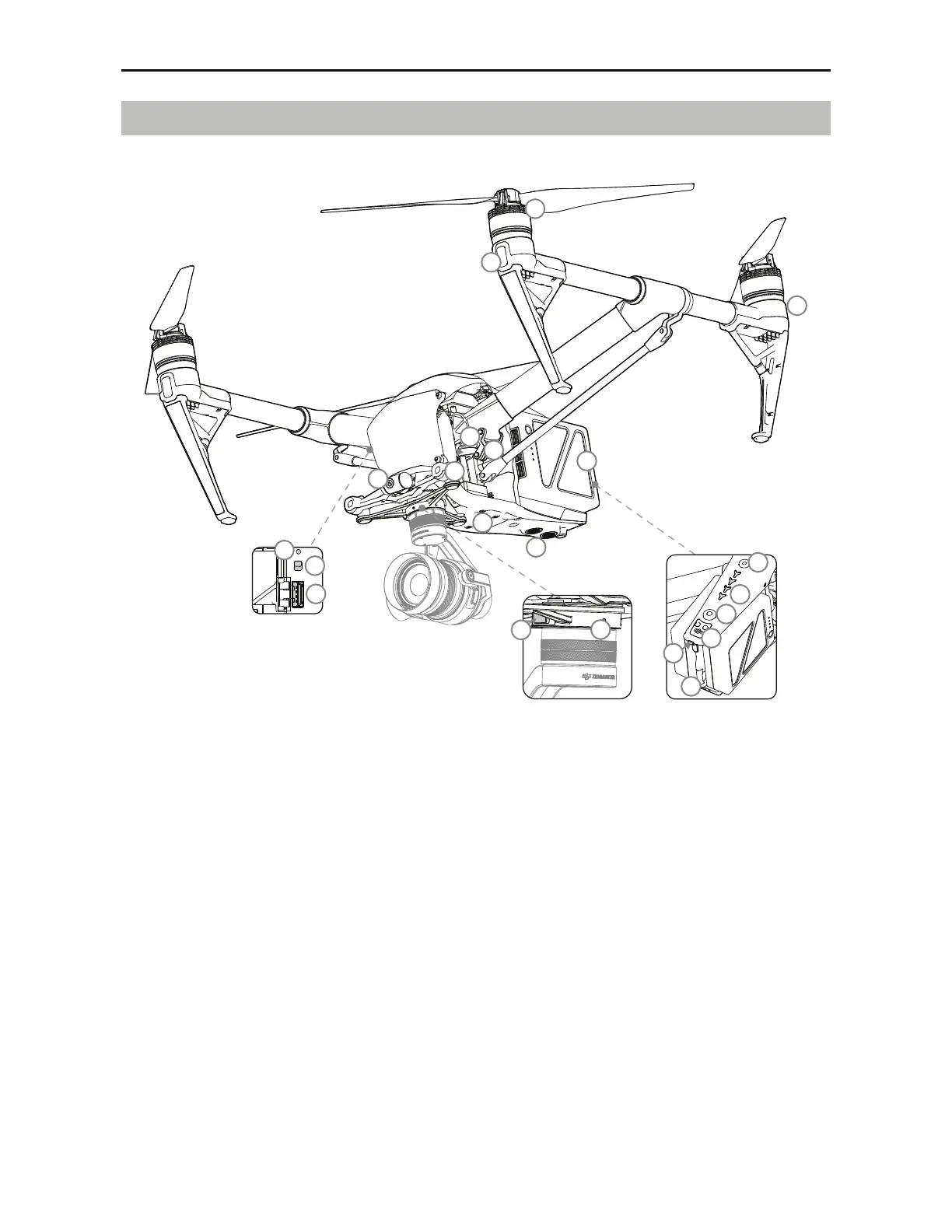

Aircraft Diagram
19
2
0
21
1
11
12
2
5
10
9
7
6
13
14
16
15
18
17
3
4
8
[1] FPV Camera
[2] Forward Vision System
[3] DJI Gimbal Connector V2.0 (DGC2.0)
[4] Gimbal and Camera Detach Button
[5] Downward Vision System
[6] Extended Device Maounting Position
[7] Transformation Mechanism
[8] Control and Processing Center
(with Micro SD Card Slot)
[9] Front LEDs
[10] Propulsion System (with Motors, Propellers, etc.)
[11] Rear LEDs
[12] Intelligent Flight Batteries
[13] Power Button
[14] Battery Level Indicators
[15] Battery Remove Button
[16] Upward Infrared Sensor
[17] Aircraft Status Indicator
[18] DJI CINESSD Slot
[19] Linking Button
[20] USB Mode Switch
[21] USB Port
