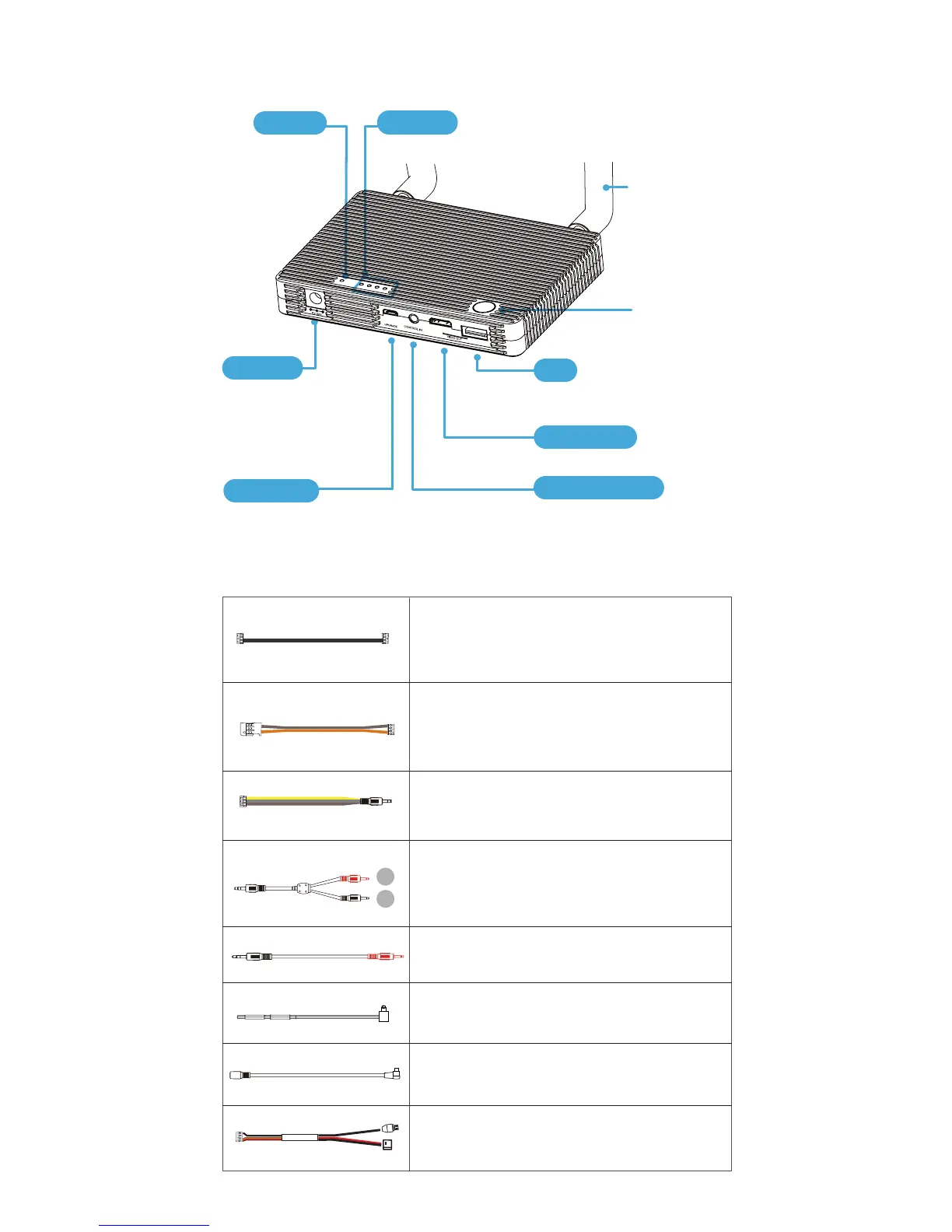

Ground system
Cables
Video link
indicator
Power indicator
Power button
Ground system
antenna
If used with PHANTOM 2, connect cable to
reserved 6-PIN port on central board for air
system power supply and OSD info input.
The air system’s DBUS receiver outputs control
signals. Connect to flight control system DBUS
to receive these signals.
Connect a camera’s AV output to AV input port.
For remote controller training port connection. Connect
red port 1 to a remote controller for aircraft control and
black port 2 to a remote controller for gimbal control.
Remote controller training cable:
Connect the red jack to the aircraft remote
controller to control.
Air system antenna:
Use for connecting the Air system
.
For remote controller training port and remote
controller cable connection.
Connect to Air system GIMBAL port, one end
for power, the other for CAN port.
HD video output
Remote controller port
Firmware upgrade port
HD video output port
(mobile devices / tablets)
Power adapter port
GIMBAL cable: 7PIN
→
6PIN(A)
DBUS cable:
AV cable:
Remote controller cable:
Training port cable:
DIY Power & CAN cable
1
2
VIDEO
POWER
11V~26V
USB
HDMI OUT
CONTROL IN
UPGRADE
To Next Page
