dji LIGHTBRIDGE Quick Start Guide

6 pin port on Phantom 2
central board
Antennas
X2

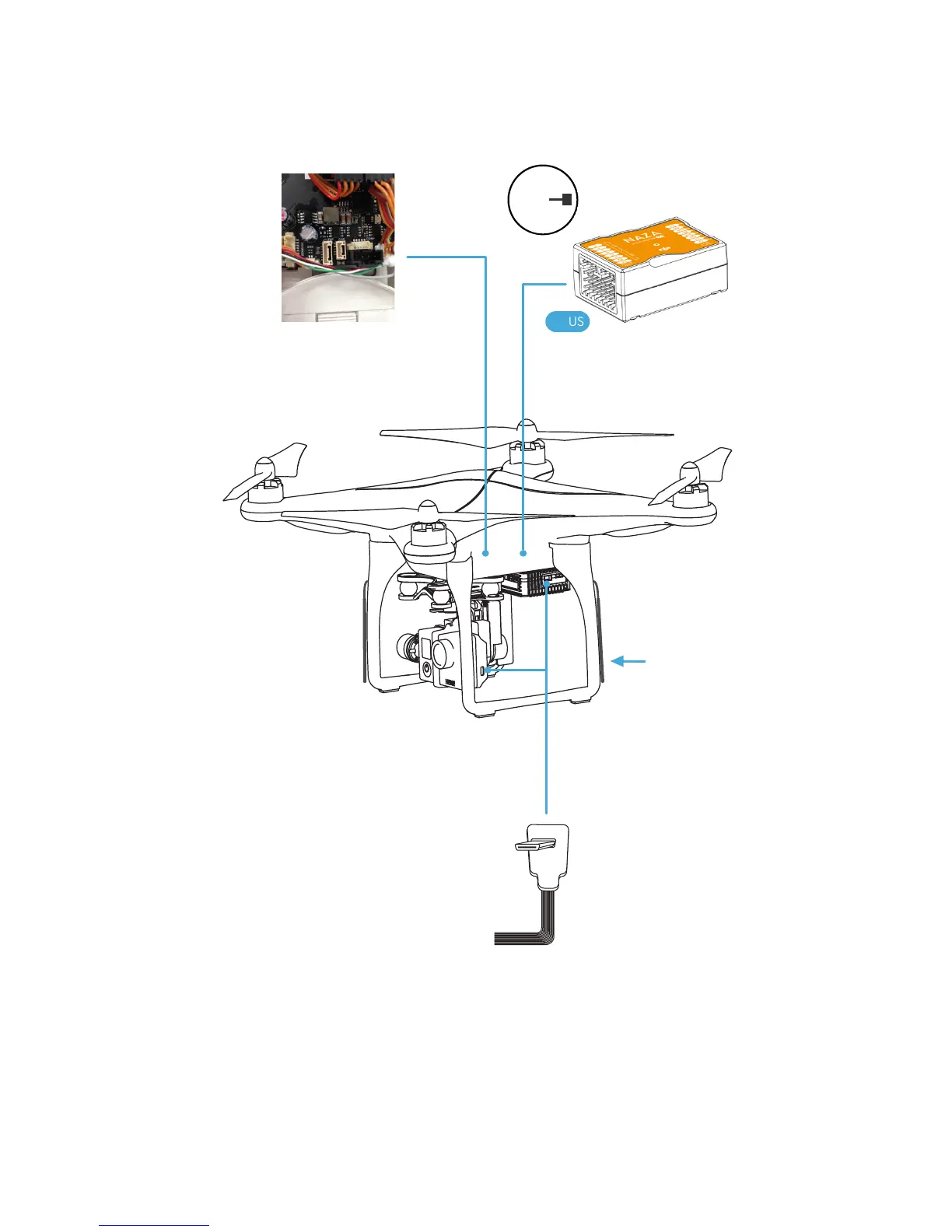

Phantom 2 and GoPro Gimbal Connection
1. Attach air system to the bottom of Phantom 2 as shown above.
2. Install antennas diagonally on landing skids. Ensure both of the antennas
point downward.
3. Connect HDMI port on GoPro with HDMI(In) port on air system with
supplied HDMI cable.
4. Remove Phantom 2 shell, connect the X2 port on Phantom 2 with DBUS
port on air system. Re-install Phantom 2 shell.
5. Connect 6 pin port on Phantom 2 with GIMBAL port on air system with
supplied GIMBAL cable(A).
DBUS
INSTALLATION
HDMI cable

dji LIGHTBRIDGE Specifications

General

Maximum data transfer rate	- Mbit/s
Frequency band	2.4 GHz
Interface	HDMI, AV, USB 2.0
DC-in jack	Yes
Connectivity technology	Wired
Compatible operating systems	Android 4.1.2+
