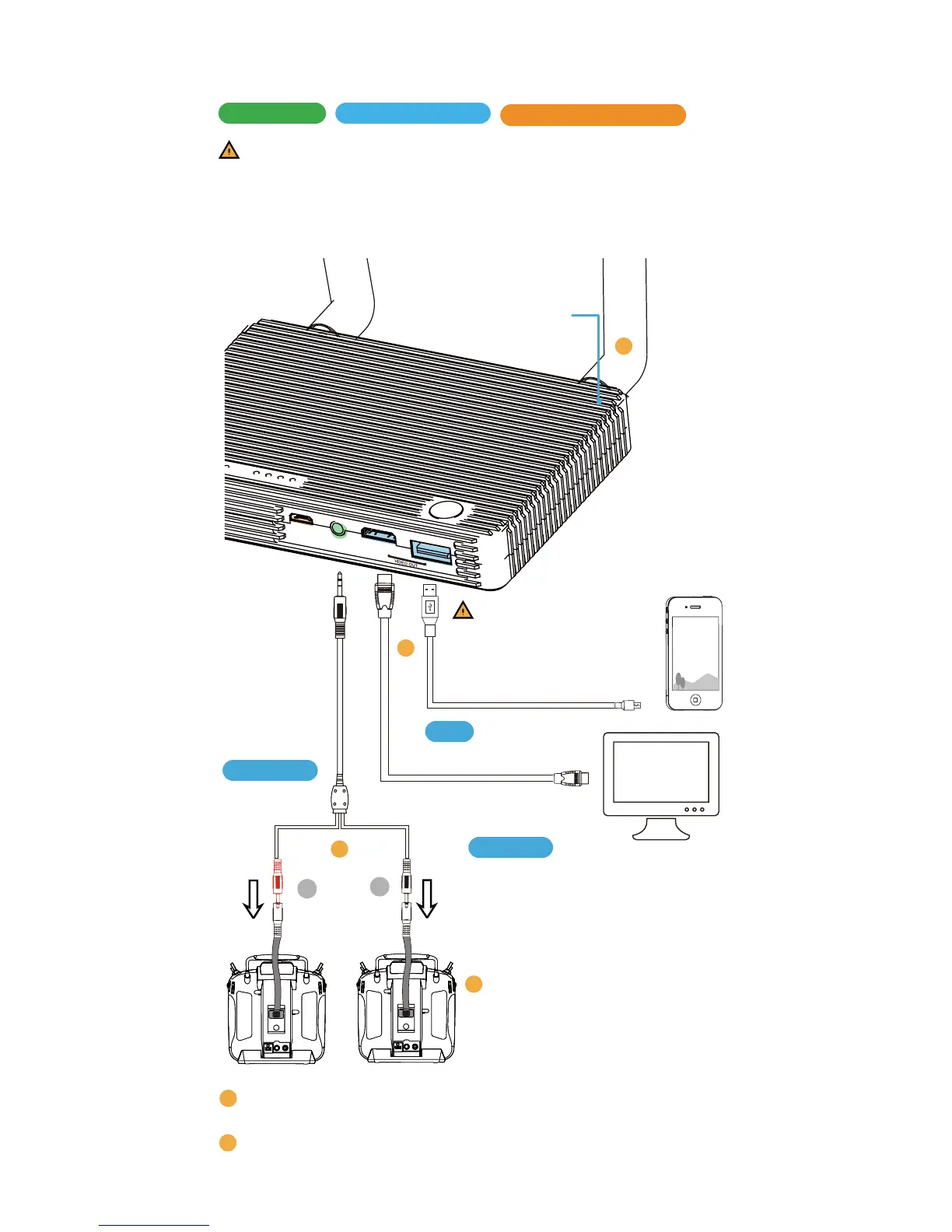

Ground system installation
Compulsory
Mutually Exclusive
Connect when required
HDMI and USB video
output is mutually
exclusive. USB video
output to mobile devices
is recommended.
Connect HDMI supported monitor
to HDMI OUT port in the ground
system for HDMI video viewing.
Connect the training port and the Control In port on the ground system
using the training port cable and remote controller cable.
Disable RF function of the remote control before connecting the remote
control to the ground system via the trainer port by following the
instruction below(based on Futaba remote control):
Hold the “RTN” button and power on the remote control. Enter “POWER
MODE”. Select “RF OFF” mode and press “RTN button” to confirm.
Installing antennas
Note：
Keep antennas pointing skyward
for optimum transmission. Keep
antennas away from metal. We
recommend placing ground system
on DJI remote holder.
B
C
HDMI and USB output is mutually exclusive. HDMI output overrides USB
output.
Dual remote controllers mode only available for DJI HD gimbal.Red
port connects to aircraft and black port connects to gimbal.
USB
HDMI OUT
CONTROL IN
1
2
A
A
B
C
