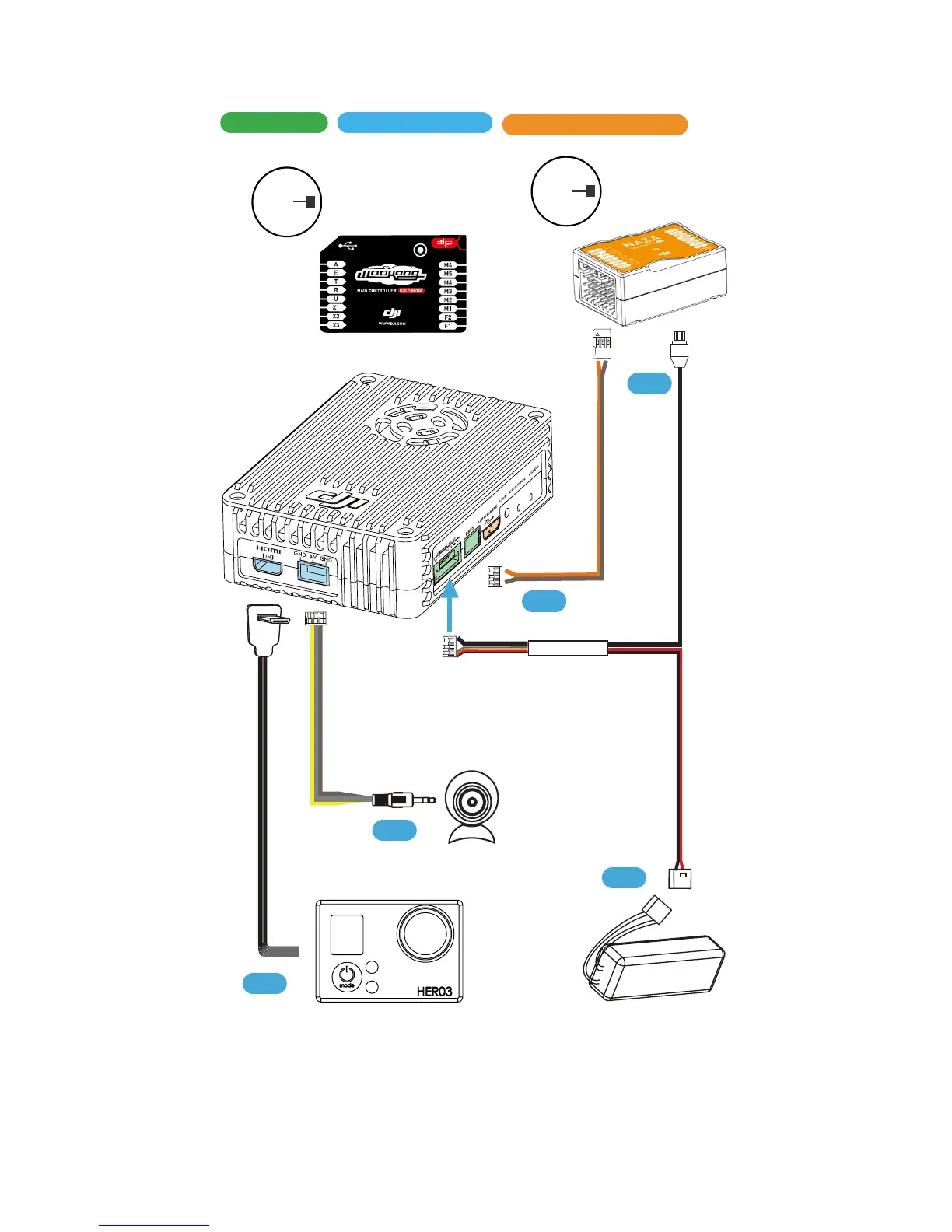

DIY Connection
X2
X2
1. AV and HDMI video input is mutually exclusive.
2. Connect air system DBUS port with X2 port on WK-M or NAZA-M.
3. Power air system with the power cords extracted from GIMBAL cable.
4. Connect GIMBAL cable to the CAN bus on NAZA-M or WK-M.
HDMI
AV
DBUS
Power
CAN
Compulsory
Mutually Exclusive
Connect when required
