dji LIGHTBRIDGE Quick Start Guide

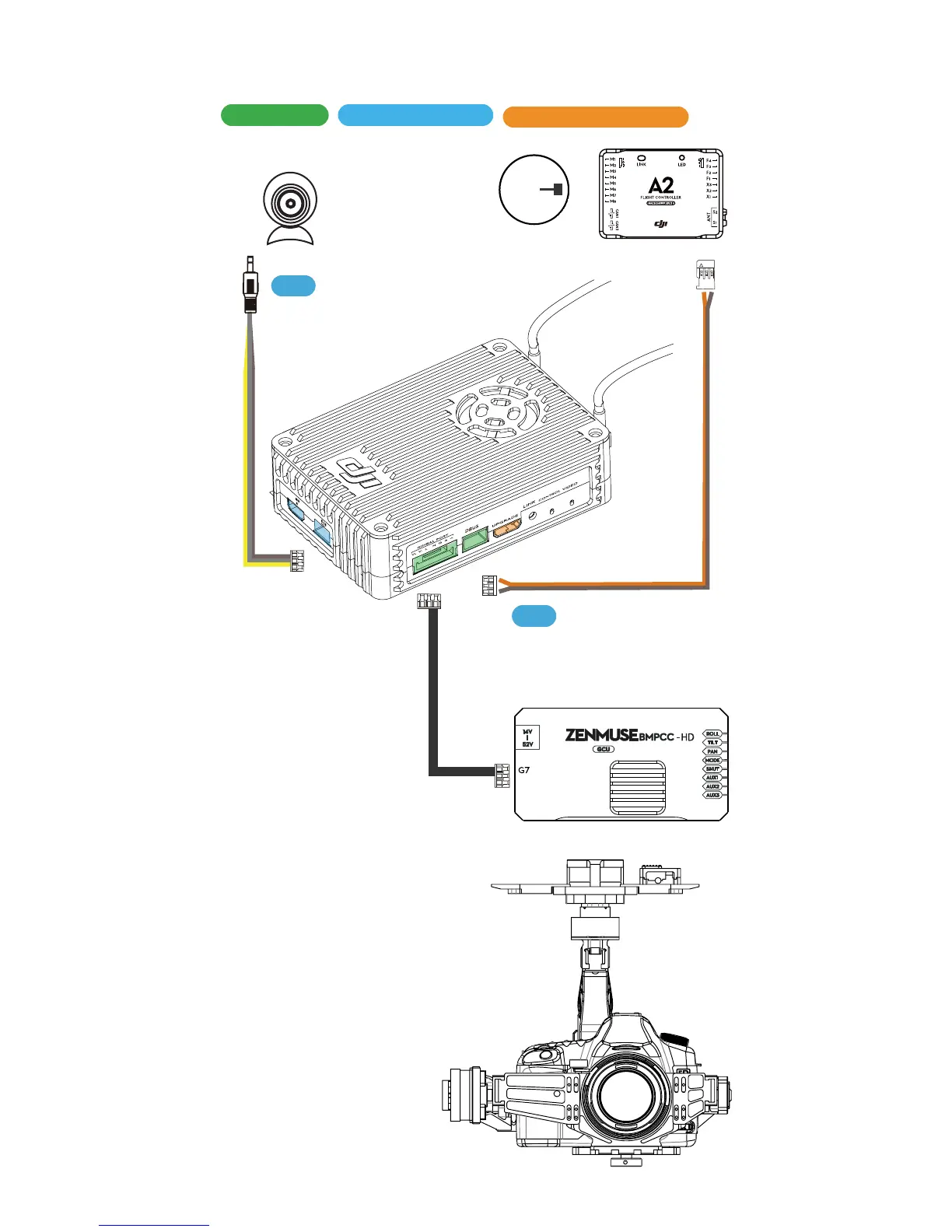

DJI HD Gimbal Connection (BMPCC)
X2
1. Fix the antennas at the
unobstructed position with
the antenna extension cable.
2. Connect DBUS port with
X2 port with supplied
DBUS cable.
3. Connect air system
GIMBAL port with DJI HD
gimbal G7 port with GIMBAL
cable(B).
4. Select either HDMI(IN) or
AV(IN) when using DJI HD
gimbal.
AV
DBUS
Compulsory
Mutually Exclusive
Connect when required

dji LIGHTBRIDGE Specifications

General

Maximum data transfer rate	- Mbit/s
Frequency band	2.4 GHz
Interface	HDMI, AV, USB 2.0
DC-in jack	Yes
Connectivity technology	Wired
Compatible operating systems	Android 4.1.2+
